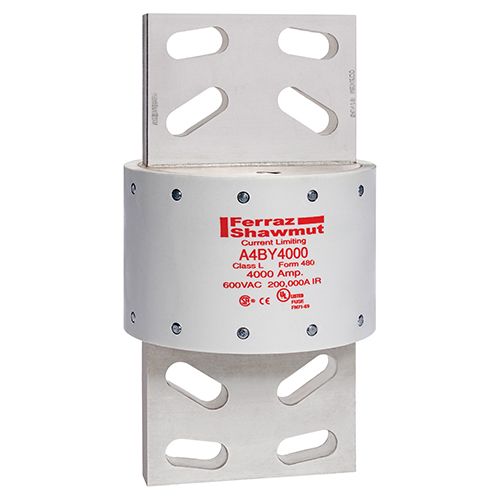

A4BY4000
Fuse Amp-Trap® 600V 4000A Time-Delay Class L A4BY Series
Amp-Trap A4BY fuses have been the industry’s favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
Brand: Amp-Trap®
Add to QuoteSpecifications
| Item Number | A4BY4000 |
|---|---|
| EAN UPC Code | 782001939298 |
| GTIN Sell Pack | 10782001939295 |
| Applications |
|
| Approvals Standards |
|
| Brand Name | Mersen |
| Country Of Origin | MX |
| CSA File Number | Class 1422-02 Guide 012636_0 |
| Features Benefits |
|
| Fuse Class | Class L |
| Max Operating Temp | 80 °C |
| Max Storage Temp | 80 °C |
| Min Storage Temp | -25 °C |
| Product Line | A4BY - Class L - Time-Delay |
| Product Brand | Amp-Trap® |
| Product Family | Fuses |
| Product Group | Low Voltage UL/CSA Fuses |
| Product Type | Class L |
| Speed Characteristic | Time Delay |
| Support Brand | Ferraz Shawmut |
| UL Category Code | JDDZ |
| UL File Number | File E2137 |
| AC Max I R Breaking Capacity I1 | 200 kA |
| Body Insulating Material | GMG |
| Connection Terminal Material | Silver-Plated Copper |
| Connection Terminal Type | Blade |
| Indication System | 0 |
| Mounting | Bolted |
| Product Diameter | 5.75 in |
| Product Length | 10.75 in |
| Product Weight | 25.2 lb |
| Sell Pack Description | Box |
| Sell Pack Height | 5.75 in |
| Sell Pack Length | 11.75 in |
| Sell Pack Width | 6 in |
| Sell Pack Quantity | 1 Each |
| Sell Pack Weight | 26.46 lb |
| Ampere Rating | 4000 A |
| Item Description | L TD FUSE 600V 4000A A4BY |
| Minimum Quantity Per Order | 1 |
| Order Multiple | 1 |
| Rated Voltage AC UL | 600 V |
| Rated Voltage DC UL | 300 V |
| Short Description | Fuse Amp-Trap® 600V 4000A Time-Delay Class L A4BY Series |
| Suitable For Outdoor Use | 0 |
| Suitable For Outdoor Use | 0 |
