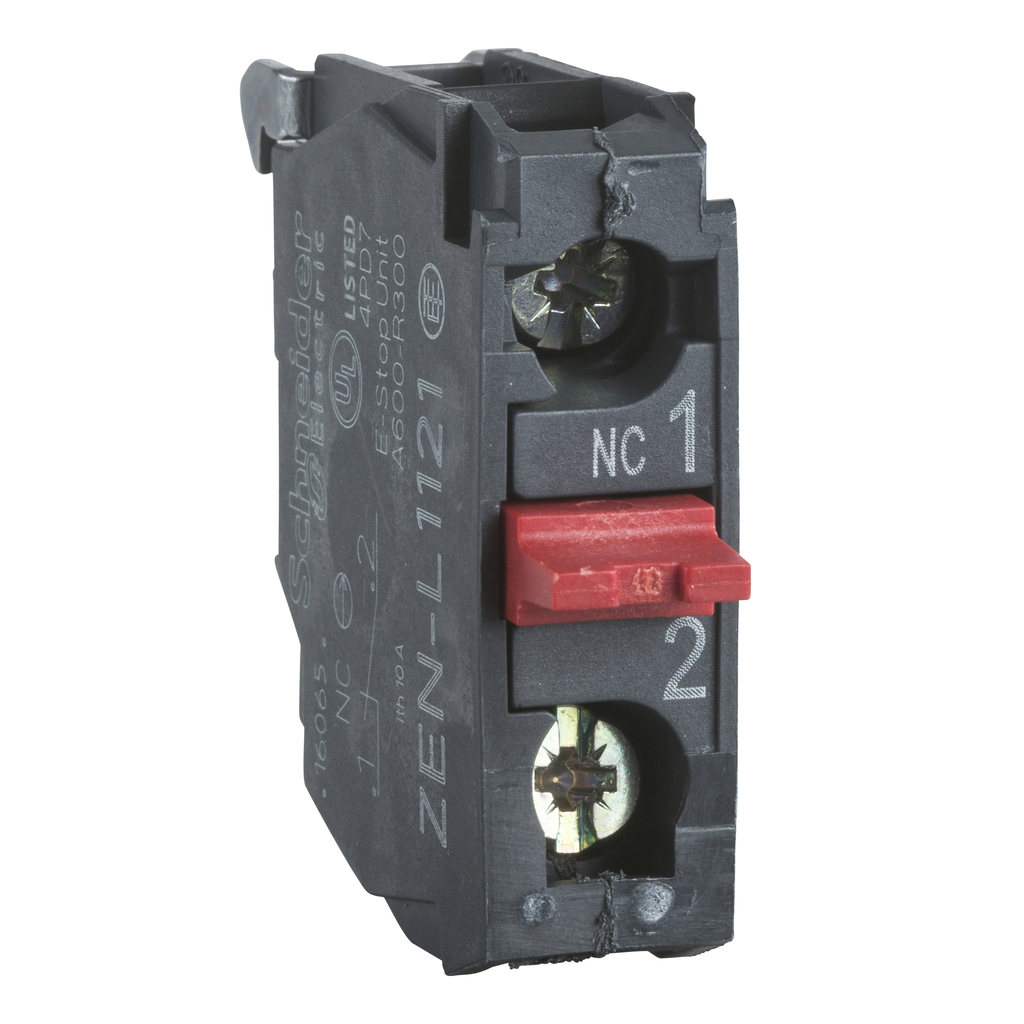

ZENL1121TQ – Contact block, Harmony XAL, XAPS, single contact, silver alloy, rear mounting, screw clamp terminal, 1NC
ZENL1121TQ
Contact block, Harmony XAL, XAPS, single contact, silver alloy, rear mounting, screw clamp terminal, 1NC

This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is easily installed and replaced on XB5 complete push-button units and selector switches and XAPS control station and connects to control circuits with simple screw-clamp connections It is sold by 100 units

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ambient Air Temperature For Operation -40-70 °C
Standards
  • JIS C8201-5-1
  • IEC 60947-1
  • UL 508
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-5-5
  • IEC 60947-5-4
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 12-500 Hz)IEC 60068-2-6
Ip Degree Of Protection IP20 IEC 60529
Ambient Air Temperature For Storage -40-70 °C
Protective Treatment TH
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Operating Force 2 N NC changing electrical state
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 4.3 mm total travel)
Maximum Resistance Across Terminals 25 MOhm
Contacts Material silver alloy (Ag/Ni)
Positive Opening with IEC 60947-5-1 appendix K
Electrical Composition Code
  • SR1 3 )
  • SR2 2 )
  • MR1 2 )
[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Contact Operation slow-break
Assembly Style for customer assembly
Mechanical Durability 10000000 cycles
Additional Information mounting on integrated plate in the box
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Country of Origin France
Product Destination
  • for XAPS control station
  • for XB5 Ø 22 mm control and signalling units
Mounting Of Block rear mounting
Range Of Product
  • Harmony XAL
  • Harmony XAPS
Product Or Component Type contact block
Contacts Type And Composition 1 NC
Sale Per Indivisible Quantity 100
Device Short Name ZENL
