ZENL1111TQ - Contact block, Harmony XAL, XAPS, single contact, silver alloy, rear mounting, screw clamp terminal, 1NO

ZENL1111TQ

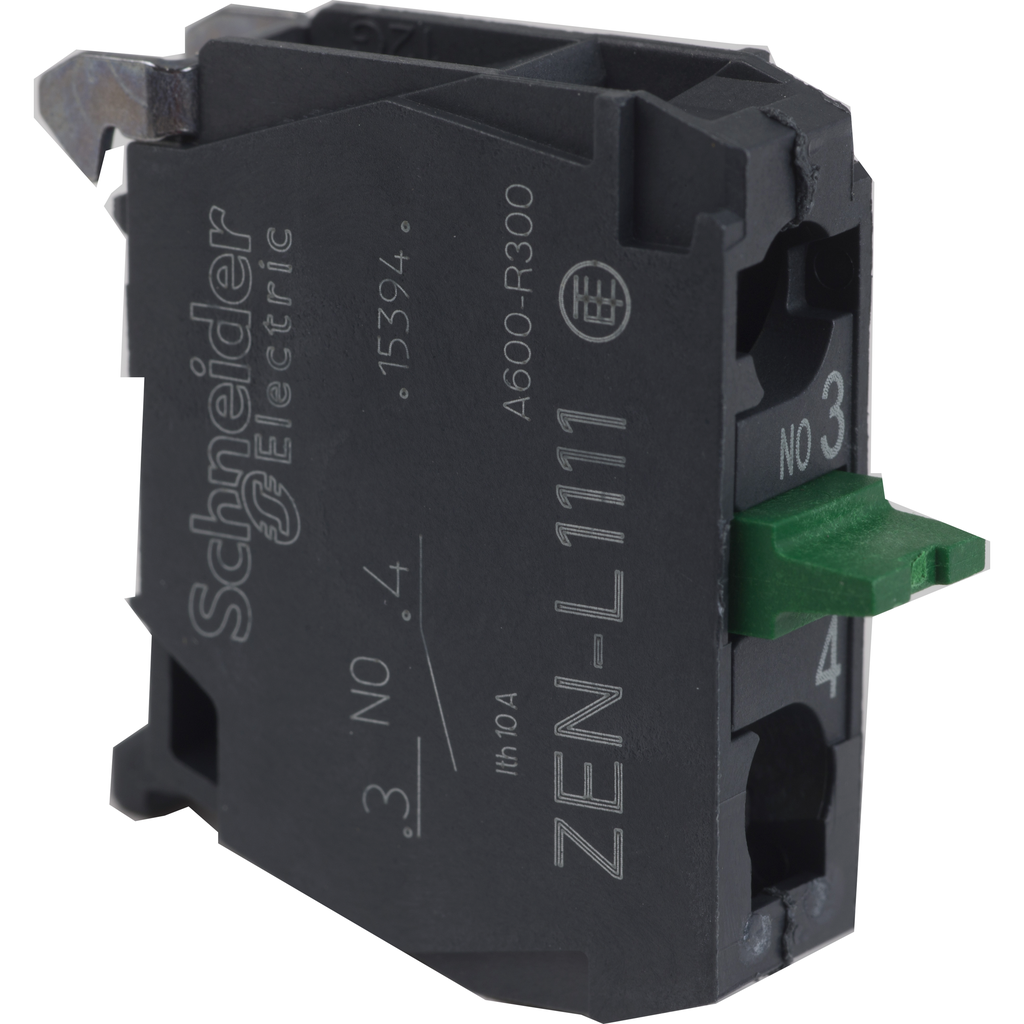

Contact block, Harmony XAL, XAPS, single contact, silver alloy, rear mounting, screw clamp terminal, 1NO

This Harmony ZENL1111TQ is a contact block ZENL1111 sold by 100 for Harmony XAL and XAPS range.

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-40-70 °C
Standards	IEC 60947-5-1 IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-5-4 IEC 60947-5-5 UL 508 JIS C8201-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	5 gn 12-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP20 IEC 60529
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TH
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Operating Force	2.3 N NO changing electrical state
Short-Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Operating Travel	2.6 mm NO changing electrical state) 4.3 mm total travel)
Maximum Resistance Across Terminals	25 MOhm
Contacts Material	silver alloy (Ag/Ni)
Positive Opening	without
Electrical Composition Code	SR1 3 ) SR2 2 ) MR1 2 )
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Operating Torque	0.05 N.m NO changing electrical state
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Contact Operation	slow-break
Assembly Style	for customer assembly
Mechanical Durability	10000000 cycles
Additional Information	mounting on integrated plate in the box
Electrical Reliability	λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head	cross Philips no 1 cross pozidriv No 1 slotted flat Ø 4 mm slotted flat Ø 5.5 mm
Country of Origin	France
Product Destination	for XB5 Ø 22 mm control and signalling units for XAPS control station
Mounting Of Block	rear mounting
Range Of Product	Harmony XAL Harmony XAPS
Product Or Component Type	contact block
Contacts Type And Composition	1 NO
Sale Per Indivisible Quantity	100
Device Short Name	ZENL
