Home > Schneider Electric > Automation & Control > Pilot Devices > Accessories > ZENL1111 – Harmony, 22mm Push Button, contact block, panel mount, 1 NO, screw clamp terminal

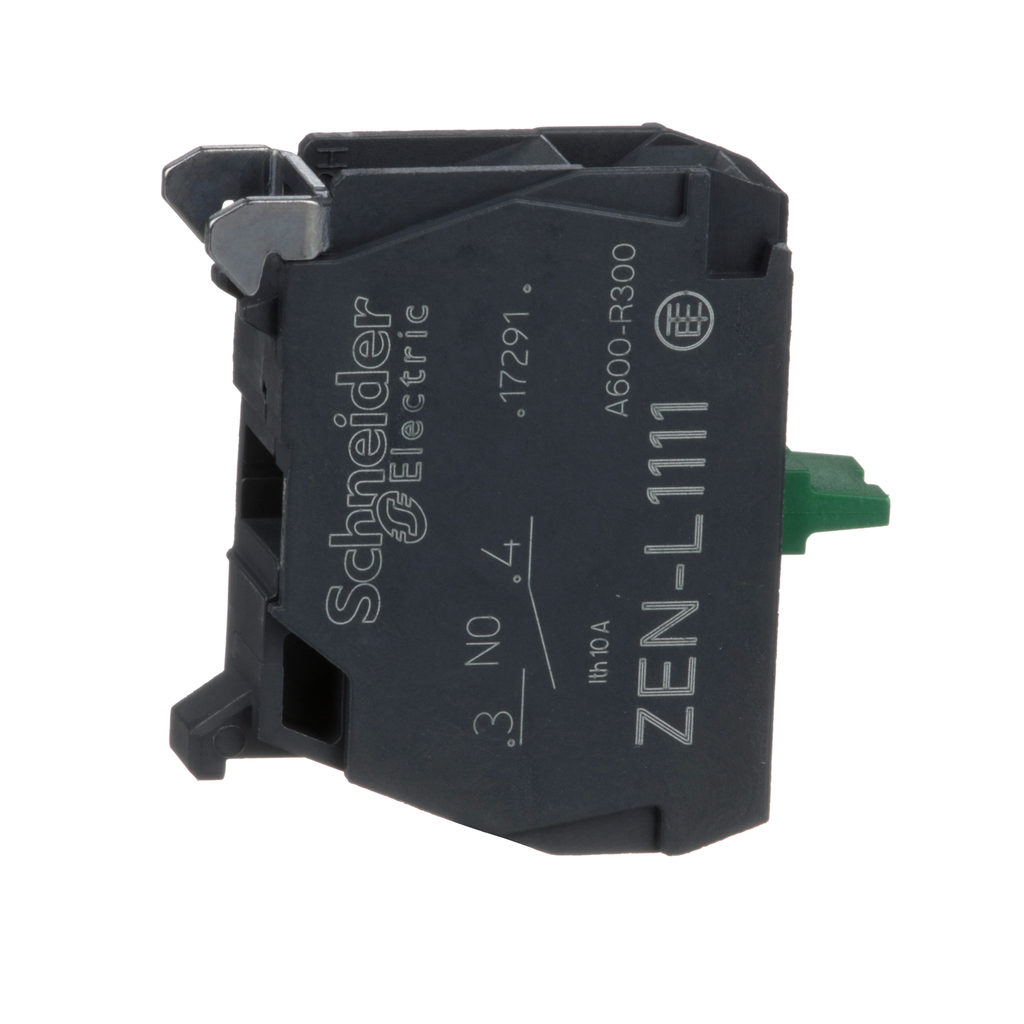

ZENL1111 – Harmony, 22mm Push Button, contact block, panel mount, 1 NO, screw clamp terminal
ZENL1111
Harmony, 22mm Push Button, contact block, panel mount, 1 NO, screw clamp terminal

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Destination
  • for XB5 Ø 22 mm control and signalling units
  • for XAPS control station
Mounting Of Block rear mounting
Range Of Product
  • Harmony XAL
  • Harmony XAPS
Product Or Component Type contact block
Contacts Type And Composition 1 NO
Sale Per Indivisible Quantity 5
Device Short Name ZENL
Warranty 18 months
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force 2.3 N NO changing electrical state
Operating Travel
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Maximum Resistance Across Terminals 25 MOhm
Contacts Material silver alloy (Ag/Ni)
Positive Opening without
Electrical Composition Code
  • SR1 3 )
  • SR2 2 )
  • MR1 2 )
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Net Weight 0.015 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1
Operating Torque 0.05 N.m NO changing electrical state
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Contact Operation slow-break
Assembly Style for customer assembly
Mechanical Durability 10000000 cycles
Additional Information mounting on integrated plate in the box
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4
Tightening Torque 0.8-1.2 N.m EN 60947-1
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1808008EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1808008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation -40-70 °C
Standards
  • EN/IEC 60947-5-1
  • CSA C22.2 No 14
  • EN/IEC 60947-1
  • UL 508
  • EN/IEC 60947-5-5
  • JIS C8201-5-1
  • EN/IEC 60947-5-4
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 12-500 Hz)IEC 60068-2-6
Ip Degree Of Protection IP20 IEC 60529
Ambient Air Temperature For Storage -40-70 °C
Protective Treatment TH
