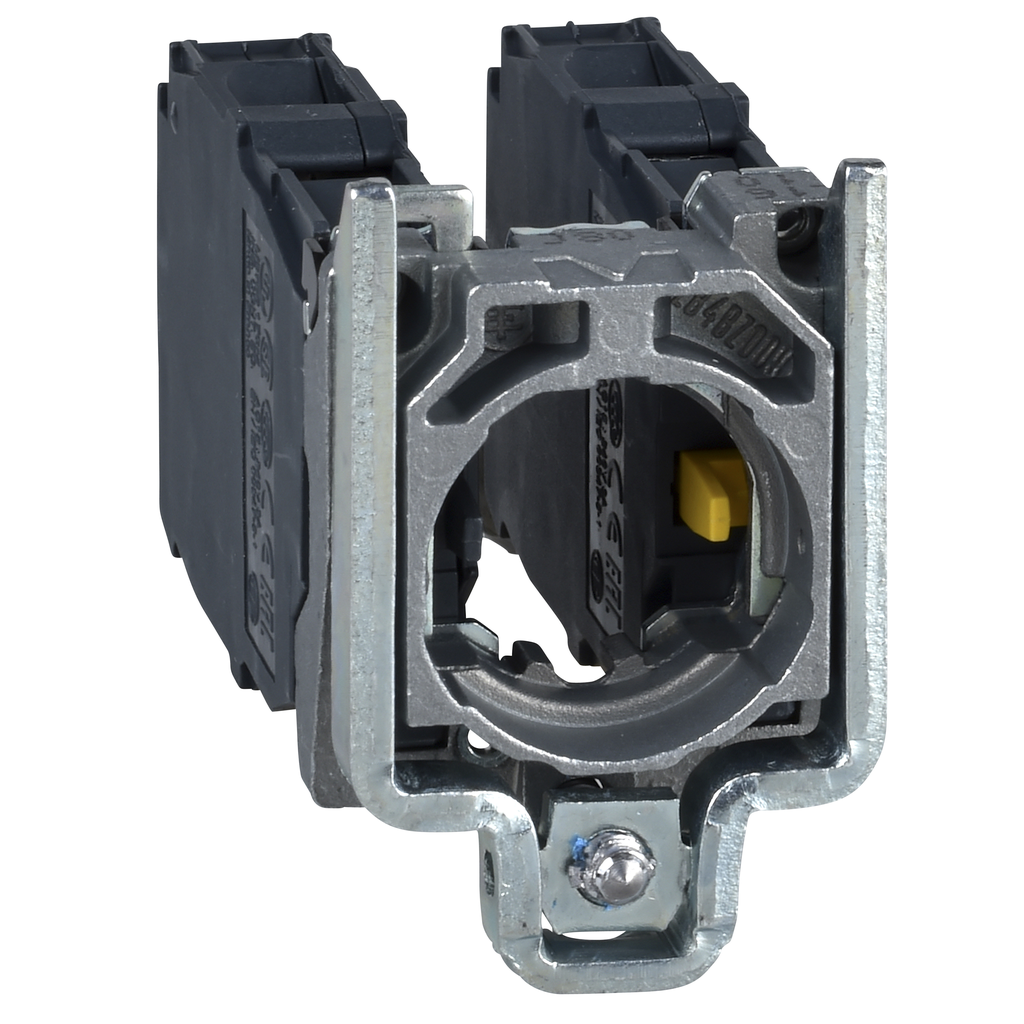

Contact block with body fixing collar for 4 direction joystick controller, Harmony XB4
This Harmony XB4 contact block operates with 4 directions and uses screw-clamp terminals. It has a chromium-plated metal bezel. This contact block is pre-mounted to a body fixing collar and allow fast and easy replacement and configuration of your joystick controllers with 4-direction operation. It is easily installed and replaced on XB4 complete joystick controllers and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | complete body/contact assembly for joystick controller |
| Fixing Collar Material | zamak |
| Connections - Terminals |
|
| Contacts Type And Composition | 4 NO |
| Sale Per Indivisible Quantity | 1 |
| Contact Operation | slow-break |
| Device Short Name | ZD4 |
| Warranty | 18 months |
| Contacts Usage | standard |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | without |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Net Weight | 0.058 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Cad Overall Height | 47 mm |
| Device Presentation | basic element |
| Electrical Durability |
|
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 1000000 cycles |
| Electrical Reliability |
|
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Cad Overall Width | 30 mm |
| Shape Of Screw Head |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class I IEC 60536 |
