ZBRT2

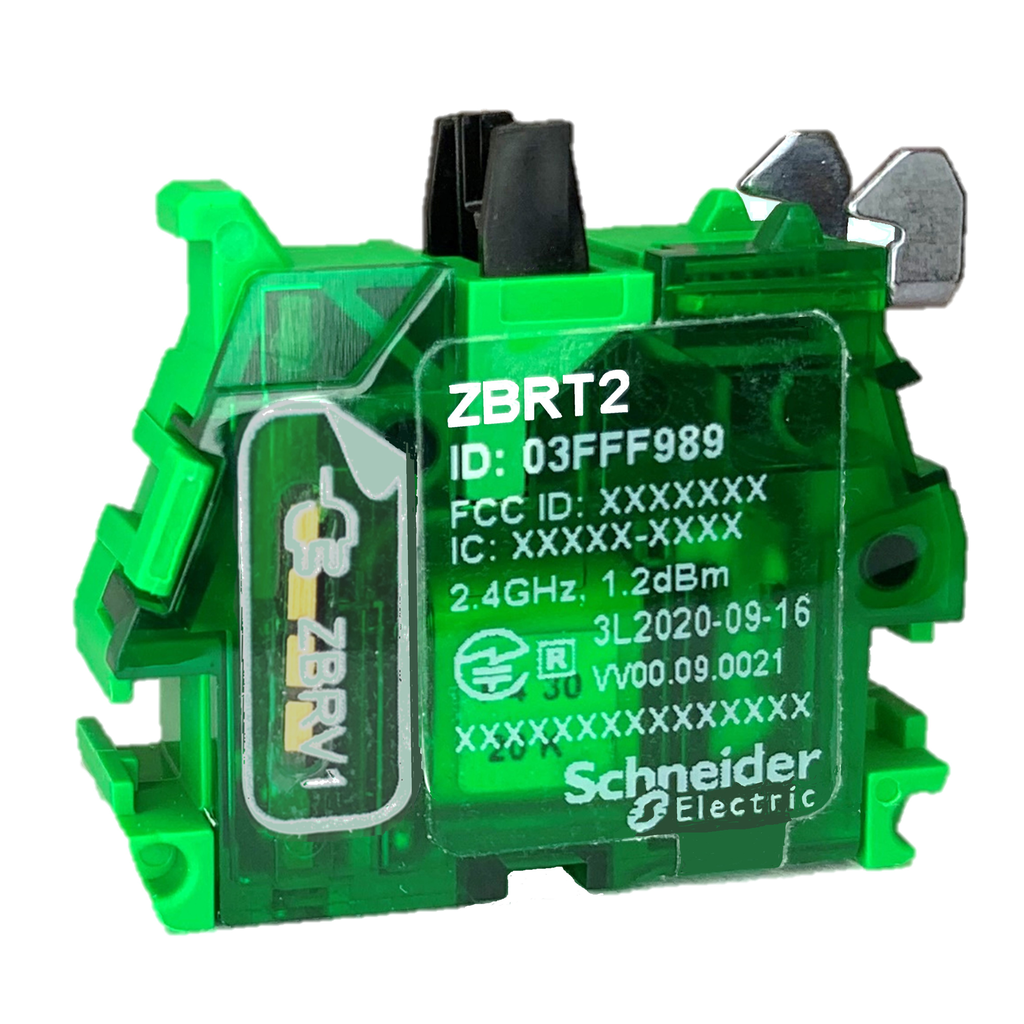

Transmitter for wireless and batteryless push button, Harmony XB5R, plastic, black, double action
This transmitter is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a transmitter for wireless and batteryless pushbutton. It provides 1 radio frame sent at the push of the button and 1 radio frame sent at the release of the button. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 25g. This transmitter is only compatible with receiver ZBRRp version greater than or equal to 2.0, relay antenna ZBRA1 version greater than or equal to 2.0, and access point ZBRNp version greater than 1.2.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP2009013EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2009013EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Silicon Free | Yes |
| Country of Origin | France |
| Width | 30 mm |
| Height | 41.5 mm |
| Weight | 0.025 kg |
| Antenna Type | omnidirectional |
| Range Of Product | Harmony XB5 |
| Transmission Frequency | 2405 MHz |
| Mounting Diameter | 22 mm |
| Product Or Component Type | wireless and batteryless transmitter |
| Level Or Class | 5M00G7W |
| Bezel Material | plastic |
| Device Short Name | XB5R |
| Mechanical Robustness | free fall resistance 1000 mm IEC 60068-2-32 |
| Operating Force | 10 N C/O changing electrical state |
| Modulation Technique | O-QPSK |
| Standards |
|
| Embedding Depth | 42 mm |
| Operating Travel | 4.3 mm total travel) |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| Electrical Composition Code | PW1 |
| Acquisition Time | 2 ms |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Response Time | < 2 ms |
| Antenna Gain | 0 dBi |
| Net Weight | 0.025 kg |
| Cad Overall Height | 41.5 mm |
| Maximum Sensing Distance |
|
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 16 |
| Radio Agreement |
|
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 43 mm |
| Bandwidth | 5-5 MHz |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Electromagnetic Compatibility |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Ip Degree Of Protection | IP30 IEC 60529 back face) |
| Directives |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 95-95 % -40-70 °C without condensation |
| Mechanical Durability | 400000 cycles |
