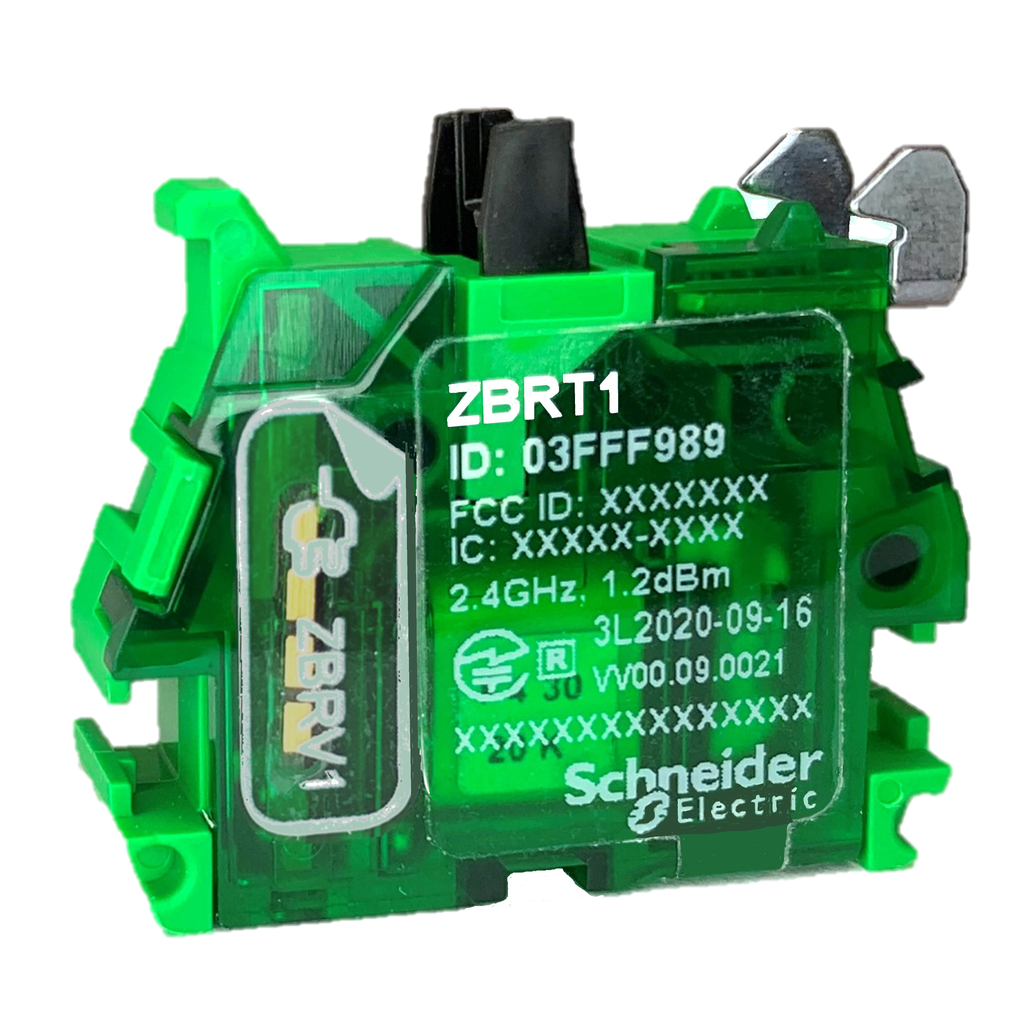

ZBRT1 - Transmitter for wireless and batteryless push button, Harmony XB5R, plastic, black

ZBRT1

Transmitter for wireless and batteryless push button, Harmony XB5R, plastic, black

This transmitter is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a transmitter for wireless and batteryless pushbutton. It provides 1 radio frame sent at the push of the button. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 25g.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CSA GOST CCC C-tick UL BT 2006/95/EC
Ik Degree Of Protection	IK03 conforming to IEC 50102
Ambient Air Temperature For Operation	-40-70 °C
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Shock Resistance	25 gn 6 ms) 6000 shocks IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	5 gn 11-500 Hz)IEC 60068-2-6 +/- 10 mm 2-11 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP30 IEC 60529 back face)
Directives	1999/5/EC - R&TTE directive 2004/108/EC - electromagnetic compatibility
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	95-95 % -40-70 °C without condensation
Mechanical Durability	1000000 cycles
Warranty	18 months
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP2009013EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2009013EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Silicon Free	Yes
Mechanical Robustness	free fall resistance 1000 mm IEC 60068-2-32
Operating Force	10 N C/O changing electrical state
Modulation Technique	O-QPSK
Standards	CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1 UL 508
Embedding Depth	42 mm
Operating Travel	4.3 mm total travel)
Fixing Mode	fixing nut beneath head 2-2.4 N.m
Electrical Composition Code	PW1
Acquisition Time	2 ms
Communication Port Protocol	Zigbee green power 2.4 GHz IEEE 802.15.4
Response Time	< 2 ms
Antenna Gain	0 dBi
Net Weight	0.025 kg
Cad Overall Height	41.5 mm
Maximum Sensing Distance	100 m in free field 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Max Power Consumption In W	1 mW
Number Of Channels	16
Radio Agreement	ANATEL ARIB T66 FCC ICASA RSS
Cad Overall Width	30 mm
Cad Overall Depth	43 mm
Bandwidth	5-5 MHz
Country of Origin	France
Width	30 mm
Height	41.5 mm
Weight	0.025 kg
Antenna Type	omnidirectional
Range Of Product	Harmony XB5
Transmission Frequency	2405 MHz
Mounting Diameter	22 mm
Product Or Component Type	wireless and batteryless transmitter
Level Or Class	5M00G7W
Bezel Material	plastic
Device Short Name	XB5R

Transmitter for wireless and batteryless push button, Harmony XB5R, plastic, black
