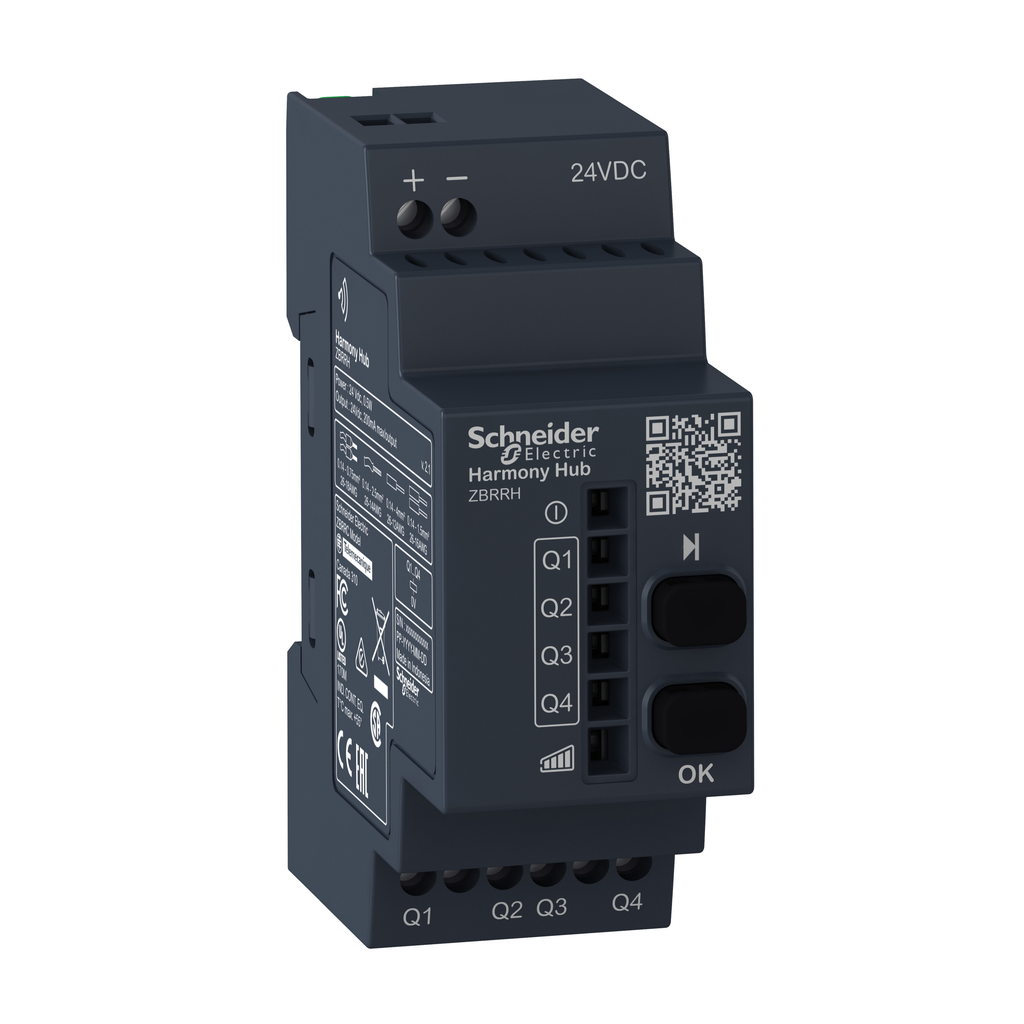

ZBRRH
Wireless Receiver, Harmony XB5R, 4 PNP, 2 pusbuttons, LED, 200mA, 24V DC
Specifications
| Product Certifications |
|
|---|---|
| Standards | EN/IEC 60947-5-1 |
| Electromagnetic Compatibility |
|
| Shock Resistance | 10 gn 16 ms) 6000 shocks IEC 60068-2-27 |
| Marking | CE |
| Vibration Resistance |
|
| Insulation Resistance | > 500 MOhm 500 V DC NF C 20-030 |
| Ip Degree Of Protection |
|
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | III IEC 60664-1 |
| Relative Humidity | 90-90 % -20-55 °C, without condensation ETSI EN 300 440-1 |
| Radio Agreement |
|
| [Ui] Rated Insulation Voltage | 60 V IEC 60664-1 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP101106EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1103010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Electrical Connection |
|
| [Us] Rated Supply Voltage | 24 V DC - 15...20 % |
| Height | 108 mm |
| Maximum Switching Current | 0.2 mA DC |
| Short-Circuit Protection | 0.4 A fuse fast blow |
| Modulation Technique | O-QPSK |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV |
| Status Led |
|
| Channels Utilisation | 1 Harmony Hub per receiver |
| Output Contacts | 4 PNP |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Maximum Voltage Drop | <2 V DC 2 A |
| Response Time | < 30 ms after transmitter clicks |
| Operating Position | any position without derating |
| Antenna Gain | 0 dBi |
| Utilisation Category | DC-13 EN/IEC 60947-5-1 |
| Net Weight | 0.13 kg |
| Time Delay Range | 0.5 s - 15...15 %) |
| Surge Withstand |
|
| Minimum Switching Current | 10 mA 5 V DC |
| Rated Short-Duration Power Frequency Withstand Voltage | 1 kV 50 Hz EN/IEC 60947-5-1 |
| Maximum Sensing Distance |
|
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Breaking Capacity | 4.8 W per output) |
| Mounting Support |
|
| Housing Material | self-extinguishing plastic |
| Width | 36 mm |
| Output Type | transistor PNP |
| Depth | 75 mm |
| Tightening Torque | 0.5-1 N.m EN/IEC 60947-1 |
| Maximum Power Consumption In W | 20 W DC |
| Maximum Power Consumption In Va | 20 VA DC |
| Bandwidth | 5-5 MHz |
| Country of Origin | Indonesia |
| Width | 36 mm |
| Height | 108 mm |
| Weight | 0.13 kg |
| Antenna Type | omnidirectional |
| Range Of Product | Harmony |
| Transmission Frequency | 2405 MHz |
| Product Or Component Type | wireless receiver |
| Reset Time | 2 ms time delay |
| Level Or Class | 5M00G7W |
| Product Specific Application | interface to Harmony hub |
| Function Of Module | bi-stable |
| Device Short Name | ZBRRH |
