ZBRRD – Programmable receiver – 2 relays – 24..240 V AC/DC – 2 pusbuttons – 6 LEDs
ZBRRD
Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs

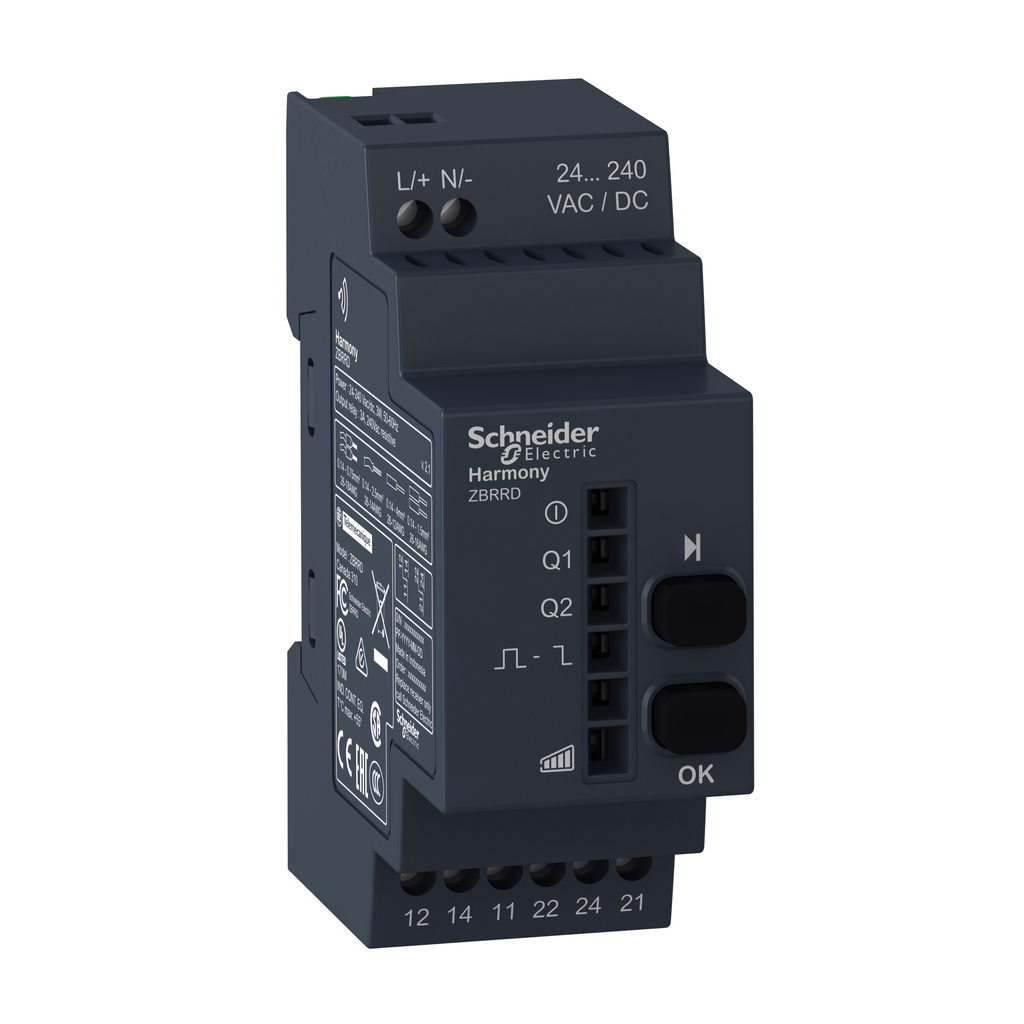

This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. Its supply voltage is 24V to 240V AC/DC.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • CCC
  • UL
  • GOST
  • CSA
  • C-tick
Standards
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • UL 508
  • IEC 60947-1
Electromagnetic Compatibility
  • immunity for industrial environments conforming to IEC 61000-6-2
  • conducted and radiated emissions class B conforming to CISPR 22
  • electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
  • electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
  • susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3
  • susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3
  • electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4
  • electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4
  • 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5
  • conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6
  • immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11
  • radiated emission conforming to ETSI EN 300 440-1
  • conducted emission conforming to EN 300-489-1
  • conducted emission conforming to ETSI EN 300 489-3
  • radiated emission conforming to ETSI EN 300 440-2
Shock Resistance 10 gn 16 ms) 6000 shocks IEC 60068-2-27
Marking CE
Vibration Resistance
  • +/- 7.5 mm 5-14 Hz)IEC 60068-2-6
  • 2 gn 8-150 Hz)IEC 60068-2-6
Insulation Resistance > 500 MOhm 500 V DC NF C 20-030
Ip Degree Of Protection
  • IP20 IEC 60529 casing)
  • IP20 terminals)
Pollution Degree 2 IEC 60664-1
Ambient Air Temperature For Storage -40-70 °C
Overvoltage Category II IEC 60664-1
Relative Humidity 90-90 % -20-55 °C, without condensation ETSI EN 300 440-1
Mechanical Durability 1000000 cycles
Radio Agreement
  • RSS
  • SRRC
  • ANATEL
  • ARIB T66
  • FCC
  • ICASA
Electrical Durability 100000 cycles
[Ui] Rated Insulation Voltage 250 V IEC 60664-1
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP101106EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1103010EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Connection
  • 1 conductor cable 0.14-2.5 mm² - AWG 26...AWG 14 - solid - without cable end IEC 60947-1
  • 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - solid - without cable end IEC 60947-1
  • 1 conductor cable 0.14-4 mm² - AWG 26...AWG 12 - flexible - with cable end IEC 60947-1
  • 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - flexible - with cable end IEC 60947-1
[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz - 10...10 %
Height 108 mm
Maximum Switching Current 5 mA AC/DC
Short-Circuit Protection 0.4 A fuse fast blow
Modulation Technique O-QPSK
[Uimp] Rated Impulse Withstand Voltage 4 kV
Status Led
  • 1 LED Green power ON
  • 2 LEDs Green relay ON
  • 2 LEDs Green function mode
  • 1 LED green and yellow reception signal
Output Contacts 2 C/O
Communication Port Protocol Zigbee green power 2.4 GHz IEEE 802.15.4
Switching Capacity In Va 1250 VA
Response Time < 30 ms after transmitter clicks
Operating Position any position without derating
Antenna Gain 0 dBi
Utilisation Category
  • AC-15 : B300 IEC 60947-5-1
  • DC-12 IEC 60947-5-1
Net Weight 0.13 kg
Maximum Switching Voltage 250 V AC/DC
Time Delay Range 0.5 s - 15...15 %)
Nominal Output Current
  • 0.3 A 48 V DC IEC 60947-5-1
  • 3 A 24 V DC UL 508
  • 1.5 A 240 V AC IEC 60947-5-1
  • 3 A 120 V AC IEC 60947-5-1
  • 3 A 240 V AC UL 508
  • 3 A 24 V DC CSA C22.2 No 14
  • 3 A 240 V AC CSA C22.2 No 14
Input Output Isolation galvanic isolation
Surge Withstand
  • 1 kV differential mode IEC 61000-4-5
  • 2 kV common mode IEC 61000-4-5
Rated Short-Duration Power Frequency Withstand Voltage 1.5 kV 50 Hz IEC 60947-5-1
Maximum Sensing Distance
  • 100 m in free field
  • 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure
  • 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Max Power Consumption In W 1 mW
Number Of Channels 1
Mounting Support
  • 35 mm symmetrical DIN rail conforming to IEC 60715
  • mounting plate
Housing Material self-extinguishing plastic
Breaking Capacity 750 VA
Control Circuit Frequency 50...60 Hz +/- 10 %
Width 36 mm
Output Type 2 relays
Depth 75 mm
Tightening Torque 0.5-1 N.m IEC 60947-1
Maximum Power Consumption In W 4 W AC/DC
Bandwidth 5-5 MHz
Country of Origin Indonesia
Width 36 mm
Height 108 mm
Weight 0.13 kg
Antenna Type omnidirectional
Range Of Product Harmony
Transmission Frequency 2405 MHz
Product Or Component Type programmable receiver
Reset Time 2 ms time delay
Level Or Class 5M00G7W
Product Specific Application interface to actuators
Function Of Module
  • bi-stable
  • monostable
Device Short Name ZBRRD
