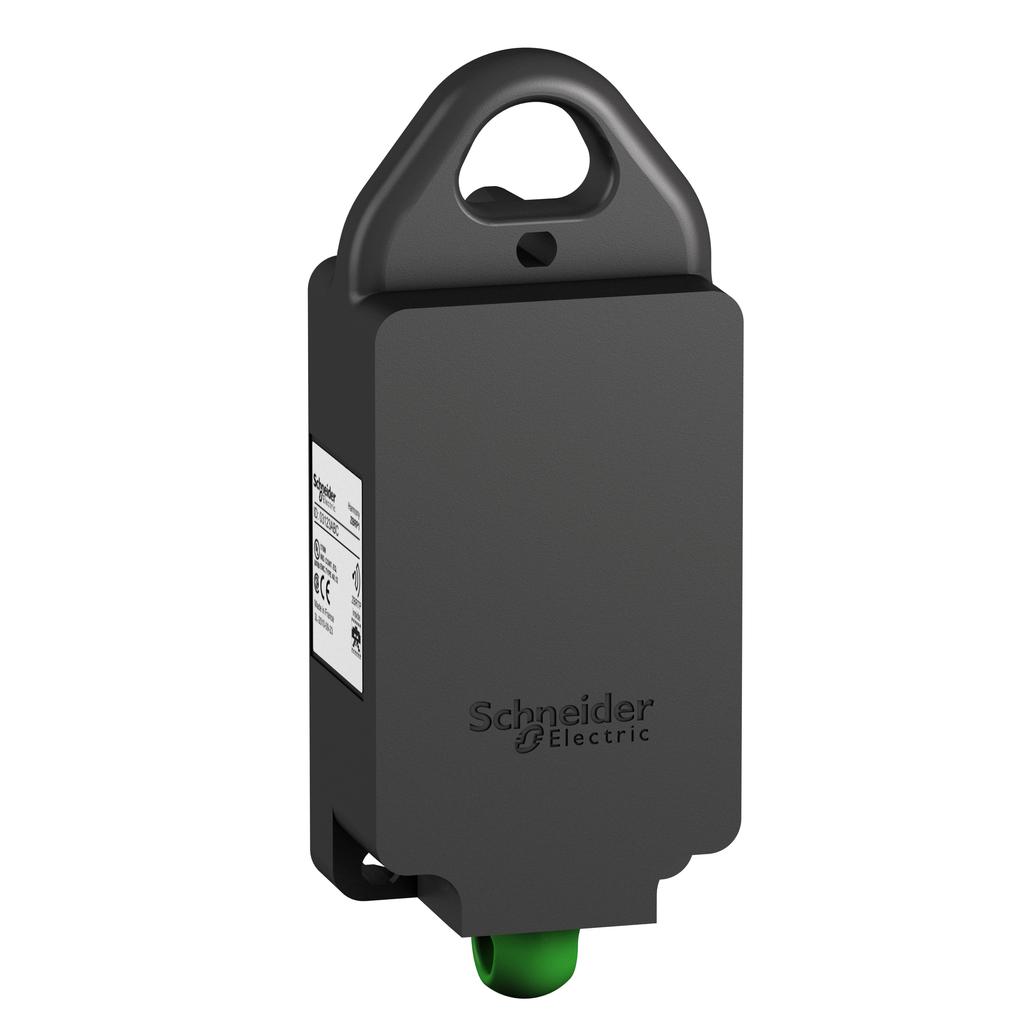

ZBRP1
Rope pull switch with wireless and batteryless transmitter, Harmony XB5R, plastic black
This rope pull switch is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a rope pull switch with wireless and batteryless transmitter. Its pulling force is from 45N to 1000N. The rope pull switch is adapted for automatic doors. It sends a radio message to the receiver in the control panel to open and close the door. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It weighs 150g.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK05 conforming to IEC 62262 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Electromagnetic Compatibility |
|
| Ip Degree Of Protection | IP65 IEC 62262 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 95-95 % without condensation |
| Mechanical Durability | 1000000 cycles |
| Nema Degree Of Protection | NEMA 4 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP101106EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1103010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mechanical Robustness | free fall resistance 1 m EN/IEC 60068-2-31 |
| Standards |
|
| Fixing Mode | by screw 1.8-2.2 N.m |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Antenna Gain | 0 dBi |
| Net Weight | 0.15 kg |
| Cad Overall Height | 144 mm |
| Mounting Mode |
|
| Maximum Sensing Distance | 100 m in free field |
| Number Of Channels | 1 |
| Operating Position | any position |
| Radio Agreement |
|
| Cad Overall Width | 56 mm |
| Emission Power | 3 mW |
| Cad Overall Depth | 38 mm |
| Country of Origin | France |
| Width | 56 mm |
| Height | 144 mm |
| Weight | 0.15 kg |
| Antenna Type | omnidirectional |
| Range Of Product | Harmony XB5R |
| Transmission Frequency | 2405 MHz |
| Product Or Component Type | wireless and batteryless transmitter |
| Level Or Class | 5M00G7W |
| Bezel Material | plastic |
| Device Short Name | ZBRP1 |
