ZBRN2 – Harmony Hub wireless serial line gateway, Harmony XB5R, Zigbee green power gateway, wireless to modbus, 24…240V AC DC
ZBRN2

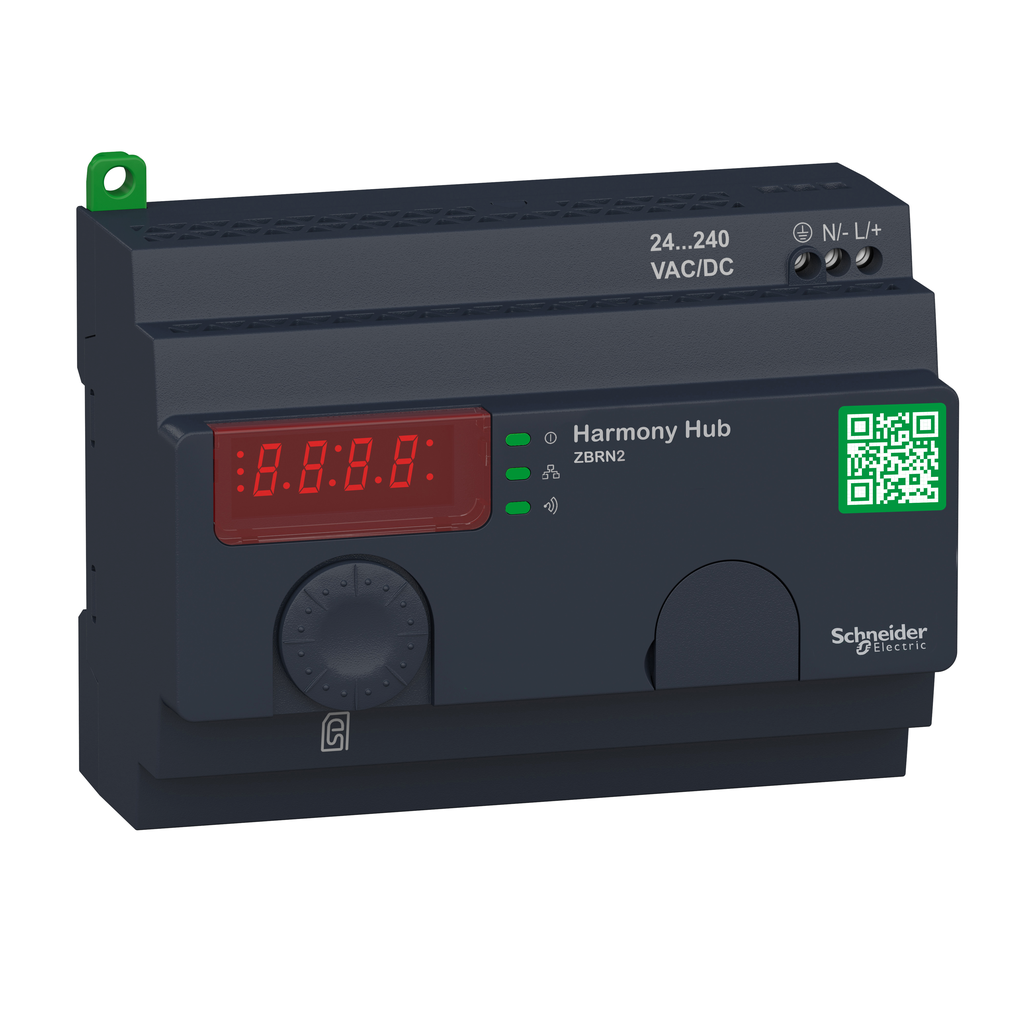

Harmony Hub wireless serial line gateway, Harmony XB5R, Zigbee green power gateway, wireless to modbus, 24...240V AC DC

This harmony hub wireless/serial line gateway provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant and vibration resistant thanks to its IP20, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications (IP65)

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Electrical Connection
  • 1 conductor cable 0.2-4 mm² - AWG 24...AWG 12 - solid - without cable end IEC 60947-1
  • 2 conductors cable 0.2-1.5 mm² - AWG 24...AWG 16 - solid - without cable end IEC 60947-1
  • 1 conductor cable 0.2-0.75 mm² - AWG 24...AWG 14 - flexible - with cable end IEC 60947-1
  • 2 conductors cable 0.2-2.5 mm² - AWG 24...AWG 18 - flexible - with cable end IEC 60947-1
[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz - 10...10 %
Height 90 mm
Short-Circuit Protection 16 A GB2 circuit breaker
[Uimp] Rated Impulse Withstand Voltage 4 kV
Integrated Connection Type 1 isolated serial link 2 x RJ45 in parallel Modbus Serial line slave Modbus slave RTU asynchronous in baseband RS485, half duplex, 1.2...115.2 kbauds, 2 twisted shielded pairs
Status Led
  • 1 LED Green power ON
  • 1 LED Yellow communication network
  • 5 LEDs Red function mode
  • 1 LED green and yellow reception signal
Channels Utilisation <= 60 devices
Immunity To Microbreaks 10 ms
Response Time < 30 ms
Data Format 7 or 8 bits, 1 or 2 stop bits
Operating Position any position
Antenna Gain 0 dBi
Net Weight 0.27 kg
Topology devices linked by daisy-chaining or tap junctions
Surge Withstand
  • 1 kV differential mode IEC 61000-4-5
  • 2 kV common mode IEC 61000-4-5
Rated Short-Duration Power Frequency Withstand Voltage 1.5 kV 50 Hz EN/IEC 60947-5-1
Maximum Sensing Distance
  • 100 m in free field
  • 250 m if a relay antenna is located between the transmitter and Harmony Hub
  • 60 m if an external antenna is connected to Harmony Hub
  • 25 m with Harmony Hub installed in a metal housing or in a closed metal enclosure
Mounting Support
  • 35 mm symmetrical DIN rail conforming to EN/IEC 60715
  • mounting plate
Housing Material self-extinguishing plastic
Breaking Capacity 750 VA
Control Circuit Frequency 50...60 Hz +/- 10 %
Width 122 mm
Depth 60 mm
Tightening Torque
  • 0.35-0.4 N.m EN/IEC 60947-1
  • 3.09-3.54 lbf.in EN/IEC 60947-1
Maximum Power Consumption In W 4 W AC/DC
Parity
  • no
  • even
  • odd
Data Storage Equipment SD card
Product Certifications
  • GOST
  • CE
  • UL
  • C-tick
  • CSA
  • CCC
Standards
  • CSA C22.2 No 14
  • EN 62311
  • EN/IEC 61131-2
  • ETSI EN 300 440-2
  • ETSI EN 300 328
  • EN/IEC 60950-1
  • UL 508
Storage Altitude 0-3000 m
Electromagnetic Compatibility
  • 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5
  • immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11
Shock Resistance 10 gn 16 ms) 6000 shocks IEC 60068-2-27
Vibration Resistance
  • +/- 3.5 mm 5-14 Hz) IEC 60068-2-6
  • 1 gn 5-150 Hz) on panel mounting IEC 60068-2-6
  • 2 gn 8-150 Hz) on DIN rail IEC 60068-2-6
Ip Degree Of Protection
  • IP20 IEC 60529 casing)
  • IP20 terminals)
Pollution Degree 2 IEC 60664-1
Directives
  • 2006/95/EC - low voltage directive
  • 2004/108/EC - electromagnetic compatibility
  • 1999/5/EC - R&TTE directive
Ambient Air Temperature For Storage -40-70 °C
Relative Humidity 90-90 % -25-55 °C, without condensation ETSI EN 300 440-1
Radio Agreement
  • ANATEL, type III ETSI EN 301 489-3
  • FCC, category 2 ETSI EN 300 440-1
  • ICASA
  • RSS, category 1 ETSI EN 300 440-1
  • SRRC
Operating Altitude 0...6561.68 ft (0...2000 m)
Dielectric Strength
  • 3000 V between input and output AC
  • 4250 V between input and output DC
  • 1500 V between input and ground AC
  • 2150 V between input and ground DC
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP101106EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1103010EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin Indonesia
Width 122 mm
Height 90 mm
Weight 0.27 kg
Antenna Type integrated
Range Of Product Harmony
Product Or Component Type Harmony Hub wireless/Serial Line gateway
Communication Port Protocol Modbus client application
Product Specific Application Wireless Schneider Electric devices ecosystem
Function Of Module Zigbee green power concentrator
Device Short Name ZBRN2
Transmission Frequency 2405-2480 MHz
