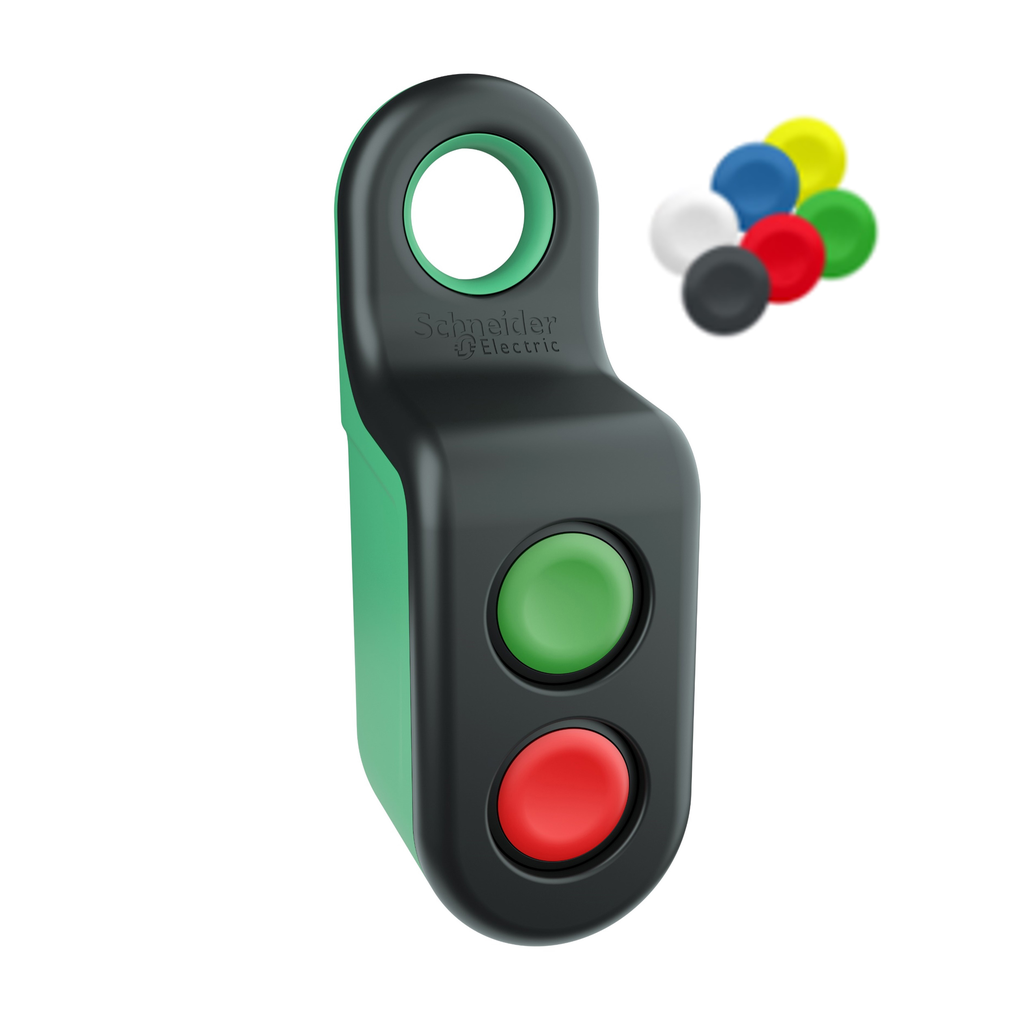

ZBRM22B0 - Wireless and batteryless transmitter, Harmony XB5R, plastic, black, 2 doubles action, UP DOWN push buttons

ZBRM22B0

Wireless and batteryless transmitter, Harmony XB5R, plastic, black, 2 doubles action, UP DOWN push buttons

This wireless and batteryless transmitter provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Mechanical Robustness	free fall resistance 1000 mm IEC 60068-2-32
Operator Additional Information	set of caps
Operating Force	25 N C/O changing electrical state
Operating Travel	4.3 mm total travel)
Type Of Operator	spring return push-button with transmitter
Acquisition Time	2 ms
Communication Port Protocol	Zigbee green power 2.4 GHz
Operator Profile	flush
Kit Composition	1 set of caps 1 handy box 2 transmitter 2 push-button head 22 mm 2 fixing collars
Shock Resistance	25 gn 6 ms) 6000 shocks IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head	round
Response Time	< 2 ms
Net Weight	0.2 kg
Maximum Sensing Distance	100 m in free field 25 m transmitter in the handy box and receiver in a metal enclosure 300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna
Mechanical Durability	400000 cycles
Emission Power	3 mW
Country of Origin	United States
Weight	0.2 kg
Range Of Product	Harmony XB5R
Mounting Diameter	22 mm
Product Or Component Type	wireless and batteryless transmitter
Fixing Collar Material	plastic
Bezel Material	plastic
Contact Operation	2 double action UP/DOWN push-buttons
Device Short Name	XB5R
Product Certifications	BT 2006/95/EC C-tick EAC CSA UL CCC
Ik Degree Of Protection	IK03 conforming to IEC 50102
Ambient Air Temperature For Operation	-25-55 °C
Standards	UL 508 CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
Vibration Resistance	5 gn 11-500 Hz)IEC 60068-2-6 +/- 10 mm 2-11 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP65 IEC 60529 front face) IP65 UL Type 12 front face)
Directives	2004/108/EC - electromagnetic compatibility 1999/5/EC - R&TTE directive
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	95-95 % 70-70 °C without condensation
Radio Agreement	RSS UL 508 ARIB T66 CSA C22.2 No 14 ICASA ANATEL FCC
Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
