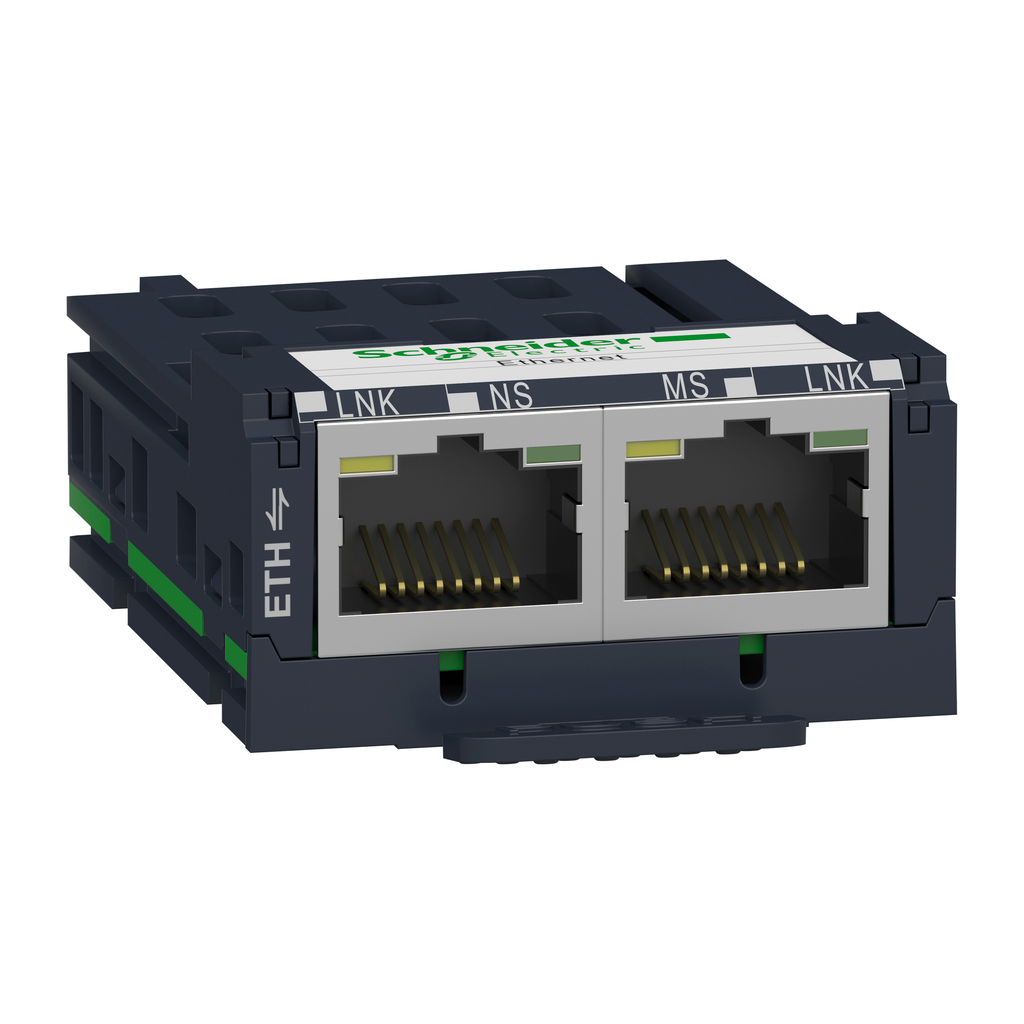

ZBRCETH
Modbus TCP communication module for ZBRN1, Harmony XB5R, 2 Ethernet RJ45 connectors
This communication module enables visual distinction of signaling units via illumination by BA9s base Integral LED It protects operators from unexpected contact with live circuits thanks to its IP20 protection index
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP101106EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI110301EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Physical Interface |
|
| Marking | CE |
| Net Weight | 0.044 kg |
| Product Destination | ZBRN1 wireless Harmony Hub |
| Communication Service |
|
| Integrated Connection Type | Ethernet RJ45 - 2 twisted pairs - class D |
| Transmission Rate | 10/100 Mbit/s |
| Local Signalling |
|
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-65 °C |
| Storage Altitude | 0-3048 m |
| Pollution Degree | 2 |
| Electromagnetic Compatibility |
|
| Vibration Resistance |
|
| Shock Resistance | 15 gn 11 ms |
| Ambient Air Temperature For Storage | -25-70 °C |
| Relative Humidity | 5-95 % without condensation |
| Ip Degree Of Protection | IP20 |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Country of Origin | Philippines |
| Weight | 0.044 kg |
| Range Of Product | Harmony Hub |
| Product Or Component Type | communication module |
| Communication Port Protocol | Modbus TCP |
| Device Short Name | ZBRCETH |
