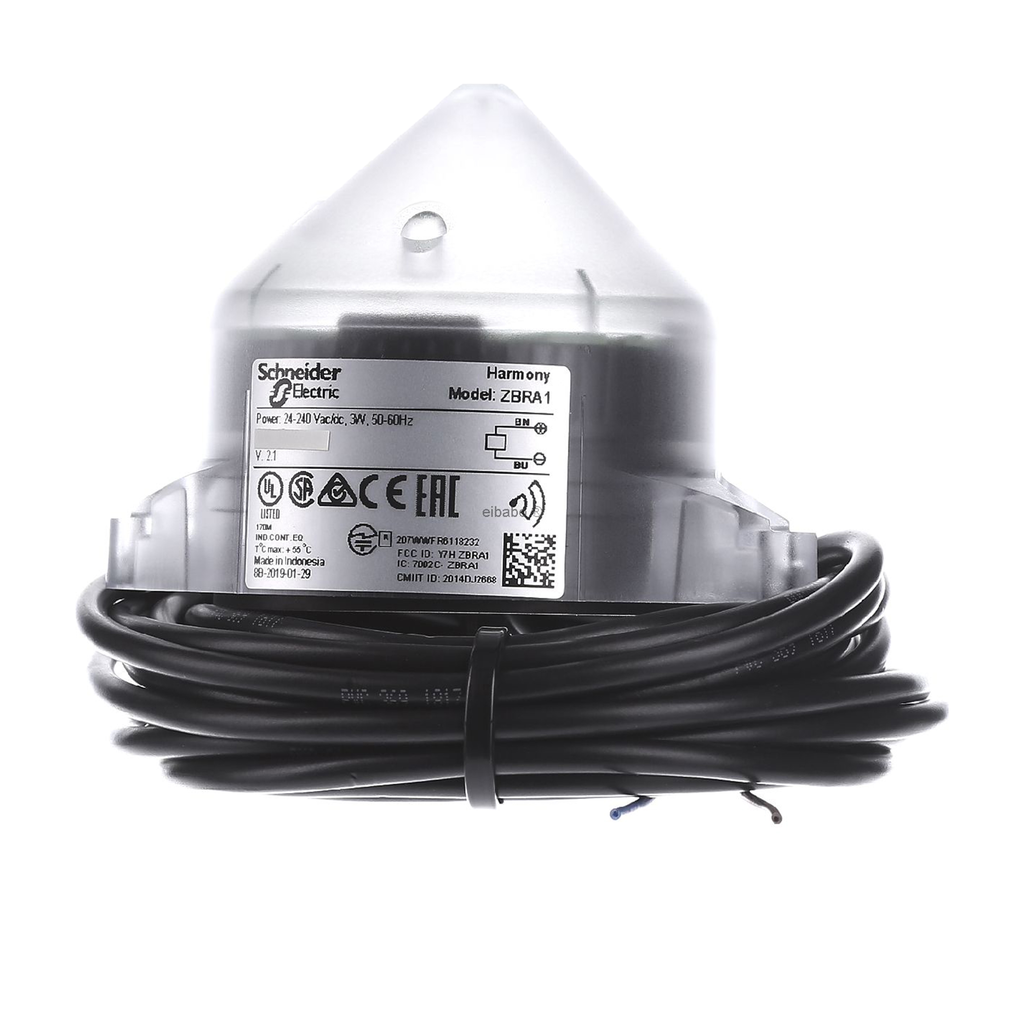

ZBRA1
Wireless and batteryless range, Harmony XB5R, Relay Antenna, AC DC, 5m cable output
This relay antenna is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. Installed between transmitter and receiver it is used to increase the range and/or get round obstacles. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK03 conforming to IEC 62262 |
| Ip Degree Of Protection | IP65 IEC 60529 55 °C 0.1 m |
| Electromagnetic Compatibility |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Insulation Resistance | > 500 MOhm 500 V DC NF C 20030 |
| Pollution Degree | 3 IEC 60664-1 |
| Directives |
|
| [Ui] Rated Insulation Voltage | 250 V IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 90-90 % -20-55 °C, without condensation ETSI EN 300 440-1 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Radio Agreement |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP101106EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1103010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % |
| Electrical Connection | 2 conductors cable 0.34-0.34 mm² - flexible - 5 m conforming to IEC 60947-1 |
| Short-Circuit Protection | 0.4 A fuse fast blow |
| Modulation Technique | O-QPSK |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| Status Led |
|
| Antenna Gain | 0 dBi |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Emission Power | 3 mW |
| Net Weight | 0.2 kg |
| Overvoltage Category | III IEC 60664-1 |
| Rated Short-Duration Power Frequency Withstand Voltage | 4 kV 50 Hz IEC 60947-5-1 |
| Maximum Sensing Distance | 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Housing Material | self-extinguishing plastic |
| Operating Position | vertical |
| Tightening Torque | 0.6-0.6 N.m IEC 60947-1 |
| Maximum Power Consumption In W | 4 W AC/DC |
| Bandwidth | 5-5 MHz |
| Country of Origin | Indonesia |
| Weight | 0.2 kg |
| Antenna Type | omnidirectional |
| Control Station Application | transceiver (emission and reception) |
| Product Destination | Wireless Schneider Electric ecosystem devices |
| Range Of Product | Harmony XB5R |
| Colour Of Base Of Enclosure | black RAL 9011) |
| Product Or Component Type | wireless and batteryless range |
| Material | polycarbonate |
| Colour Of Cover | transparent |
| Level Or Class | 5M00G7W |
| Device Short Name | ZBRA |
| Transmission Frequency |
|
