ZBE302 – Contact block, Harmony XB4, Harmony XB5, single contact, silver alloy, screw clamp terminal, 1NC with monitoring contact
ZBE302

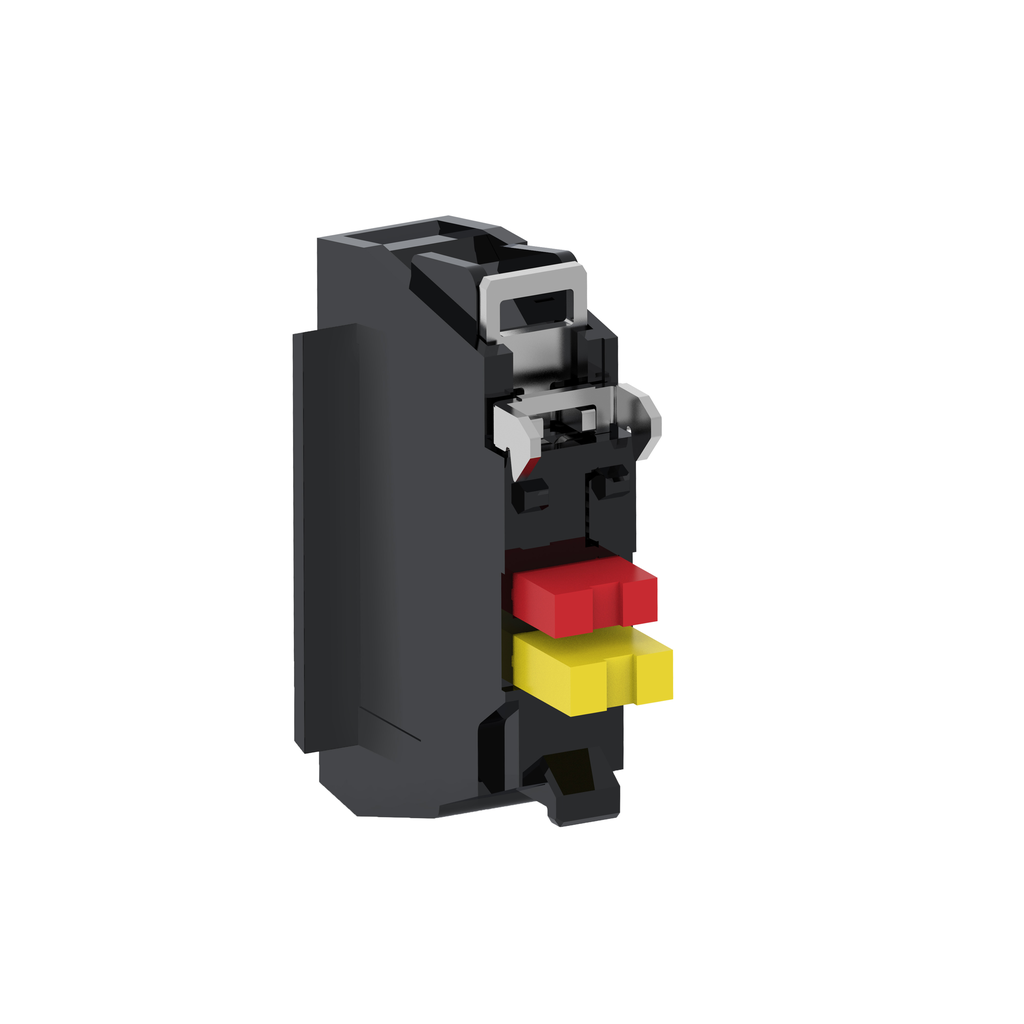

Contact block, Harmony XB4, Harmony XB5, single contact, silver alloy, screw clamp terminal, 1NC with monitoring contact

This product is part of the Harmony XB4 and XB5 range, an offer of Ø 22mm pushbuttons, switches and pilot lights. It is a single contact block with silver alloy contact. It is only used in combination with an emergency stop pushbutton and is not compatible with other pushbuttons. It comes with 1 NC monitoring contact with slow break operation. The NC contact is opened when the emergency stop is activated. The monitoring feature triggers emergency stop due to improper installation. It comes with CE, CCC, UKCA, EAC, UL and CSA certification. This monitoring contact is compatible for emergency stops in both the XB4 and XB5 range. It connects to control circuits with simple screw-clamp connections. The Harmony XB4 and XB5 range offers innovative features for simple and efficient use.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • CSA
  • EAC
  • BV
  • DNV
  • CE
  • LROS (Lloyds register of shipping)
  • CCC
  • UL Listed
  • CB Scheme
  • UKCA
Ambient Air Temperature For Operation -40-70 °C
Standards
  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
  • JIS C8201-1
  • JIS C8201-5-1
  • GB/T 14048.5
  • BS EN 60947-5-1
  • GOST IEC 60947-5-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance
  • 5 gn 10-500 Hz)IEC 60068-2-6
  • 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage -40-70 °C
Protective Treatment TH
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2304014EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Circularity Profile N/A
Eu Rohs Directive Compliant
Mounting Of Block front mounting
Contacts Type And Composition 1 NC monitoring contact
Operating Force 5 N NC changing electrical state
Short-Circuit Protection 6 A cartridge fuse gG IEC 60947-5-1
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 6 A IEC 60947-5-1
Net Weight 0.013 kg
[Uimp] Rated Impulse Withstand Voltage 4 kV IEC 60947-1
Cad Overall Height 41 mm
Device Presentation basic element
Electrical Durability
  • 300000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 300000 cycles, AC-15, 3 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 300000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 300000 cycles, DC-13, 0.3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 300000 cycles, DC-13, 1 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 300 V 3)IEC 60947-1
[Ie] Rated Operational Current
  • 1.5 A 240 V, AC-15, B300 IEC 60947-5-1
  • 3 A 120 V, AC-15, B300 IEC 60947-5-1
  • 0.11 A 250 V, DC-13, R300 IEC 60947-5-1
  • 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Mechanical Durability 300000 cycles
Electrical Reliability
  • λ < 10exp(-7) 5 V 1 mA in clean environment IEC 60947-5-4
  • λ < 10exp(-8) 17 V 3.4 mA in clean environment IEC 60947-5-4
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Cad Overall Width 10 mm
Cad Overall Depth 26 mm
Shape Of Screw Head
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Country of Origin Indonesia
Width 10 mm
Height 41 mm
Weight 0.013 kg
Contacts Usage monitoring contact
Range Of Product
  • Harmony XB4
  • Harmony XB5
Contact Block Type single
Product Or Component Type contact block
Ip Degree Of Protection IP20 IEC 60529
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, >= 1 x 0.34 mm² without cable end IEC 60947-1
Sale Per Indivisible Quantity 5
Contact Operation slow-break
Device Short Name ZBE
