ZB6Z5B - Complete body for push buttons or selector switches, Harmony XB6, single contact, with body fixing collar, faston connector, 1NO 1NC

ZB6Z5B

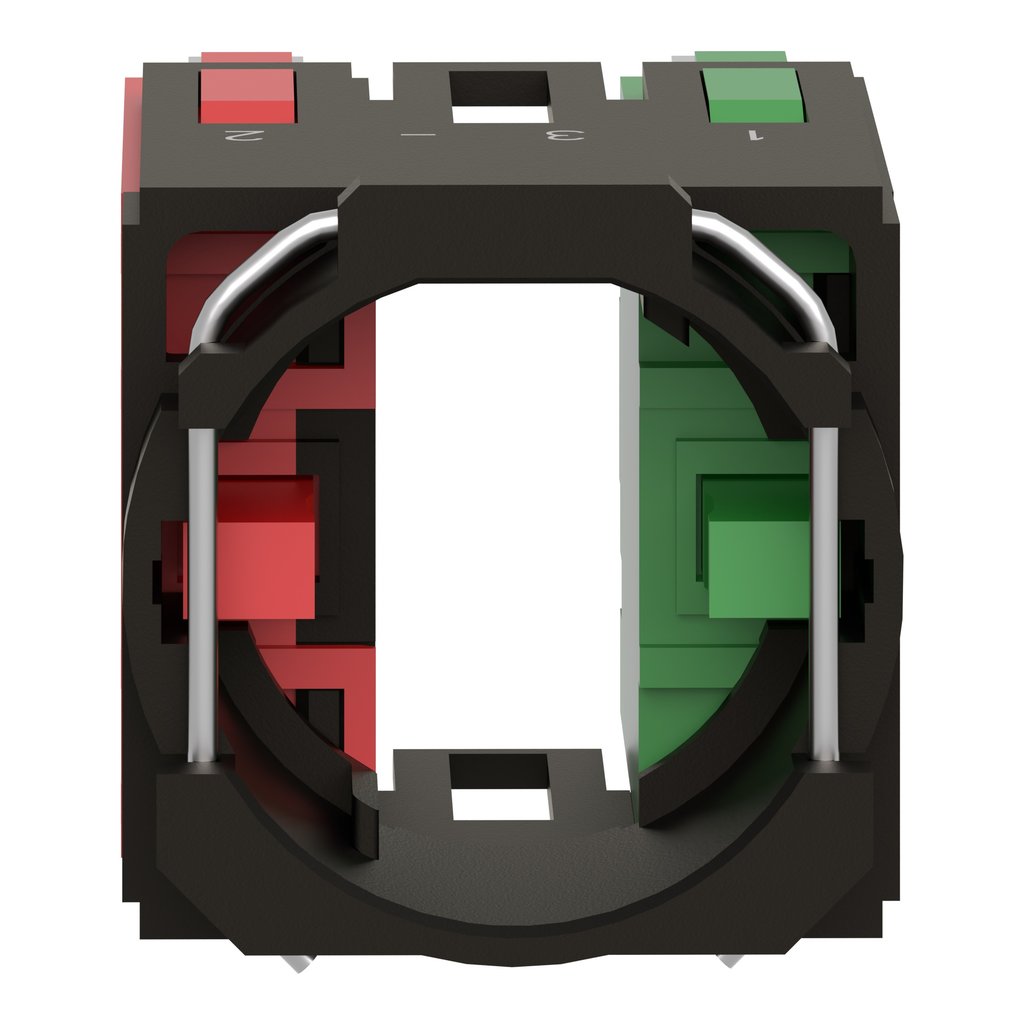

Complete body for push buttons or selector switches, Harmony XB6, single contact, with body fixing collar, faston connector, 1NO + 1NC

This Harmony ZB6Z5B is a single contact block with body/fixing collar, 1 NO + 1 NC faston connector. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	GOST CSA UL CCC
Ambient Air Temperature For Operation	-25-70 °C
Standards	JIS C 4520 IEC 60947-5-1 UL 508 CSA C22.2 No 14 IEC 60947-5-5 JIS C 852 IEC 60947-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	+/- 3 mm 2-500 Hz)IEC 60068-2-6 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP65 IEC 60529
Ambient Air Temperature For Storage	-40-70 °C
Electrical Shock Protection Class	class II IEC 61140
Protective Treatment	TC
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Usage	standard
Terminals Description Iso N°1	(11-12)NC
Operating Force	1.6 N NO changing electrical state 2.5 N NC changing electrical state
Short-Circuit Protection	6 A cartridge fuse gG IEC 60947-5-1
Operating Travel	1 mm NC changing electrical state) 2 mm NO changing electrical state) 4.3 mm total travel)
Contacts Material	silver alloy (Ag/Ni)
Positive Opening	with IEC 60947-5-1 appendix K
Net Weight	0.006 kg
Cad Overall Height	18 mm
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ie] Rated Operational Current	3 A 120 V, AC-15, B300 1.5 A 240 V, AC-15, B300 0.1 A 250 V, DC-13, R300 0.22 A 125 V, DC-13, R300
Electrical Reliability	λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Cad Overall Width	18 mm
Cad Overall Depth	40 mm
Country of Origin	Mexico
Width	18 mm
Height	18 mm
Weight	0.006 kg
Range Of Product	Harmony XB6
Product Or Component Type	complete body for push-buttons or selector switches
Fixing Collar Material	plastic
Connections - Terminals	Faston connector Faston connector 2.8 x 0.5 mm
Contacts Type And Composition	1 NO + 1 NC
Sale Per Indivisible Quantity	1
Contact Operation	slow-break
Device Short Name	ZB6
[Us] Rated Supply Voltage	<= 250 V
