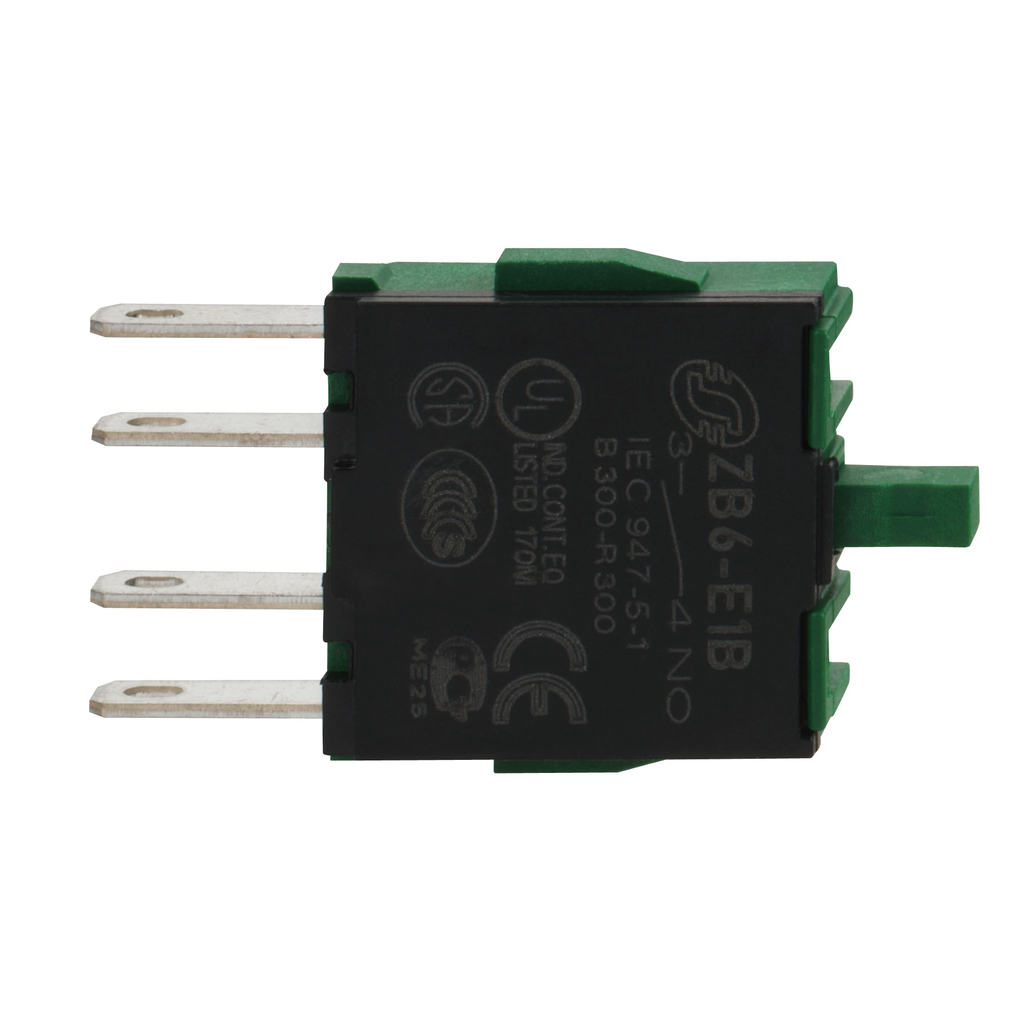

ZB6E1B - Contact block, Harmony XB6, single contact, for head 16mm, silver alloy, faston connector, 1NO

ZB6E1B

Contact block, Harmony XB6, single contact, for head 16mm, silver alloy, faston connector, 1NO

This Harmony ZB6E1B is a single contact block for head, 1 NO faston connector. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL CCC CSA GOST
Ambient Air Temperature For Operation	-25-70 °C
Standards	JIS C 4520 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C 852 EN/IEC 60947-1 EN/IEC 60947-5-4 UL 508
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	+/- 3 mm 2-500 Hz)IEC 60068-2-6 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP20 IEC 60529
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TC
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Terminals Description Iso N°1	(3-4)NO
Operating Force	1.6 N NO changing electrical state
Short-Circuit Protection	6 A cartridge fuse gG
Operating Travel	2 mm NO changing electrical state) 3.5 mm total travel)
Positive Opening	with EN/IEC 60947-5-1 appendix K
Net Weight	0.004 kg
[Uimp] Rated Impulse Withstand Voltage	4 kV EN/IEC 60947-1
Electrical Durability	1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage	250 V 3)EN/IEC 60947-1
[Ie] Rated Operational Current	3 A 120 V, AC-15, B300 1.5 A 240 V, AC-15, B300 0.1 A 250 V, DC-13, R300 0.22 A 125 V, DC-13, R300
Mechanical Durability	5000000 cycles
Electrical Reliability	λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4
Country of Origin	Spain
Weight	0.004 kg
Range Of Product	Harmony XB6
Contacts Material	silver alloy (Ag/Ni)
Contact Block Type	single
Product Or Component Type	contact block
Connections - Terminals	Faston connector
Contacts Type And Composition	1 NO
Sale Per Indivisible Quantity	10
Contact Operation	slow-break
Device Short Name	ZB6

Contact block, Harmony XB6, single contact, for head 16mm, silver alloy, faston connector, 1NO
