ZB6DW4

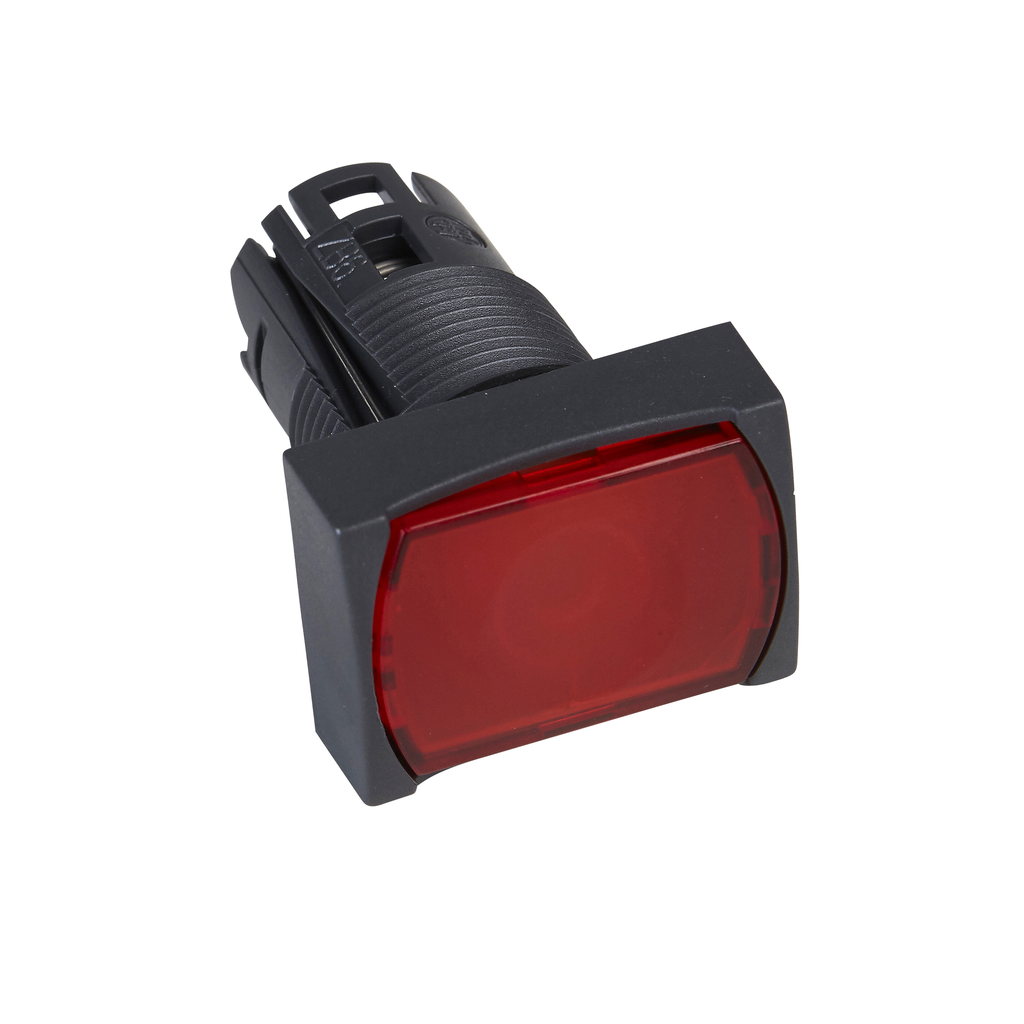

Head for illuminated push button, Harmony XB6, red rectangular flush, 16mm, integral LED, spring return, 12…24V, unmarked
This Harmony ZB6DW4 is a red rectangular flush illuminated push button head, spring return, 12V to 24V. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TC |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Net Weight | 0.016 kg |
| Cad Overall Height | 18 mm |
| Cad Overall Width | 24 mm |
| Cad Overall Depth | 33 mm |
| Country of Origin | Spain |
| Width | 24 mm |
| Height | 18 mm |
| Weight | 0.016 kg |
| Range Of Product | Harmony XB6 |
| Mounting Diameter | 16 mm |
| Type Of Operator | spring return |
| Product Or Component Type | head for illuminated push-button |
| Shape Of Signaling Unit Head | rectangular |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic |
| Operator Profile | red flush, unmarked |
| Product Compatibility | integral LED |
| Device Short Name | ZB6 |
