ZB5SZ3

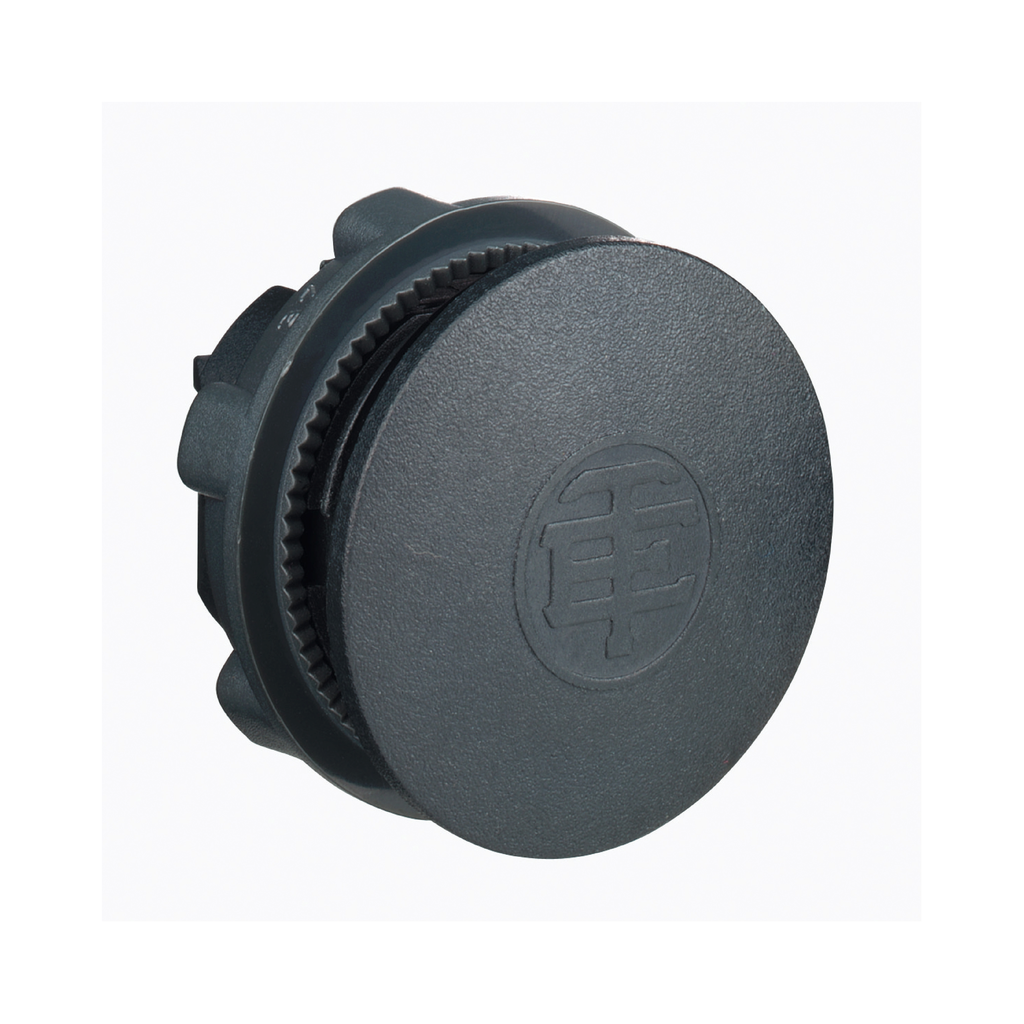

Blanking plug, Harmony XB5, plastic, black, for 22mm hole
This Harmony plastic blanking plug is compatible with Harmony XB4, XB5 and XB7 pushbuttons with flush push. This plastic blanking plugis designed as an option to fit with your pushbutton units when no function is needed for machine to operate. It is compatible with standard 22mm XB4, XB5 and XB7 control and signaling units. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK03 conforming to IEC 50102 |
|---|---|
| Standards |
|
| Ip Degree Of Protection |
|
| Nema Degree Of Protection |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP081202-EN |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Shape Of Signaling Unit Head | round |
| Material | plastic |
| Net Weight | 0.009 kg |
| Head Type | standard |
| Sale Per Indivisible Quantity | 10 |
| Bezel Material | dark grey plastic |
| Operator Profile | flush |
| Station Name |
|
| Device Composition |
|
| Main Colour Tint | dark grey |
| Country of Origin | France |
| Weight | 0.009 kg |
| Range Of Product |
|
| Accessory / Separate Part Category | installation accessories |
| Product Or Component Type | blanking plug |
| Cap/Operator Or Lens Colour | dark grey |
| Accessory / Separate Part Type | blanking plug |
| Accessory / Separate Part Destination | Ø 22 mm cut-outs for circular heads |
