ZB5FK1243C0

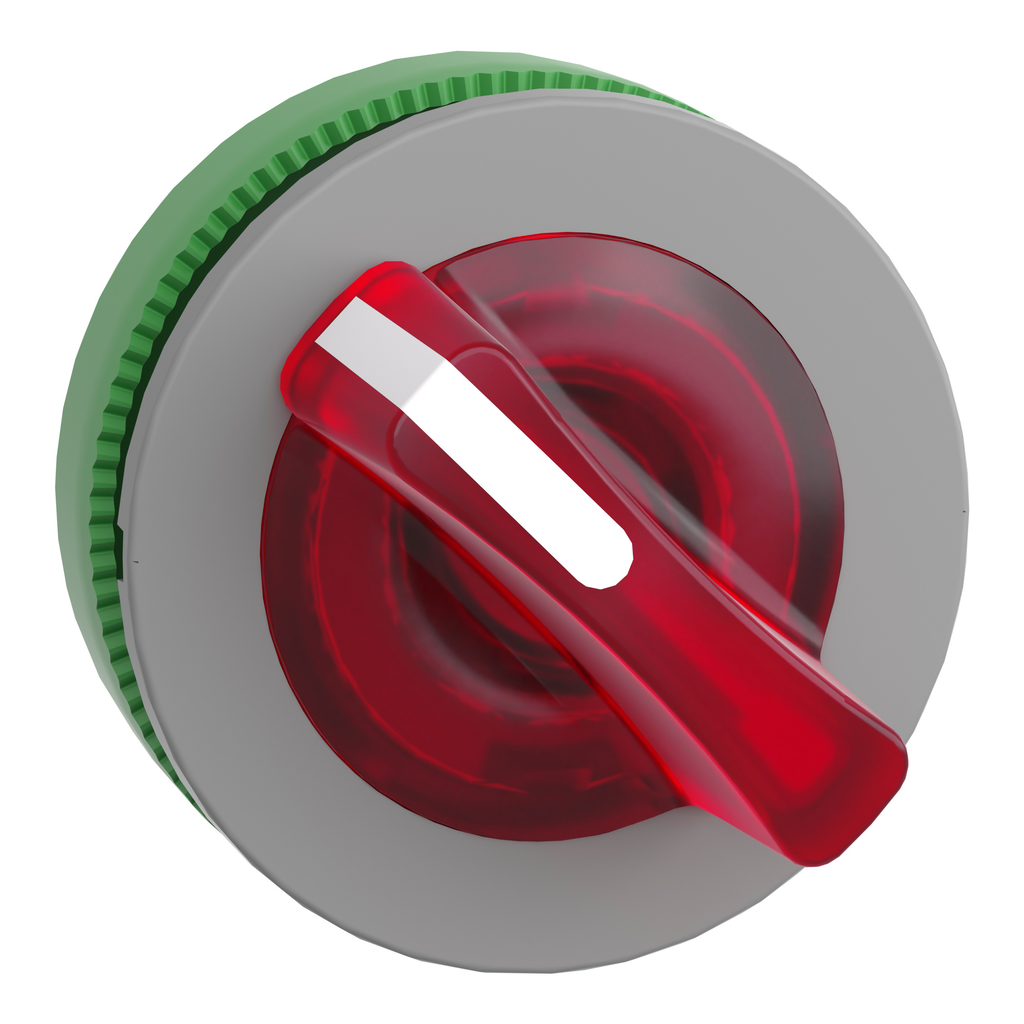

Head for illuminated selector switch, Harmony XB5, grey bezel, red handle, flush mounted, 30mm, universal LED, 2 positions
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK03 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Electrical Composition Code |
|
| Net Weight | 0.03 kg |
| Cad Overall Height | 37 mm |
| Device Presentation | basic element |
| Mechanical Durability | 1000000 cycles |
| Cad Overall Width | 37 mm |
| Cad Overall Depth | 46 mm |
| Country of Origin | France |
| Width | 37 mm |
| Height | 37 mm |
| Weight | 0.03 kg |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 30.5 mm |
| Type Of Operator | stay put |
| Product Or Component Type | head for illuminated selector switch |
| Shape Of Signaling Unit Head | round |
| Head Type | built-in-flush |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic colour plated grey |
| Operator Profile | red standard handle |
| Operator Position Information | 2 positions 90° |
| Product Compatibility | universal LED |
| Device Short Name | ZB5 |
