ZB5CV053

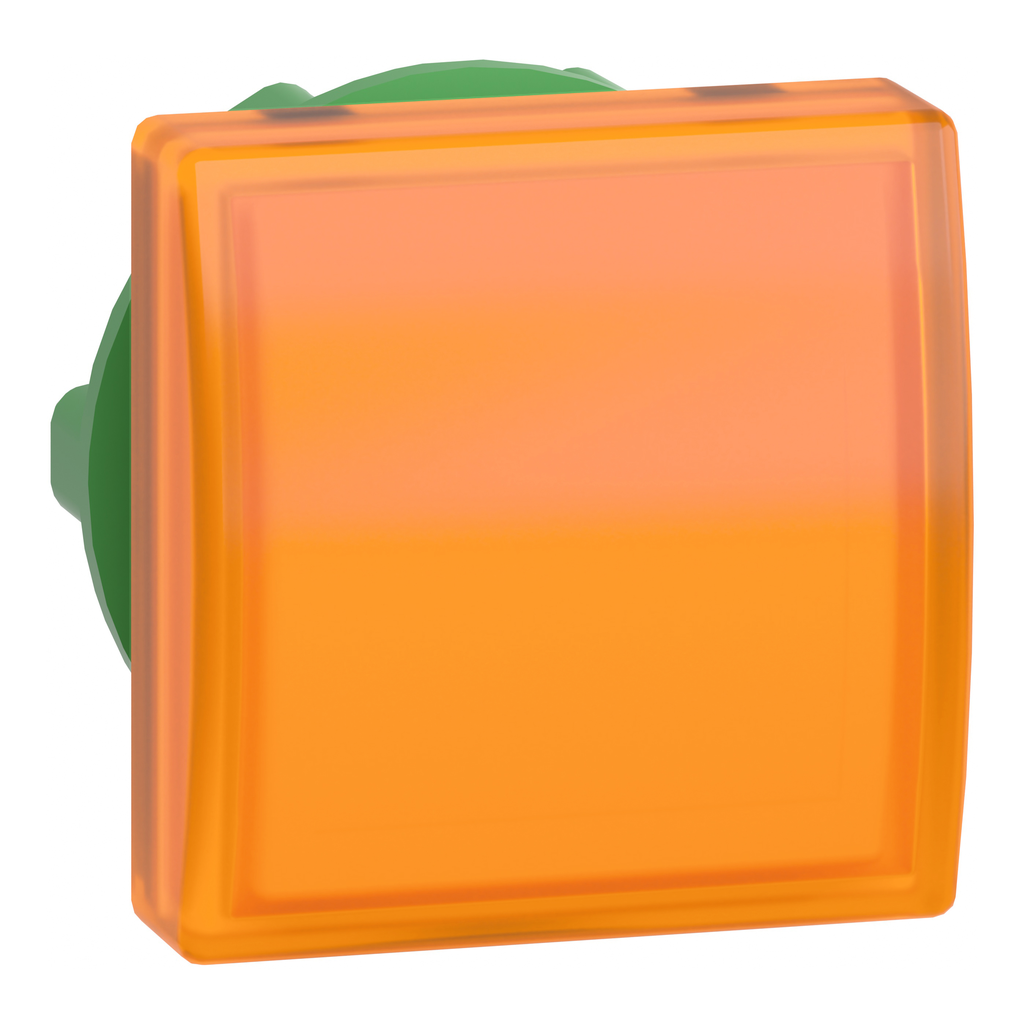

Head for pilot light, Harmony XB5, square orange, 22mm, with plain lens, universal LED
This orange plain lens head for universal LED pilot light is designed to last without maintenance. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK05 conforming to IEC 50102 |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Electrical Composition Code |
|
| Net Weight | 0.02 kg |
| Cad Overall Height | 30 mm |
| Device Presentation | basic element |
| Station Name |
|
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 29 mm |
| Country of Origin | United States |
| Width | 30 mm |
| Height | 30 mm |
| Weight | 0.02 kg |
| Operator Additional Information | with plain lens |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22 mm |
| Product Or Component Type | head for pilot light |
| Shape Of Signaling Unit Head | square |
| Cap/Operator Or Lens Colour | yellow |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | dark grey plastic |
| Product Compatibility | universal LED |
| Device Short Name | ZB5 |
