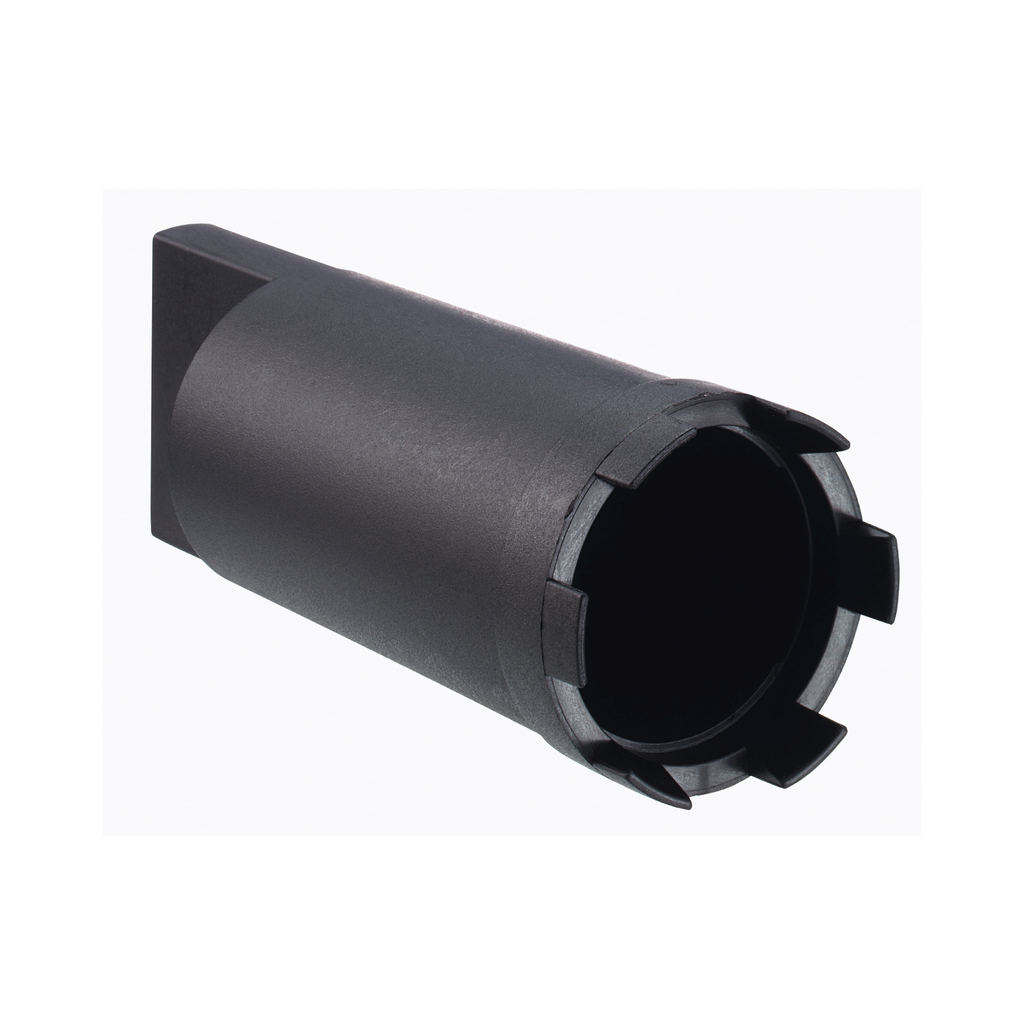

ZB5AZ905
Tightening tool for fixing nut, Harmony XB5, plastic, black
This Harmony XB5, Bezel tightening tool enables a faster and tighter installation of Harmony XB5 and XB7 control and signaling units. This tool facilitate installation and is recommended for every control cabinet makers who regularly assembles large quantities of Harmony XB5 components.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Warranty | 18 months |
|---|---|
| Country of Origin | France |
| Range Of Product |
|
| Accessory / Separate Part Category | mounting and fixing accessory |
| Product Or Component Type | tightening tool |
| Accessory / Separate Part Destination | head fixing nut |
| Product Compatibility | ZB5AZ901 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Quantity Per Set | set of 1 |
