ZB5AZ1015

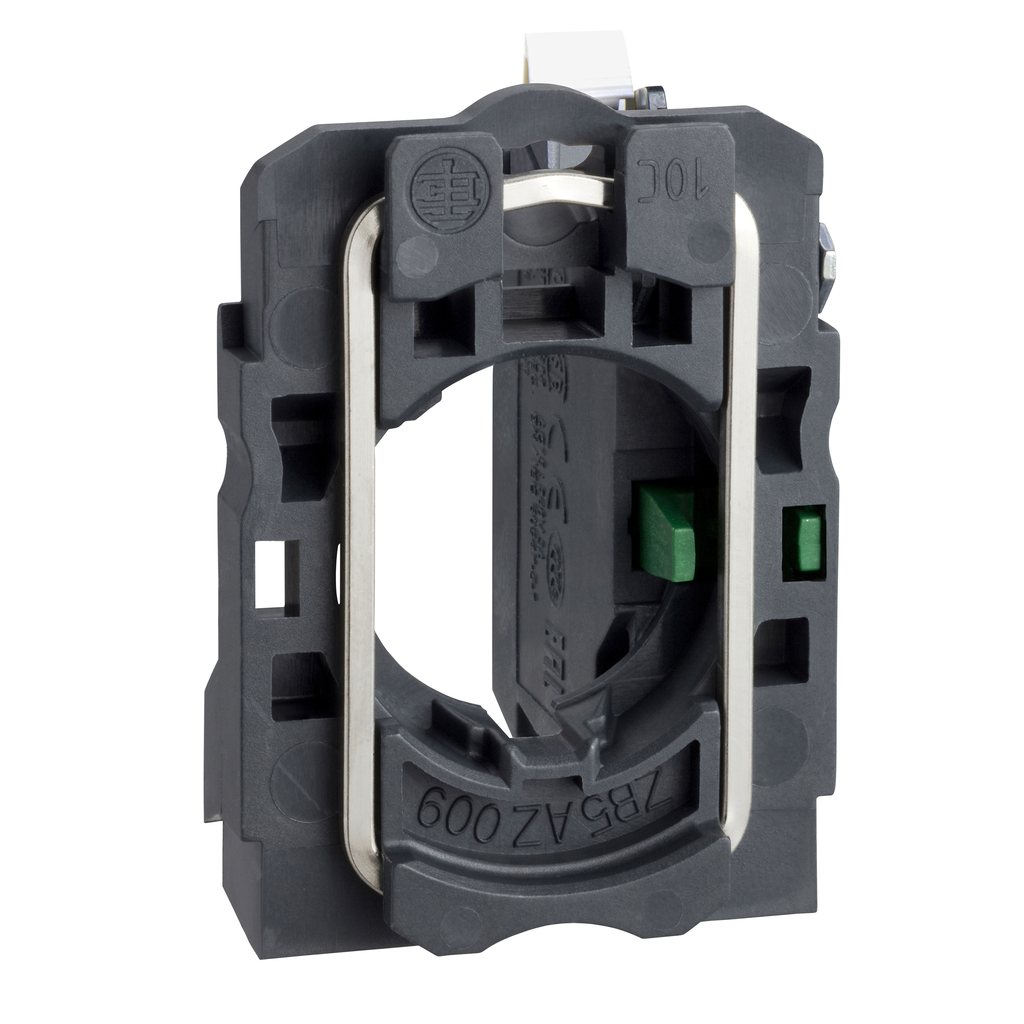

Single contact block with body fixing collar, Harmony XB5, plastic, spring clamp terminal, 1NO
This complete body is an accessory of the range of control and signaling units, Harmony XB5, plastic, diameter 22mm. It consists in a single contact block pre-assembled on a fixing collar unit. It features 1 NO slow break contact block and spring clamp connection type. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It weighs 21g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2303008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Contacts Usage | standard contacts |
| Terminals Description Iso N°1 | (13-14)NO |
| Operating Force | 2.3 N NO changing electrical state |
| Operating Travel |
|
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | without |
| Net Weight | 0.011 kg |
| Cad Overall Height | 27.6 mm |
| Device Presentation | basic sub-assemblies |
| Mechanical Durability | 10000000 cycles |
| Cad Overall Width | 46.2 mm |
| Device Composition |
|
| Cad Overall Depth | 30 mm |
| Country of Origin | United States |
| Width | 46.2 mm |
| Height | 27.6 mm |
| Weight | 0.011 kg |
| Range Of Product | Harmony XB5 |
| Contact Block Type | single |
| Product Or Component Type | complete body/contact assembly |
| Fixing Collar Material | plastic |
| Head Type | standard |
| Connections - Terminals | spring clamp terminals |
| Contacts Type And Composition | 1 NO |
| Sale Per Indivisible Quantity | 1 |
| Contact Operation | slow-break |
| Device Short Name | ZB5 |
