ZB5AZ1014

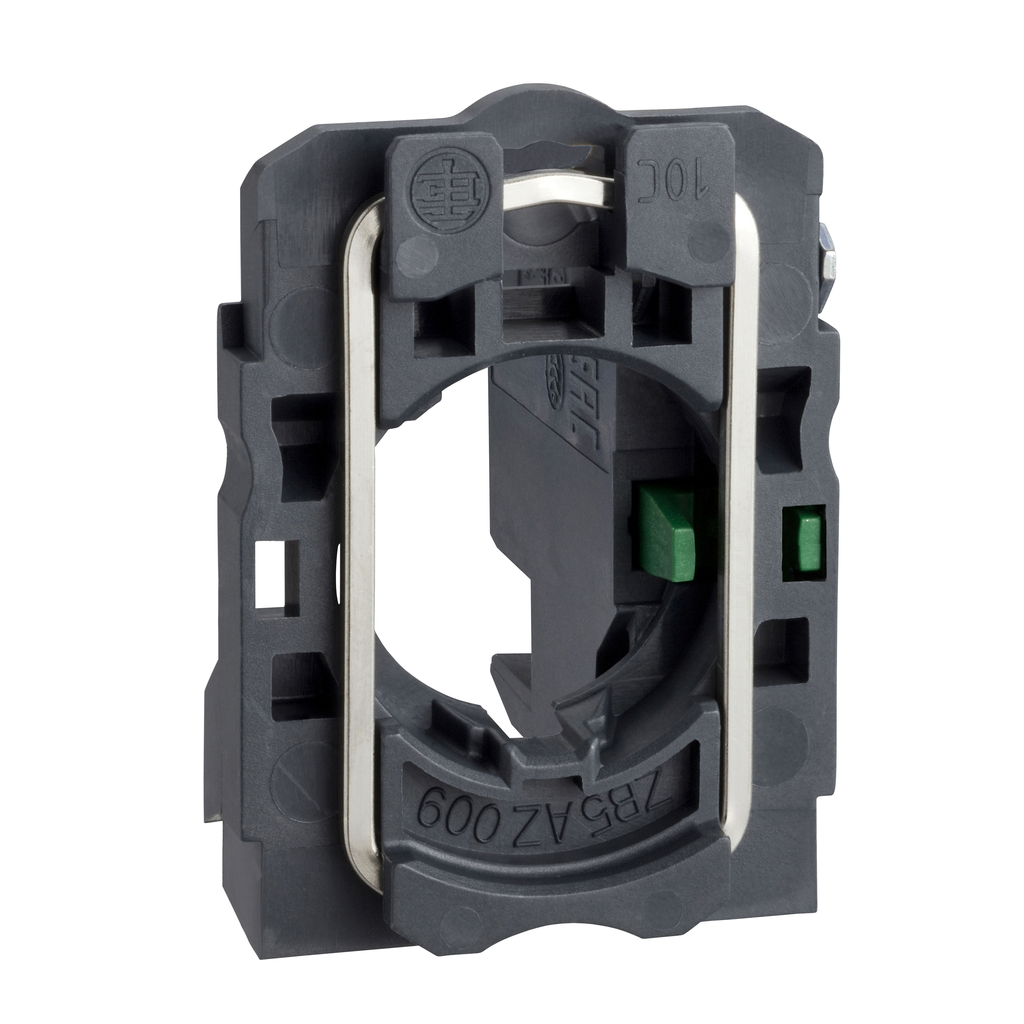

Complete body/contact assembly, Harmony XB5, single contact block with body/fixing collar 1 NO plug in connector
This Harmony ZB5AZ1014 is a single contact block with body/fixing collar, 1 NO plug-in connector. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2303008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Contacts Usage | standard contacts |
| Terminals Description Iso N°1 | (13-14)NO |
| Operating Force | 2.3 N NO changing electrical state |
| Short-Circuit Protection | 4 A cartridge fuse gG IEC 60947-5-1 |
| Operating Travel |
|
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | without |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Net Weight | 0.018 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Cad Overall Height | 42 mm |
| Electrical Durability |
|
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 10000000 cycles |
| Electrical Reliability |
|
| Cad Overall Width | 30 mm |
| Device Composition |
|
| Cad Overall Depth | 32 mm |
| Country of Origin | United States |
| Width | 30 mm |
| Height | 42 mm |
| Weight | 0.018 kg |
| Range Of Product | Harmony XB5 |
| Contact Block Type | single |
| Product Or Component Type | complete body/contact assembly |
| Fixing Collar Material | plastic |
| Head Type | standard |
| Connections - Terminals | plug-in connector |
| Contacts Type And Composition | 1 NO |
| Sale Per Indivisible Quantity | 1 |
| Contact Operation | slow-break |
| Device Short Name | ZB5 |
