ZB5AZ026

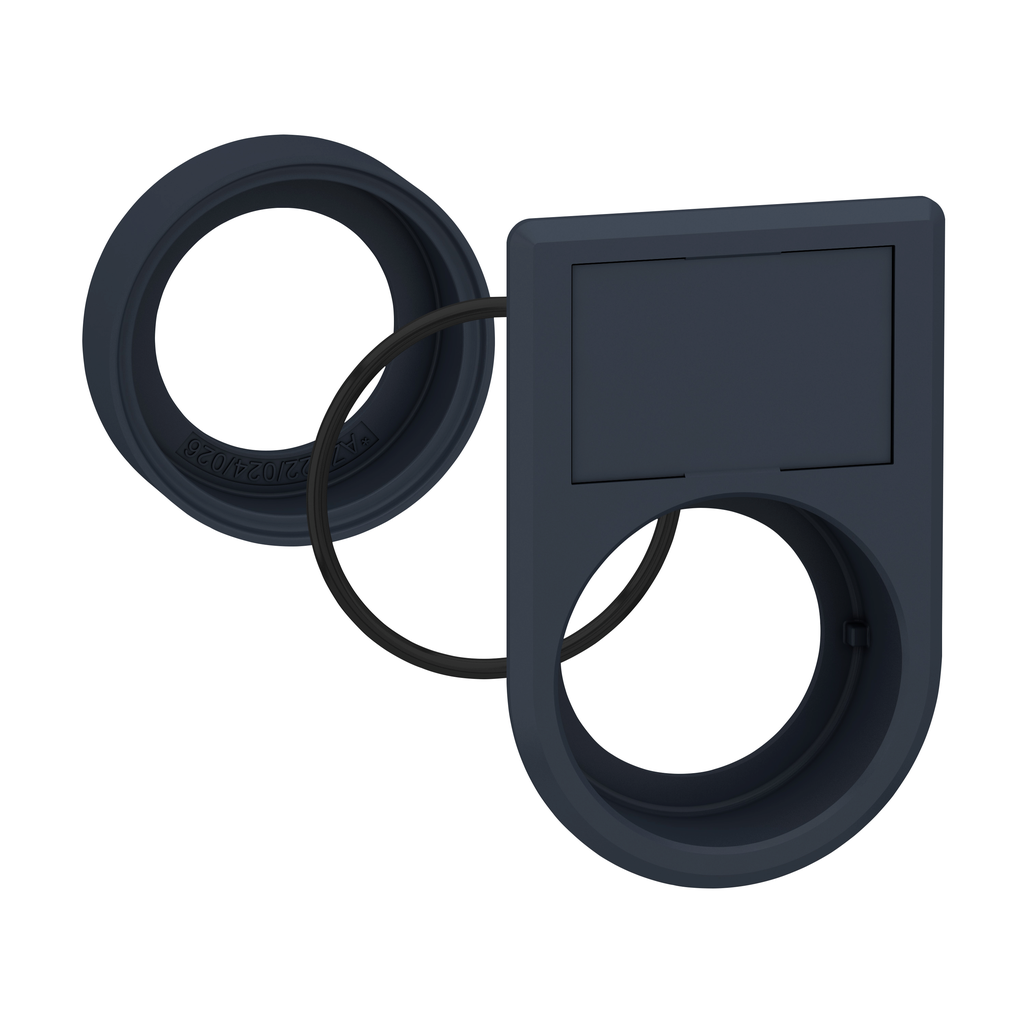

Flush mounting kit, Harmony XB5, mounting kit 30mm for selector switches and illuminated push buttons 22mm, plastic, 2 line legend
This Harmony XB5, flush mounting kit is compatible with Harmony XB5 illuminated push-buttons and selector switches and has a 2-line legend. It allows the installation of devices on control panels to be more resilient to side impacts due to passing objects, tools, opening doors. It allows new aesthetic style for your machines thanks to the flush design. It provides clear labelling area for simple indication of the button function.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK03 conforming to IEC 50102 |
|---|---|
| Mounting Diameter | 30.5 mm |
| Ip Degree Of Protection |
|
| Quantity Per Set | set of 1 |
| Main Colour Tint | black |
| Country of Origin | France |
| Range Of Product | Harmony XB5 |
| Accessory / Separate Part Category | mounting and fixing accessory |
| Product Or Component Type | flush mounting kit |
| Accessory / Separate Part Destination |
|
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
Documents
- ZB4BZ02. - ZB5AZ02. Adapter (Ø 30 to Ø 22 mm/1.181 to 0.866 in. reducer), Instruction Sheet - NHA3245502-02 (pdf)
- ZB4BZ02. Plastic flush mounting kit, Intruction Sheet - QGH4542102_01 (pdf)
- Spec Sheet
- Discover catalog Harmony XB5 plastic Control and signaling units - DIA5ED2121213EN (pdf)
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
