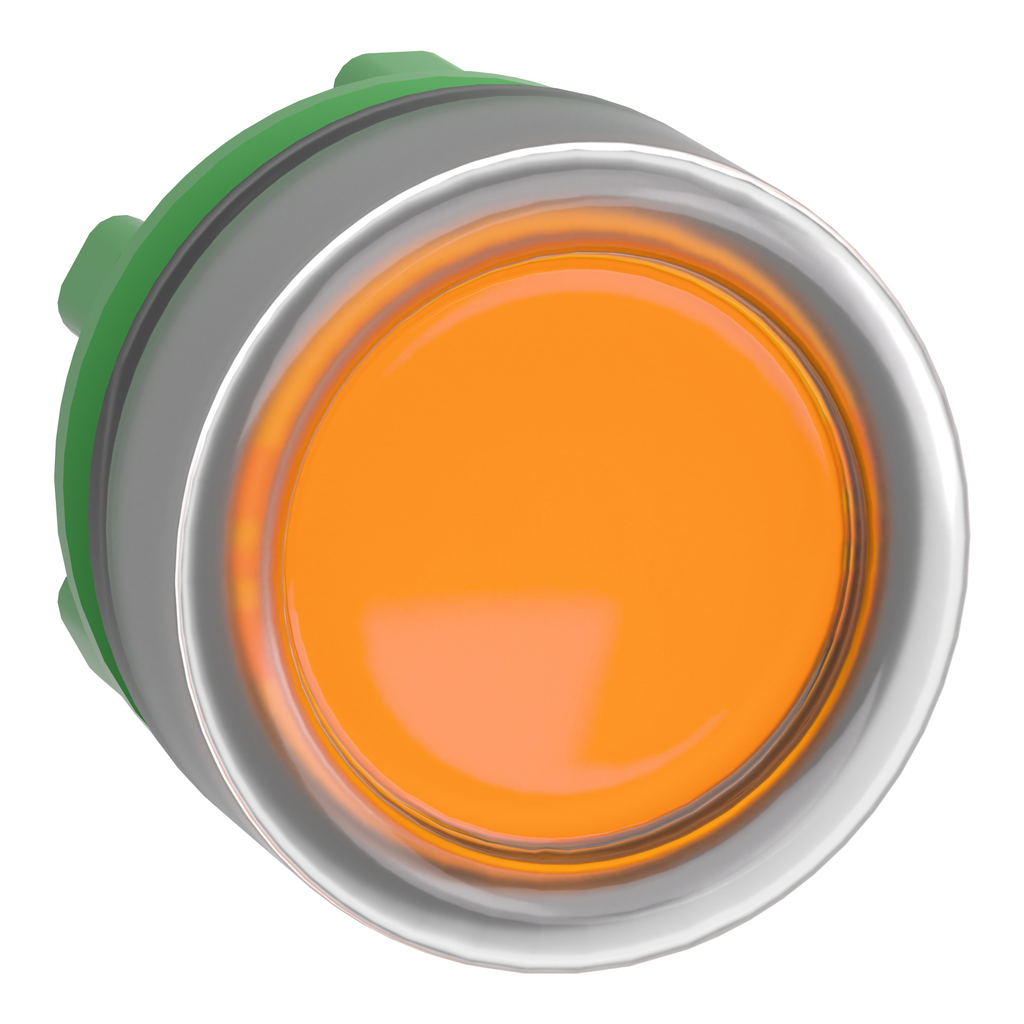

ZB5AW553C0
Head for illuminated push button, Harmony XB5, grey bezel, orange flush, 22mm, universal LED, spring return, clear boot
This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK05 conforming to EN 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Main Group | illum push-button |
| Electrical Composition Code |
|
| Net Weight | 0.019 kg |
| Cad Overall Height | 30 mm |
| Device Presentation | basic sub-assemblies |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Cap/Operator Or Lens Colour | orange |
| Mechanical Durability | 10000000 cycles |
| Marking | unmarked |
| Station Name |
|
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 37 mm |
| Group Of Product | flush push integral LED |
| Country of Origin | France |
| Width | 30 mm |
| Height | 30 mm |
| Weight | 0.019 kg |
| Operator Additional Information | clear boot |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22 mm |
| Type Of Operator | spring return |
| Product Or Component Type | head for illuminated push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic colour plated grey |
| Operator Profile | orange flush, unmarked |
| Product Compatibility | universal LED |
| Device Short Name | ZB5 |
