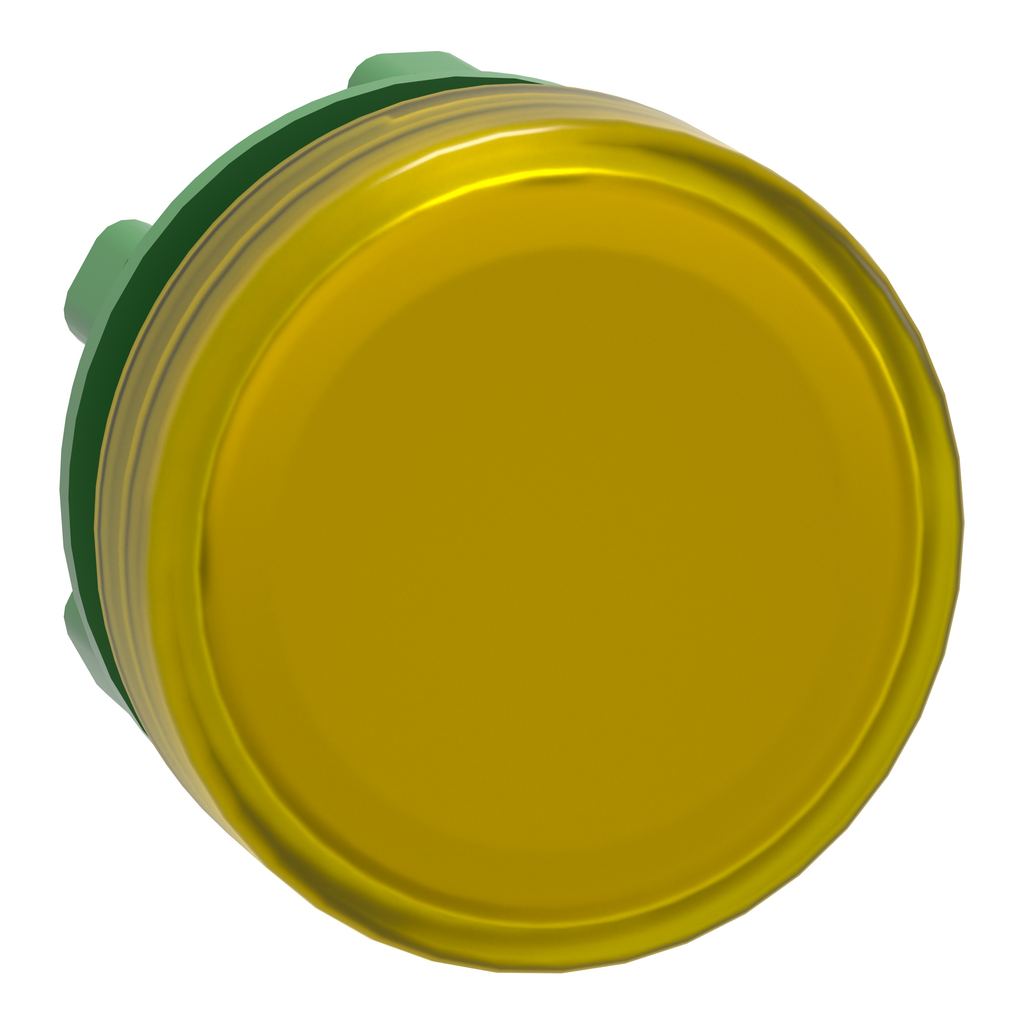

Head for pilot light, Harmony XB5, plastic, yellow, 22mm, universal LED, plain lens
This Harmony XB5, plain lens head for pilot light with universal LED is yellow. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK05 conforming to IEC 50102 |
|---|---|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308027EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2308027EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Electrical Composition Code |
|
| Net Weight | 0.017 kg |
| Cad Overall Height | 29 mm |
| Device Presentation | basic element |
| Station Name |
|
| Cad Overall Width | 29 mm |
| Cad Overall Depth | 31 mm |
| Country of Origin | France |
| Width | 29 mm |
| Height | 29 mm |
| Weight | 0.017 kg |
| Operator Additional Information | with plain lens |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22 mm |
| Product Or Component Type | head for pilot light |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | yellow |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | dark grey plastic |
| Product Compatibility | universal LED |
| Device Short Name | ZB5 |
