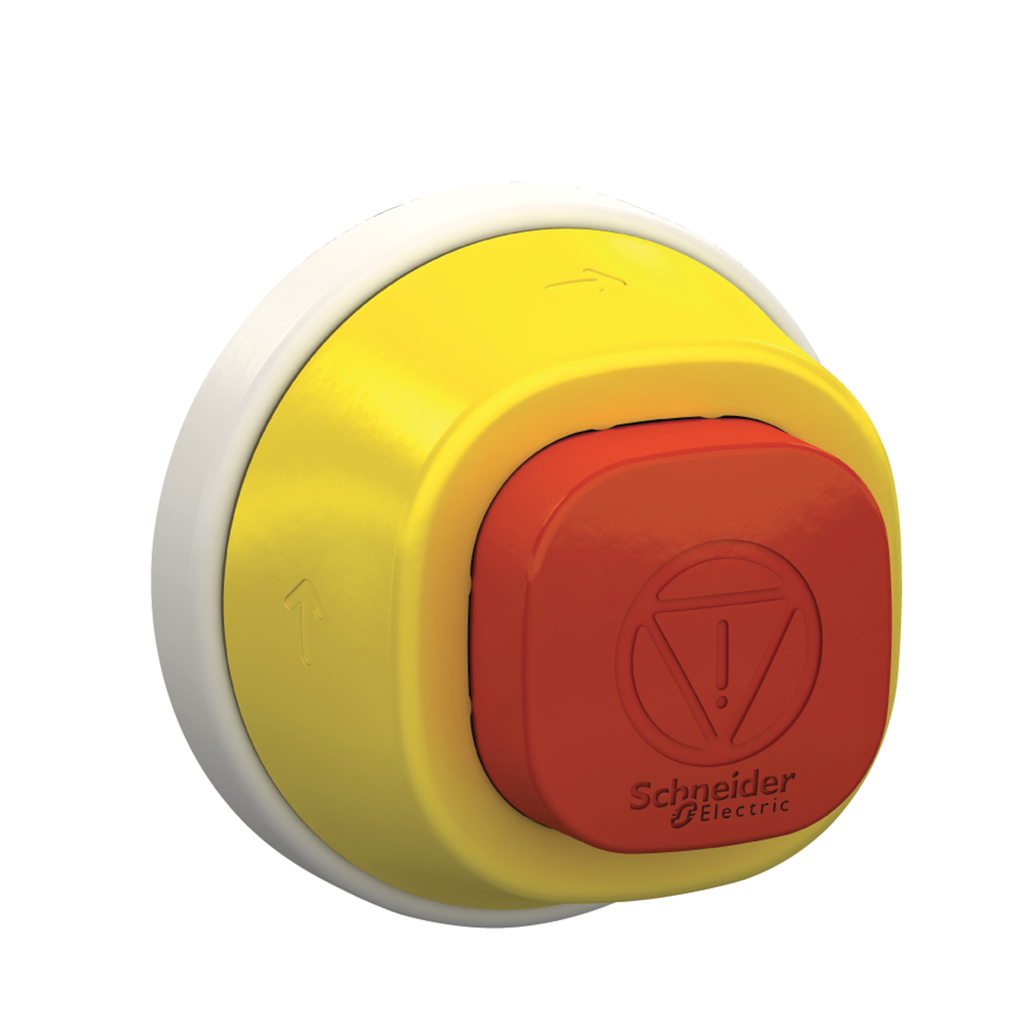

ZB5AS84W00 - Antimicrobial Emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, red

ZB5AS84W00

Antimicrobial Emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, red

This emergency stop / shutdown button head is easily combined with contact blocks and installed into standard 22mm diameter cut-outs. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm red square push button. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL Listed CSA EAC CCC
Ik Degree Of Protection	IK05 conforming to IEC 50102
Ambient Air Temperature For Operation	-40-70 °C
Standards	IEC 60947-5-1 IEC 60947-5-4 UL 508 UL 60947-5-1 UL 60947-5-5 ISO 21702 ISO 22196:2011
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 Type 13 UL 50E Type 12 UL 50E Type 4 UL 50E Type 4X UL 50E
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TH
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Composition Code	C7 4 single front mounting C8 4 single and double front mounting C11 3 single front mounting C15 1 single front mounting SF1 3 single front mounting SR1 3 single rear mounting C10 4 single and double front mounting
Net Weight	0.063 kg
Cad Overall Height	60 mm
Electrical Insulation Class	class II IEC 61140
Resistance To Electrostatic Discharge	4 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2
Mechanical Durability	300000 cycles
Compatibility Code	ZB5
Station Name	XALKW01
Cad Overall Width	60 mm
Cad Overall Depth	40 mm
Country of Origin	Czechia
Width	60 mm
Height	60 mm
Weight	0.063 kg
Product Destination	emergency stop push-button
Reset	turn to release
Range Of Product	Harmony XB5
Mounting Diameter	22 mm
Type Of Operator	trigger action and mechanical latching
Product Or Component Type	head for emergency stop push-button
Shape Of Signaling Unit Head	round
Head Type	standard
Device Presentation	basic element
Sale Per Indivisible Quantity	1
Bezel Material	plastic
Operator Profile	red square 32 mm
Device Short Name	ZB5

Antimicrobial Emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, red
