ZB5APA4C0

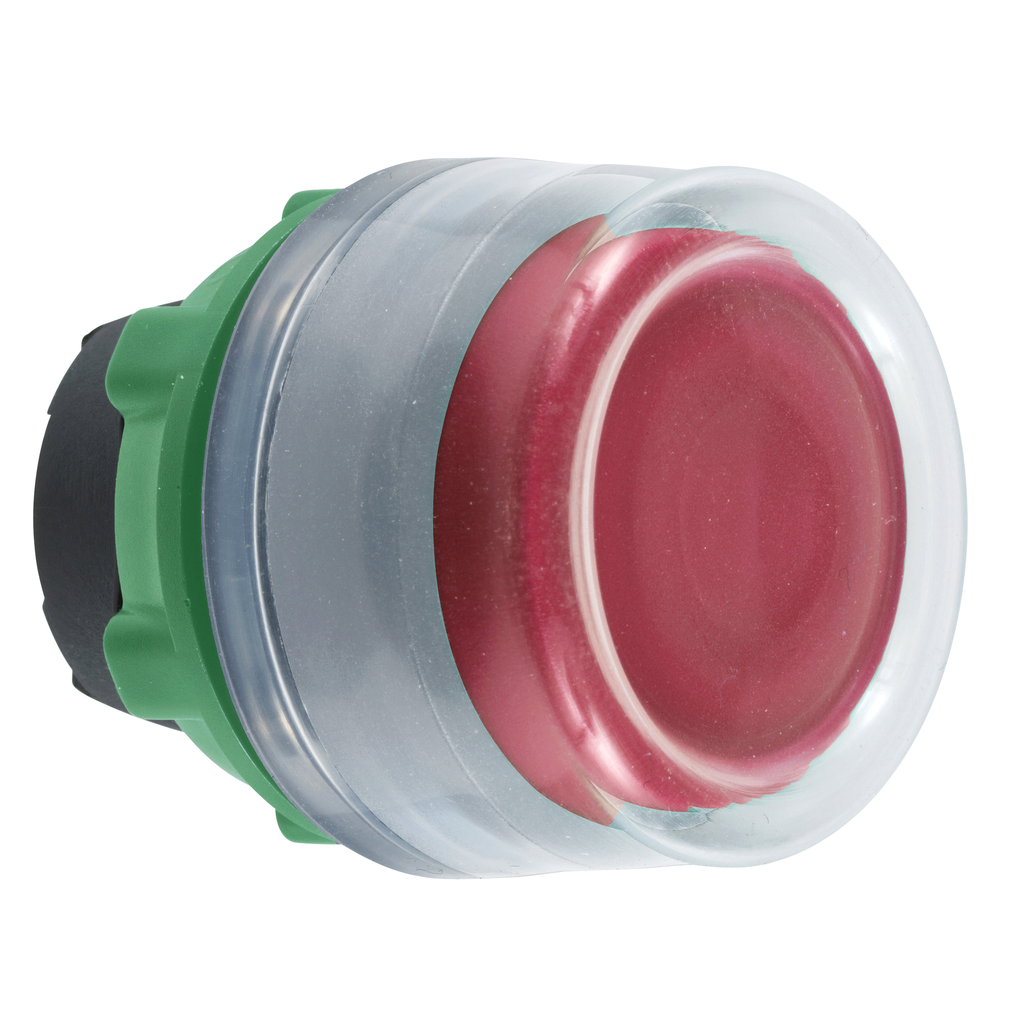

Push button head, Harmony XB5, plastic, flush, red, 22mm, spring return, clear boot, unmarked, grey bezel
This clear silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Mechanical Durability | 10000000 cycles |
|---|---|
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 37 mm |
| Cad Overall Height | 30 mm |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TH |
| Ip Degree Of Protection |
|
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Country of Origin | France |
| Width | 30 mm |
| Height | 30 mm |
| Sale Per Indivisible Quantity | 1 |
| Operator Additional Information | clear boot |
| Range Of Product | Harmony XB5 |
| Bezel Material | plastic colour plated grey |
| Operator Profile | red flush, unmarked |
| Mounting Diameter | 22 mm |
| Type Of Operator | spring return |
| Product Or Component Type | head for non-illuminated push-button |
| Shape Of Signaling Unit Head | round |
| Product Compatibility | not compatible with legend holder |
| Device Short Name | ZB5 |
| Head Type | standard |
