ZB5AK1443C0 - Head for illuminated selector switch, Harmony XB5, grey bezel, red handle, 22mm, universal LED, 3 positions, right to left

ZB5AK1443C0

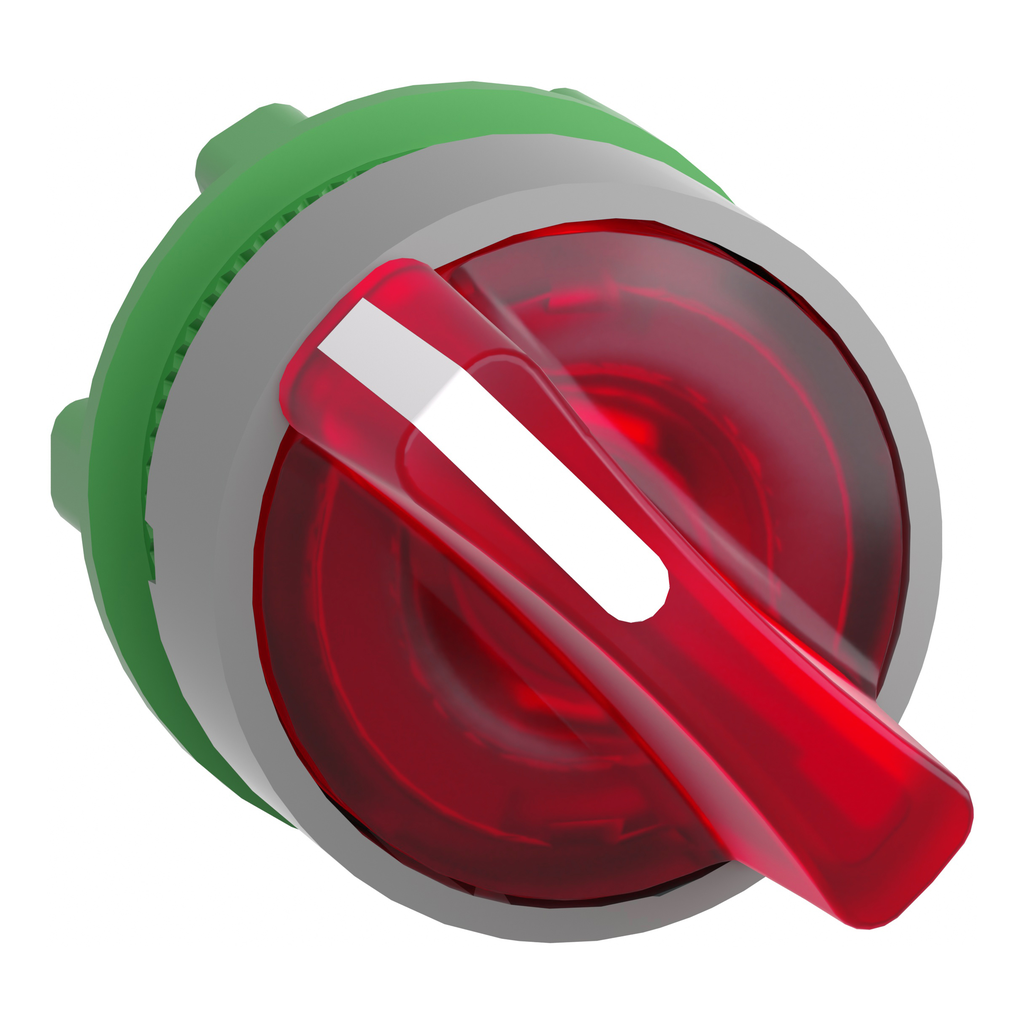

Head for illuminated selector switch, Harmony XB5, grey bezel, red handle, 22mm, universal LED, 3 positions, right to left

This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL Listed GL CSA LROS (Lloyds register of shipping) BV DNV
Ik Degree Of Protection	IK04 conforming to IEC 50102
Ambient Air Temperature For Operation	-40-70 °C
Standards	CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C8201-5-1 EN/IEC 60947-5-5 UL 508 EN/IEC 60947-1 JIS C8201-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 IP67
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class II IEC 60536
Nema Degree Of Protection	NEMA 13 NEMA 4X
Protective Treatment	TH
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Important Message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Electrical Composition Code	M3 4 single front mounting integral LED M6 2 single front mounting integral LED and transformer M10 2 single front mounting integral LED MF1 2 single front mounting integral LED MR1 2 single rear mounting integral LED M4 4 single and double front mounting integral LED
Net Weight	0.017 kg
Cad Overall Height	29 mm
Device Presentation	basic element
Mechanical Durability	500000 cycles
Station Name	XALD 1...5 cut-outs XALK 2...5 cut-outs
Cad Overall Width	29 mm
Cad Overall Depth	43 mm
Country of Origin	France
Width	29 mm
Height	29 mm
Weight	0.017 kg
Range Of Product	Harmony XB5
Mounting Diameter	22 mm
Type Of Operator	right to left spring return
Product Or Component Type	head for illuminated selector switch
Shape Of Signaling Unit Head	round
Head Type	standard
Sale Per Indivisible Quantity	1
Bezel Material	plastic colour plated grey
Operator Profile	red standard handle
Operator Position Information	2 positions 90°
Product Compatibility	universal LED
Device Short Name	ZB5

Head for illuminated selector switch, Harmony XB5, grey bezel, red handle, 22mm, universal LED, 3 positions, right to left
