ZB5AD28

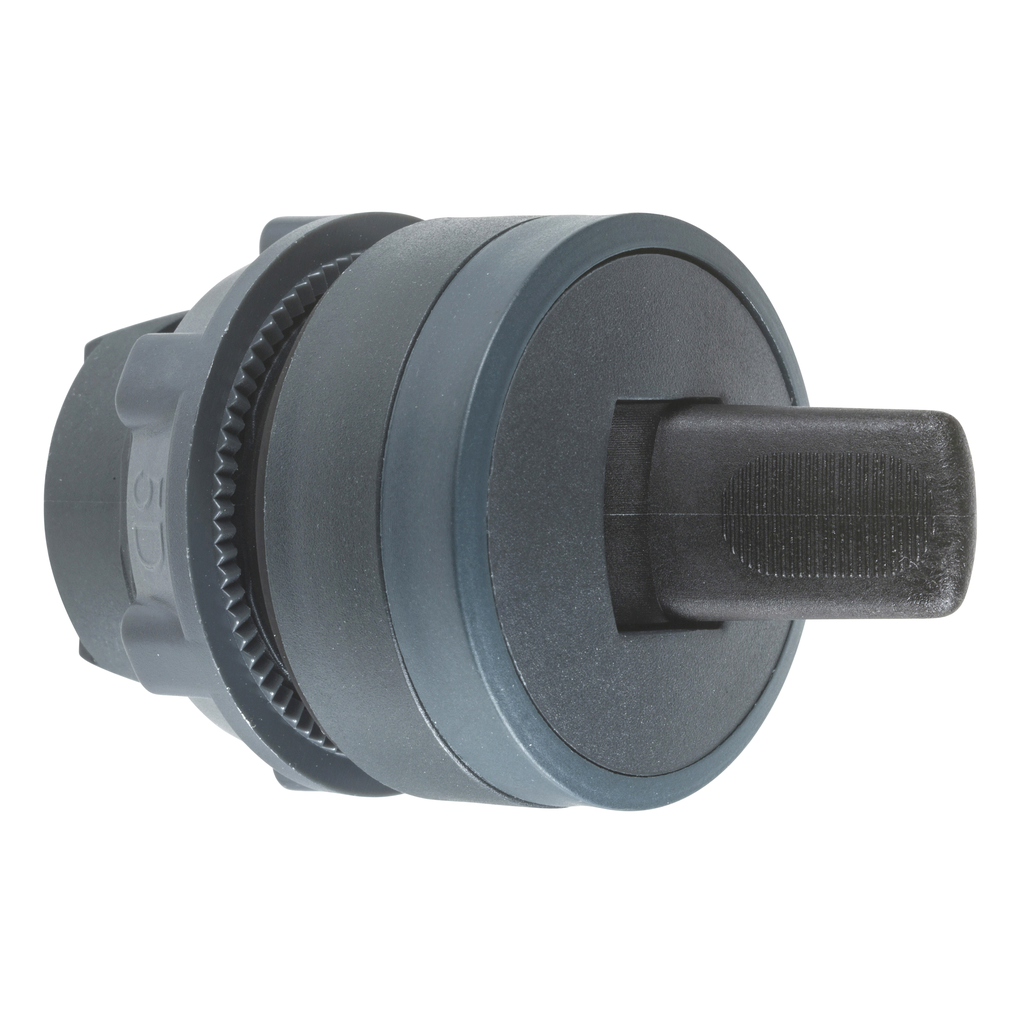

Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put
This switch head provides an ergonomic interface for controlling your machines. It is supplied with toggle switch with black lever and can easily be installed on compatible selector switch units. It provides an effective manner to switch between two conditions in various operating modes and numerous applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Operator Additional Information | black lever |
|---|---|
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22 mm |
| Type Of Operator | stay put |
| Product Or Component Type | head for selector switch |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | dark grey plastic |
| Operator Profile | black toggle switch |
| Operator Position Information | 2 positions 90° |
| Device Short Name | ZB5 |
| Warranty | 18 months |
| Electrical Composition Code |
|
| Net Weight | 0.023 kg |
| Cad Overall Height | 29 mm |
| Device Presentation | basic element |
| Mechanical Durability | 500000 cycles |
| Station Name |
|
| Cad Overall Width | 29 mm |
| Cad Overall Depth | 45 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK06 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
Documents
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Catalog Harmony XALD and XALK plastic control stations English 07/2022 - DIA5ED2130508EN (pdf)
- Harmony XB4 XB5 XB7 22 mm Push Buttons Catalog - DIA4ED2060507CEN-US+Rev.+02 (pdf)
- Catalog of Harmony XB5 plastic control and signaling units English - DIA5ED2121213EN (pdf)
- ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN) - W915599610111-A12 (pdf)
- Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions - 65013-037-26+final (pdf)
- XB4.. / XB5... Mounting, Instruction Sheet - 155997103A55_08 (pdf)
