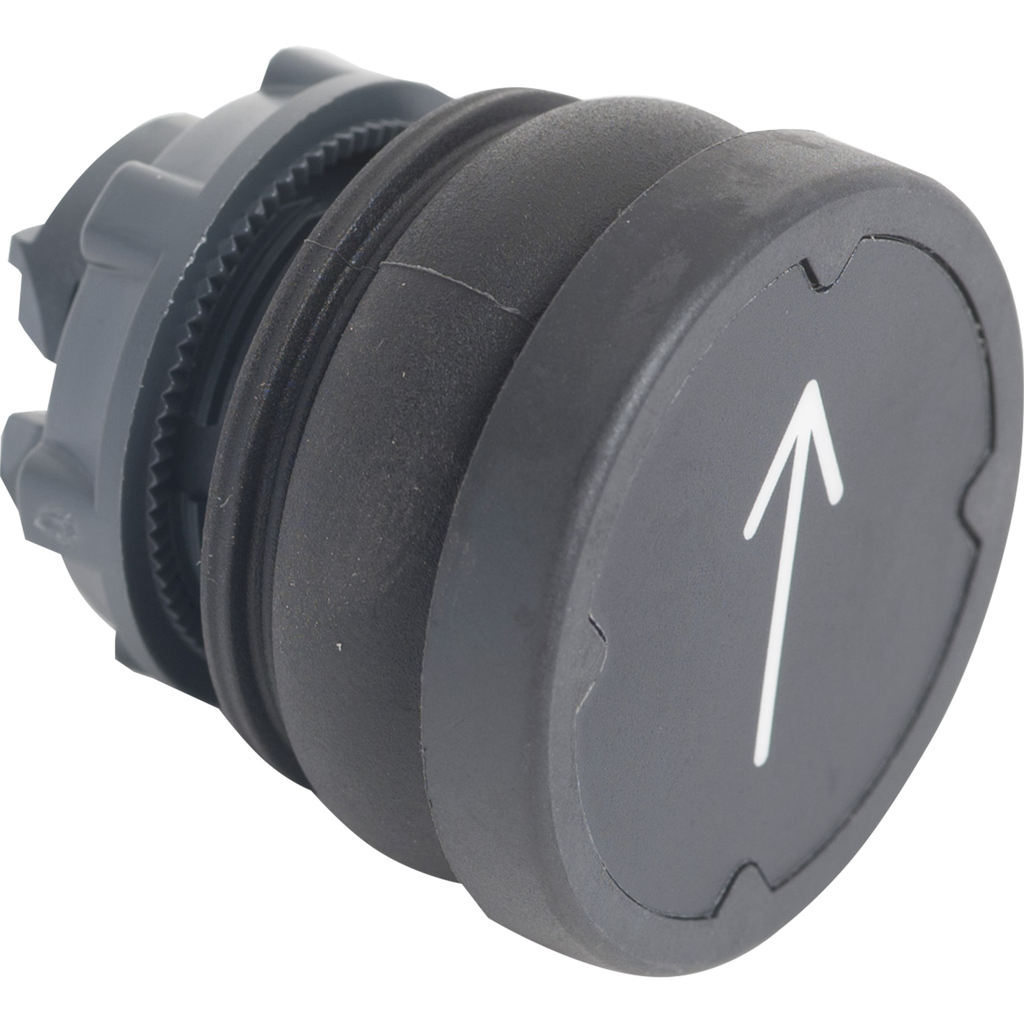

ZB5AC28043
Head for push button, Harmony XB5, XB4, pushbutton harsh environment, black, with marking
Specifications
| Electrical Composition Code |
|
|---|---|
| Net Weight | 0.024 kg |
| Cad Overall Height | 18.5 mm |
| Resistance To High Pressure Washer | 90 Pa 82.5 °C |
| Operator Profile | black flush, type H043 white) |
| Mechanical Durability | 10000000 cycles |
| Cad Overall Width | 37 mm |
| Cad Overall Depth | 37 mm |
| Country of Origin | United States |
| Width | 37 mm |
| Height | 18.5 mm |
| Weight | 0.024 kg |
| Operator Additional Information | vertical mounting |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22 mm |
| Type Of Operator | spring return |
| Product Or Component Type | head for push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | black plastic |
| Device Short Name | ZB5 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 conforming to IEC 62262 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 61140 |
