ZB5AA88C0

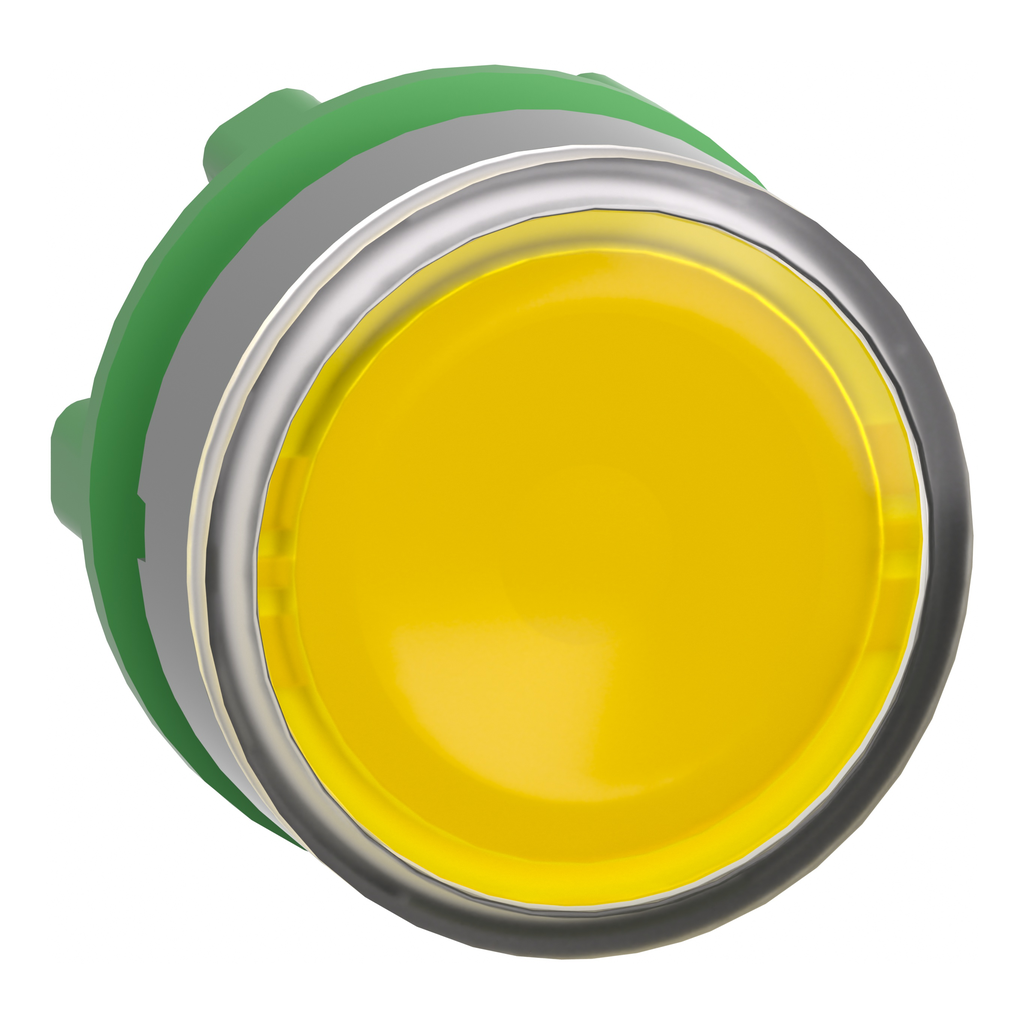

Head for illuminated push button, Harmony XB5, Harmony XALF, grey bezel, yellow flush, 22mm, universal LED,
This button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly and used for insertion of legend. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK03 conforming to EN 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Main Group | illum push-button |
| Electrical Composition Code |
|
| Net Weight | 0.018 kg |
| Cad Overall Height | 29 mm |
| Device Presentation | basic element |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Cap/Operator Or Lens Colour | yellow |
| Mechanical Durability | 10000000 cycles |
| Marking | unmarked |
| Station Name |
|
| Cad Overall Width | 29 mm |
| Cad Overall Depth | 30 mm |
| Group Of Product | flush push with inser of legend |
| Country of Origin | France |
| Width | 29 mm |
| Height | 29 mm |
| Weight | 0.018 kg |
| Operator Additional Information | for insertion of legend |
| Range Of Product |
|
| Mounting Diameter | 22 mm |
| Type Of Operator | spring return |
| Product Or Component Type | head for illuminated push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic colour plated grey |
| Operator Profile | yellow flush, unmarked |
| Product Compatibility | universal LED |
| Device Short Name | ZB5 |
