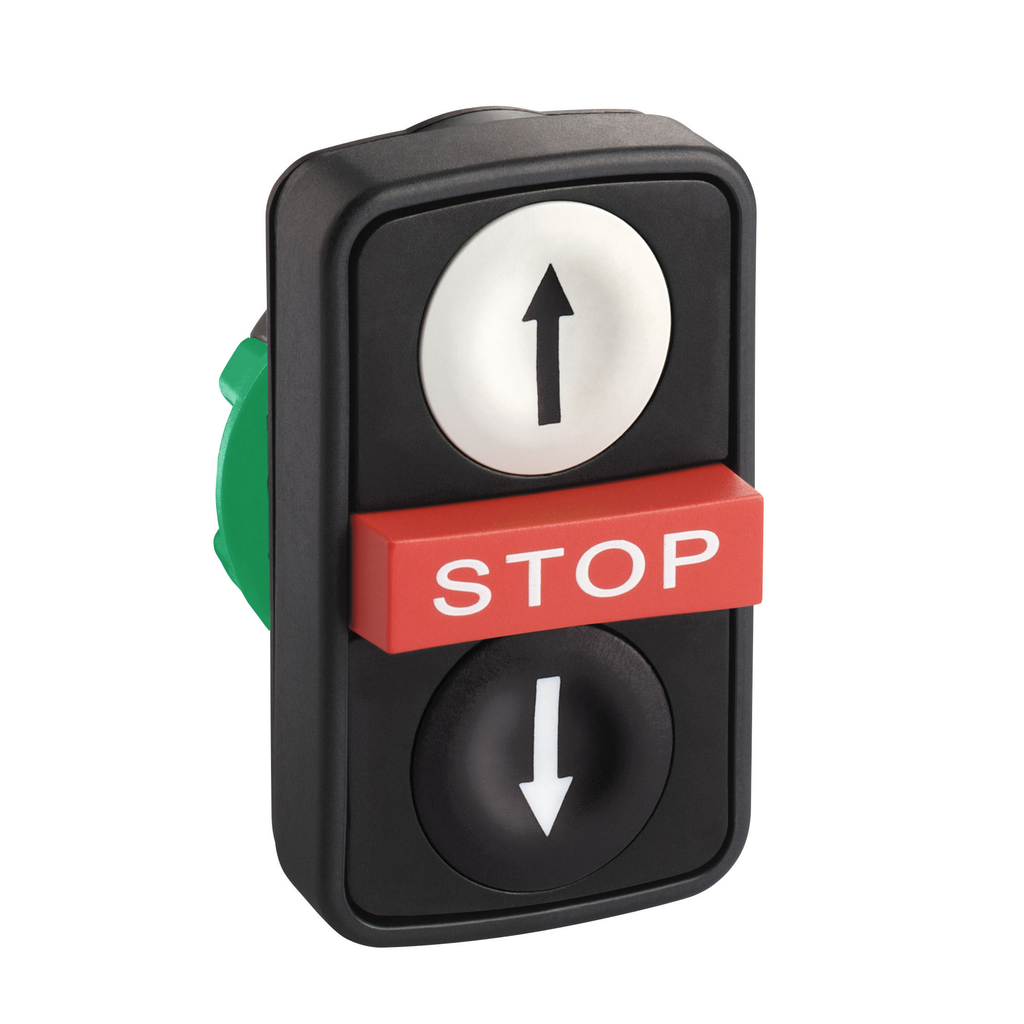

Triple headed push button head, Harmony XB5, plastic, 22mm, 1 white flush UP ARROW + 1 red projecting STOP + 1 black flush DOWN ARROW
This Harmony XB5, triple head has 1 black and 2 white buttons, operates with a spring return mechanism. It is marked with a "up arrow", "STOP" and "down arrow" symbols. It consits in 3-function head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Multiple buttons allows single unit to perform a wide array of control functions, reducing cost of multiple cut-outs in control cabinets.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK05 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2303008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Electrical Composition Code |
|
| Colour Of Marking |
|
| Net Weight | 0.023 kg |
| Cad Overall Height | 50 mm |
| Device Presentation | basic element |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Operator Profile |
|
| Mechanical Durability | 1000000 cycles |
| Station Name | XALD 1 cut-out |
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 35 mm |
| Country of Origin | France |
| Width | 30 mm |
| Height | 50 mm |
| Weight | 0.023 kg |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22 mm |
| Type Of Operator | spring return |
| Operators Description | white ''up arrow'' - black ''down arrow'' - red ''STOP'' |
| Product Or Component Type | head for triple-headed push-button |
| Shape Of Signaling Unit Head | rectangular |
| Operator Profile | 2 flush - 1 central projecting STOP push-buttons |
| Head Type | standard |
| Bezel Material | dark grey plastic |
| Device Short Name | XB5 |
