ZB5AA331C0

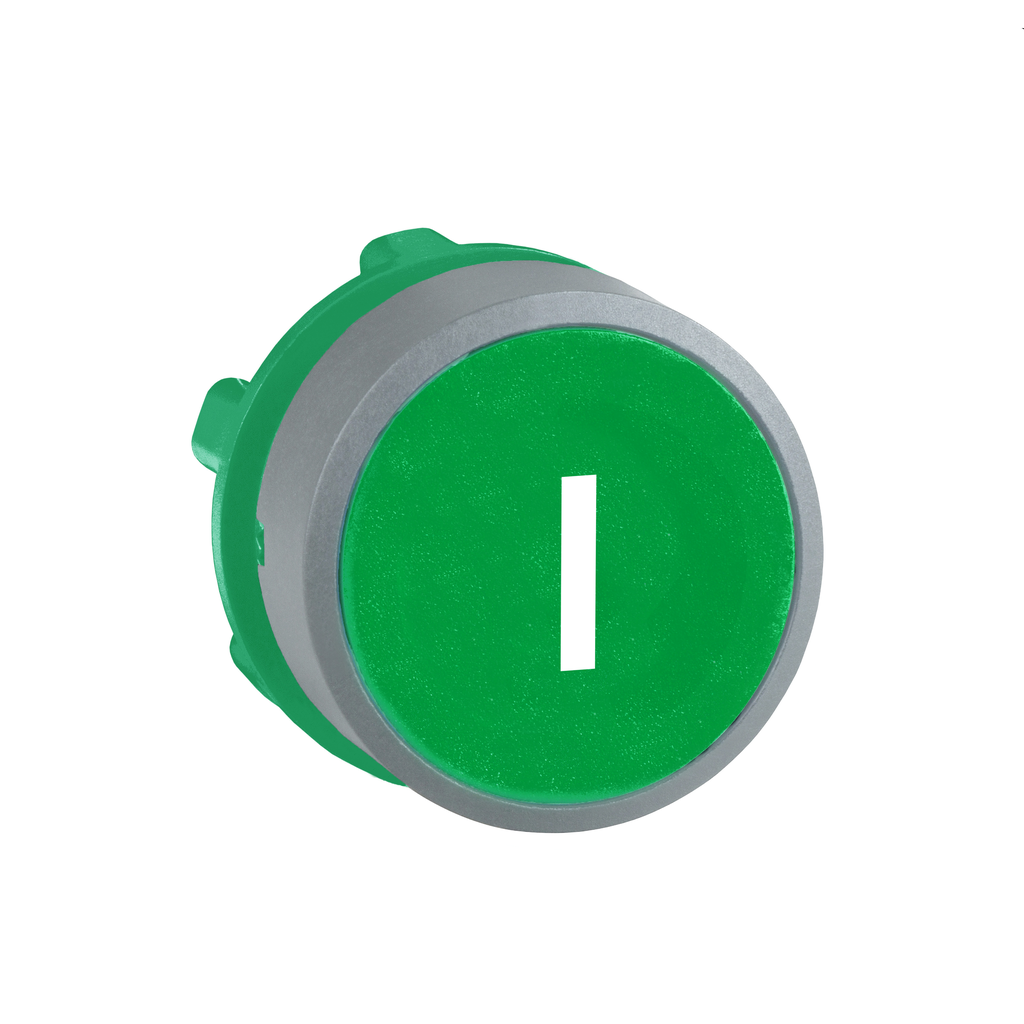

Push button head, Harmony XB5, plastic, flush, green, 22mm, spring return, marked I, grey bezel
This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | France |
| Width | 29 mm |
| Height | 29 mm |
| Weight | 0.018 kg |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22 mm |
| Type Of Operator | spring return |
| Product Or Component Type | head for non-illuminated push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic colour plated grey |
| Operator Profile | green flush, I white) |
| Device Short Name | ZB5 |
| Electrical Composition Code |
|
| Net Weight | 0.018 kg |
| Cad Overall Height | 29 mm |
| Mechanical Durability | 10000000 cycles |
| Station Name |
|
| Cad Overall Width | 29 mm |
| Cad Overall Depth | 28 mm |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
