ZB4SZ3

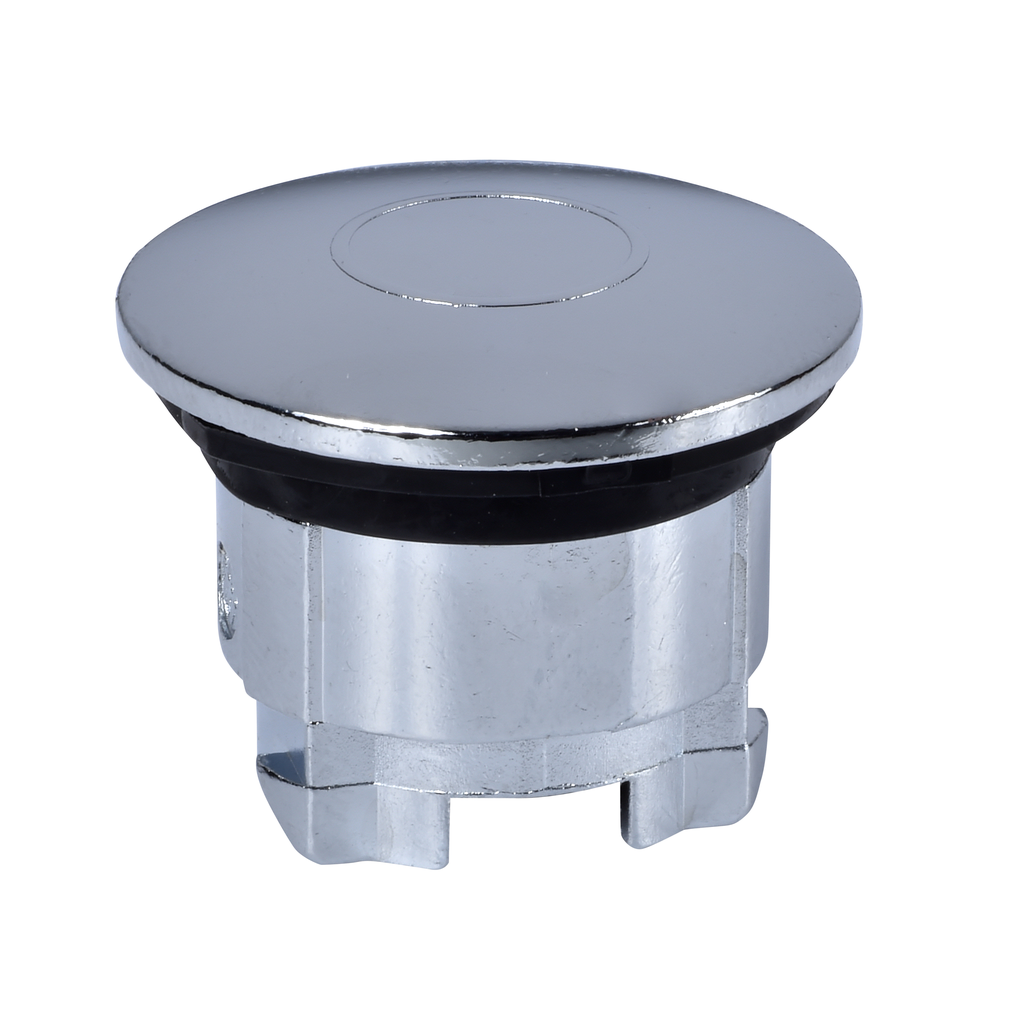

Blanking plug, Harmony XB4, round, metal, chromium plated, 22mm
This Harmony XB4, metal blanking plug is compatible with Harmony XB4, pushbuttons with flush push. This metal blanking plugis designed as an option to fit with your pushbutton units when no function is needed for machine to operate. It is compatible with standard 22mm XB4 control and signaling unitsMetal bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Weight | 0.023 kg |
| Range Of Product | Harmony XB4 |
| Accessory / Separate Part Category | installation accessory |
| Product Or Component Type | blanking plug |
| Product Compatibility |
|
| Accessory / Separate Part Type | blanking plug |
| Accessory / Separate Part Destination | Ø 22 mm control and signalling units |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Type Of Operator | standard handle |
| Shape Of Signaling Unit Head | round |
| Material | metal |
| Net Weight | 0.023 kg |
| Head Type | standard |
| Sale Per Indivisible Quantity | 10 |
| Additional Information | fixing collar ZB4BZ009 required for mounting must be ordered separately |
| Warranty | 18 months |
