ZB4FW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 30mm, spring return, universal LED, unmarked

ZB4FW363

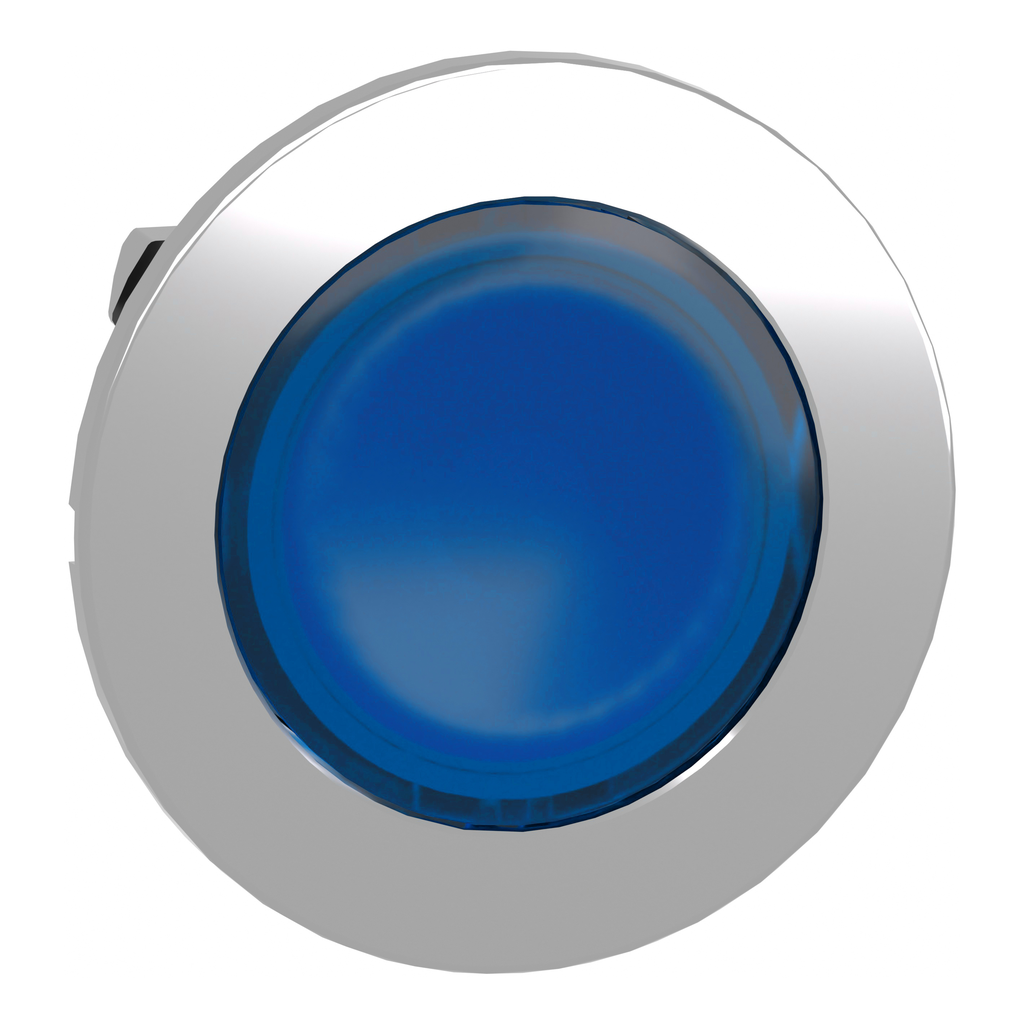

Head for illuminated push button, Harmony XB4, metal, blue flush, 30mm, spring return, universal LED, unmarked

This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL Listed CSA CCC EAC
Ik Degree Of Protection	IK06 conforming to IEC 62262
Ambient Air Temperature For Operation	-40-70 °C
Standards	CSA C22.2 No 14 IEC 60947-5-1 IEC 60947-5-4 UL 508 IEC 60947-1 JIS C8201-5-1 CE JIS C8201-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 Type 13 UL 50 E Type 12 UL 50 E Type 4 UL 50 E Type 4X UL 50 E
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class I IEC 60536
Protective Treatment	TH
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Important Message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Electrical Composition Code	M1 6 single front mounting integral LED M2 6 single and double front mounting integral LED M6 2 single front mounting integral LED and transformer M10 2 single front mounting integral LED
Net Weight	0.06 kg
Cad Overall Height	36.6 mm
Device Presentation	basic element
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Mechanical Durability	10000000 cycles
Cad Overall Width	36.6 mm
Cad Overall Depth	31 mm
Country of Origin	France
Width	36.6 mm
Height	36.6 mm
Weight	0.06 kg
Operator Additional Information	with plain lens
Range Of Product	Harmony XB4
Mounting Diameter	30.5 mm
Type Of Operator	spring return
Product Or Component Type	head for illuminated push-button
Shape Of Signaling Unit Head	round
Cap/Operator Or Lens Colour	blue
Head Type	built-in-flush
Sale Per Indivisible Quantity	1
Bezel Material	chromium plated metal
Operator Profile	blue flush, unmarked
Product Compatibility	universal LED
Device Short Name	ZB4F
