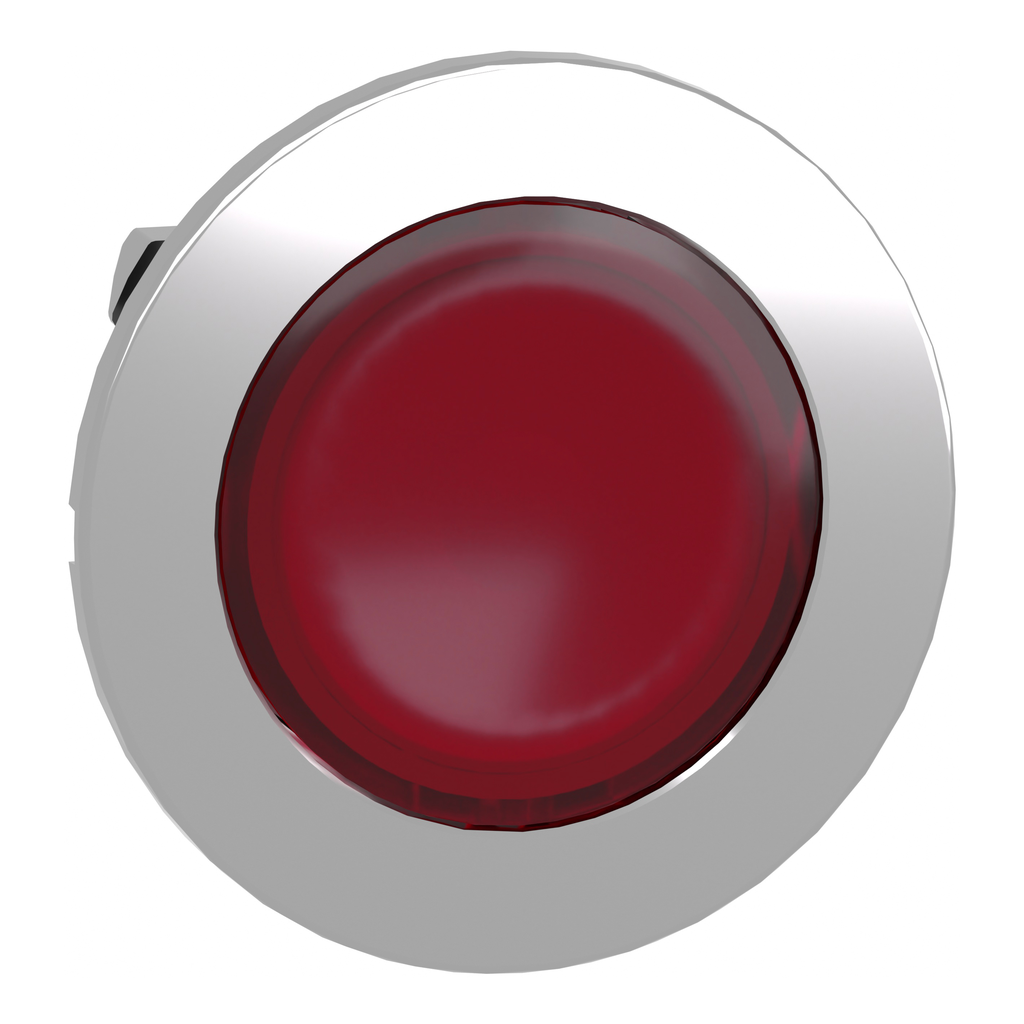

ZB4FV043 - Head for pilot light, Harmony XB4, flush mounted, red, 30mm, with plain lens, universal LED

ZB4FV043

Head for pilot light, Harmony XB4, flush mounted, red, 30mm, with plain lens, universal LED

This pilot light head for universal LED provides clear visual feedback on the status of your machines. It is easily installed into a 30.5mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL Listed CSA CCC EAC
Ik Degree Of Protection	IK06 conforming to IEC 50102
Ambient Air Temperature For Operation	-40-70 °C
Standards	EN/IEC 60947-5-4 EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 EN/IEC 60947-1 JIS C8201-5-1 CE JIS C8201-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 Type 13 UL 50 E Type 12 UL 50 E Type 4 UL 50 E Type 4X UL 50 E
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class I IEC 60536
Protective Treatment	TH
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Important Message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Electrical Composition Code	P1 front mounting integral LED P2 front mounting integral LED and transformer
Net Weight	0.058 kg
Cad Overall Height	36.6 mm
Device Presentation	basic element
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Cad Overall Width	36.6 mm
Cad Overall Depth	31 mm
Country of Origin	France
Width	36.6 mm
Height	36.6 mm
Weight	0.058 kg
Operator Additional Information	with plain lens
Range Of Product	Harmony XB4
Mounting Diameter	30.5 mm
Product Or Component Type	head for pilot light
Shape Of Signaling Unit Head	round
Cap/Operator Or Lens Colour	red
Head Type	built-in-flush
Sale Per Indivisible Quantity	1
Bezel Material	chromium plated metal
Product Compatibility	universal LED
Device Short Name	ZB4F
