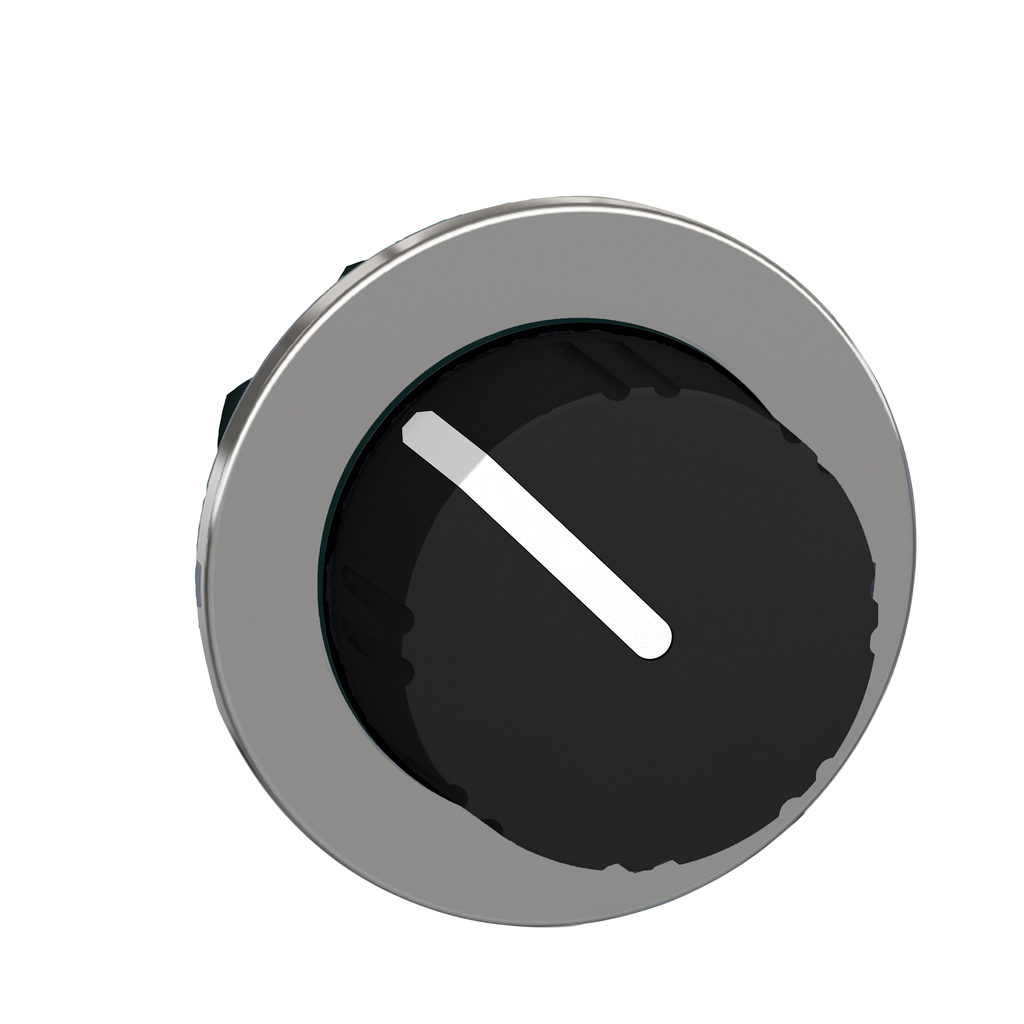

ZB4FD29 - Head for selector switch, Harmony XB4, chromium, black knurled knob, flush, 30mm, 2 positions, stay put

ZB4FD29

Head for selector switch, Harmony XB4, chromium, black knurled knob, flush, 30mm, 2 positions, stay put

This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	France
Width	36.6 mm
Height	36.6 mm
Weight	0.080 kg
Range Of Product	Harmony XB4
Mounting Diameter	30.5 mm
Type Of Operator	stay put
Product Or Component Type	head for selector switch
Shape Of Signaling Unit Head	round
Head Type	built-in-flush
Sale Per Indivisible Quantity	1
Bezel Material	chromium plated metal
Operator Profile	black knurled knob
Operator Position Information	2 positions 90°
Device Short Name	ZB4F
Electrical Composition Code	C3 6 single front mounting C4 6 single and double front mounting C5 5 single front mounting C6 5 single and double front mounting C7 4 single front mounting C8 4 single and double front mounting C11 3 single front mounting C15 1 single front mounting
Net Weight	0.080 kg
Cad Overall Height	36.6 mm
Device Presentation	basic element
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Mechanical Durability	1000000 cycles
Cad Overall Width	36.6 mm
Cad Overall Depth	47 mm
Product Certifications	UL Listed CSA CCC EAC
Ik Degree Of Protection	IK06 conforming to IEC 50102
Ambient Air Temperature For Operation	-40-70 °C
Standards	CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-5-4 UL 508 EN/IEC 60947-1 JIS C8201-5-1 CE JIS C8201-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 Type 13 UL 50 E Type 12 UL 50 E Type 4 UL 50 E Type 4X UL 50 E
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class I IEC 60536
Protective Treatment	TH
