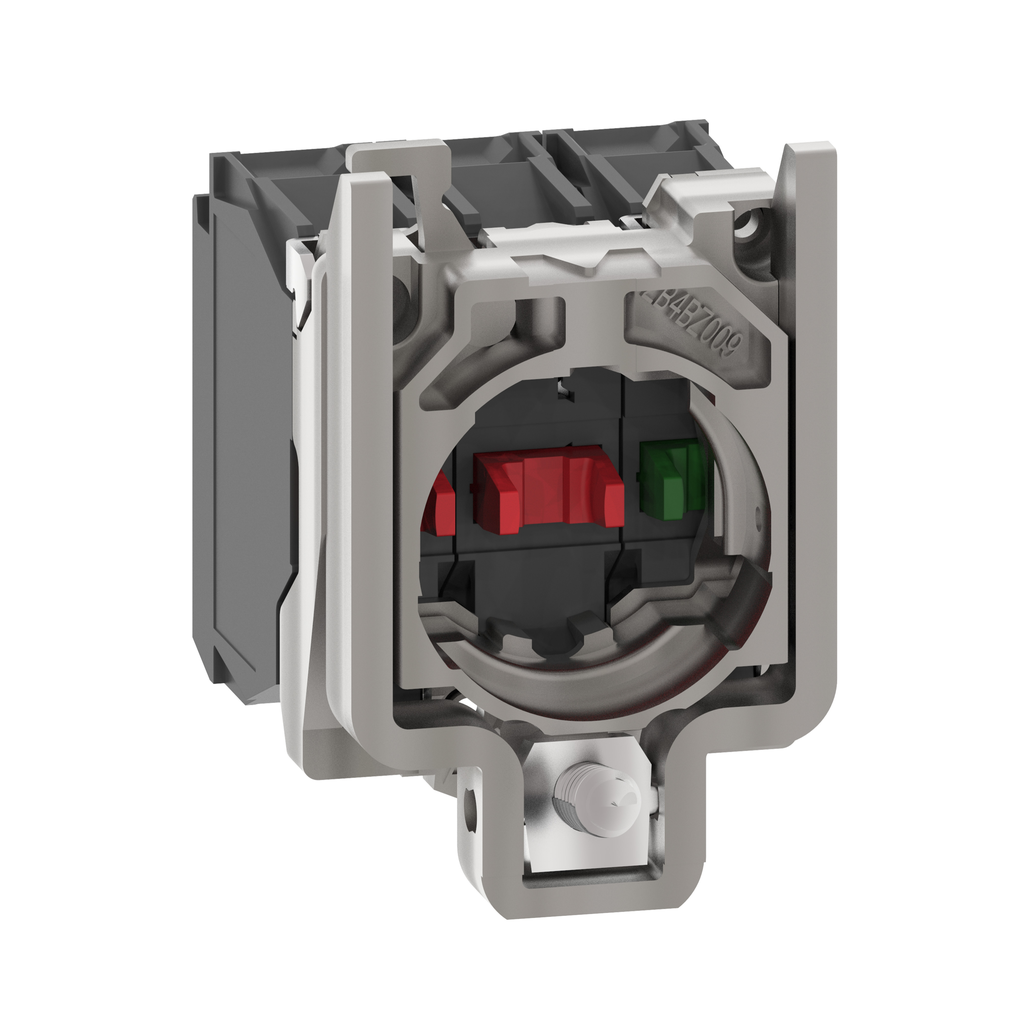

ZB4BZ141 – Single contact block with body fixing collar, Harmony XB4, metal, screw clamp terminal, 1NO 2NC
ZB4BZ141
Single contact block with body fixing collar, Harmony XB4, metal, screw clamp terminal, 1NO+2NC

This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. It has 1 x NO + 2 x NC contacts and a chromium-plated metal bezel. It is compatible with Harmony XB4 This body fixing collar is pre-mounted with a contact block. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • LROS (Lloyds register of shipping)
  • CSA
  • UL
  • DNV
  • GL
  • BV
Ambient Air Temperature For Operation -40-70 °C
Standards
  • IEC 60947-5-4
  • IEC 60947-5-1
  • IEC 60947-5-5
  • JIS C8201-5-1
  • IEC 60947-1
  • CSA C22.2 No 14
  • UL 508
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection IP20 IEC 60529
Ambient Air Temperature For Storage -40-70 °C
Protective Treatment TH
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2308035EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2308035EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Usage standard contacts
Terminals Description Iso N°1 (11-12)NC
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Net Weight 0.072 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Cad Overall Height 47 mm
Device Presentation basic sub-assemblies
Electrical Durability
  • 10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 10000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 10000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
Operating Torque 0.05 N.m NO changing electrical state
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability 5000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4
  • λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Cad Overall Width 30 mm
Cad Overall Depth 37 mm
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Country of Origin France
Width 30 mm
Height 47 mm
Weight 0.072 kg
Range Of Product Harmony XB4
Contact Block Type single
Product Or Component Type complete body/contact assembly
Fixing Collar Material zamak
Head Type standard
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Contacts Type And Composition 1 NO + 2 NC
Sale Per Indivisible Quantity 1
Contact Operation slow-break
Device Composition
  • body
  • fixing collar
Device Short Name ZB4
