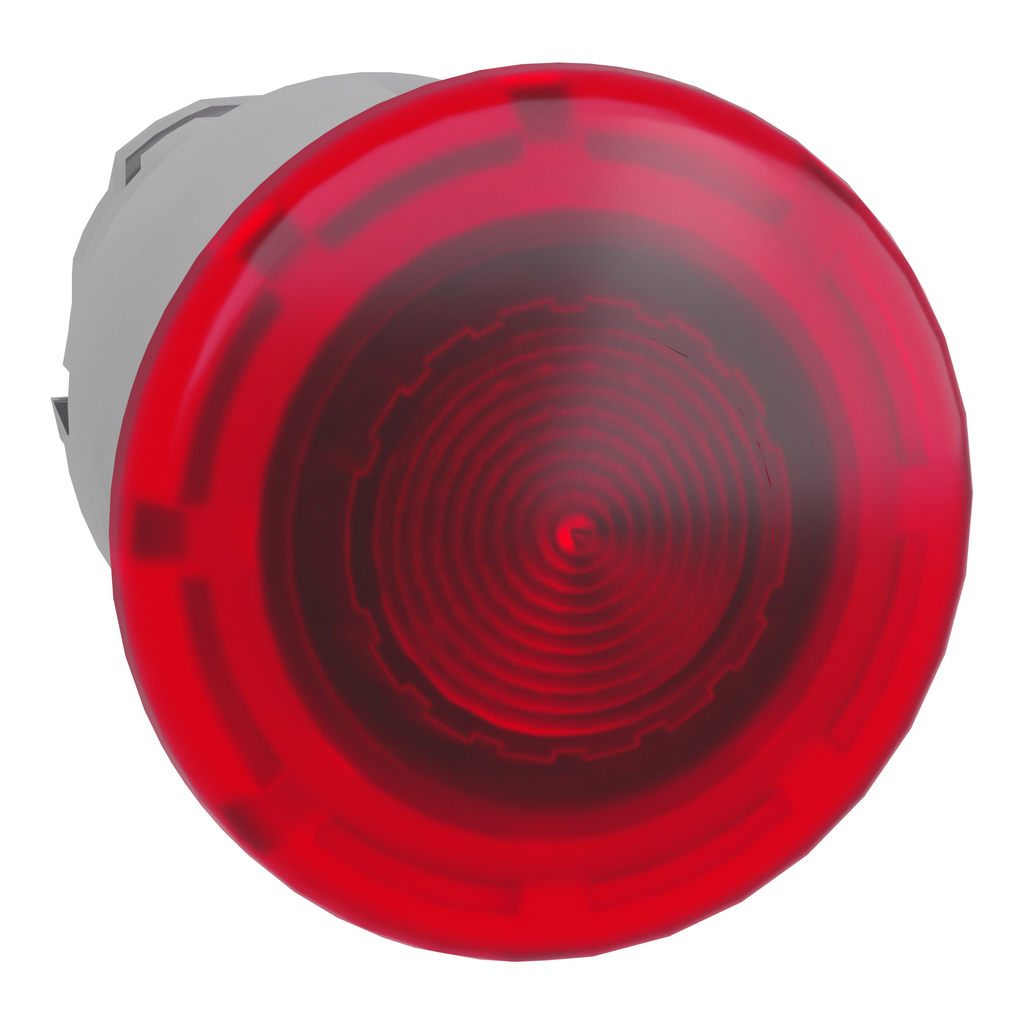

ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull

ZB4BW643

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull

This illuminated 40mm mushroom shape push button head for universal LED is part of of the range diameter 22mm, Harmony XB4. It is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CSA GL UL Listed BV LROS (Lloyds register of shipping) DNV
Ik Degree Of Protection	IK05 conforming to IEC 62262
Ambient Air Temperature For Operation	-40-70 °C
Standards	JIS C8201-5-1 IEC 60364-5-53 IEC 60947-5-5 IEC 60947-5-1 IEC 60947-5-4 IEC 60947-1 CSA C22.2 No 14 UL 508 JIS C8201-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 IP69 IP69K
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class I IEC 60536
Nema Degree Of Protection	NEMA 13 NEMA 4X
Protective Treatment	TH
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1808008EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Circularity Profile	ENVEOLI1808008EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Important Message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Electrical Composition Code	M6 2 single front mounting integral LED and transformer M10 2 single front mounting integral LED M3 4 single front mounting integral LED M4 4 single and double front mounting integral LED
Net Weight	0.051 kg
Cad Overall Height	40 mm
Device Presentation	basic sub-assemblies
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Mechanical Durability	500000 cycles
Cad Overall Width	40 mm
Cad Overall Depth	53 mm
Country of Origin	United States
Width	40 mm
Height	40 mm
Weight	0.051 kg
Reset	push-pull
Range Of Product	Harmony XB4
Mounting Diameter	22.5 mm
Type Of Operator	mechanical latching
Product Or Component Type	head for illuminated emergency switching off push-button
Shape Of Signaling Unit Head	round
Cap/Operator Or Lens Colour	red
Head Type	standard
Sale Per Indivisible Quantity	1
Bezel Material	chromium plated metal
Operator Profile	red mushroom Ø 40 mm, unmarked
Product Compatibility	universal LED
Device Short Name	ZB4

Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull
