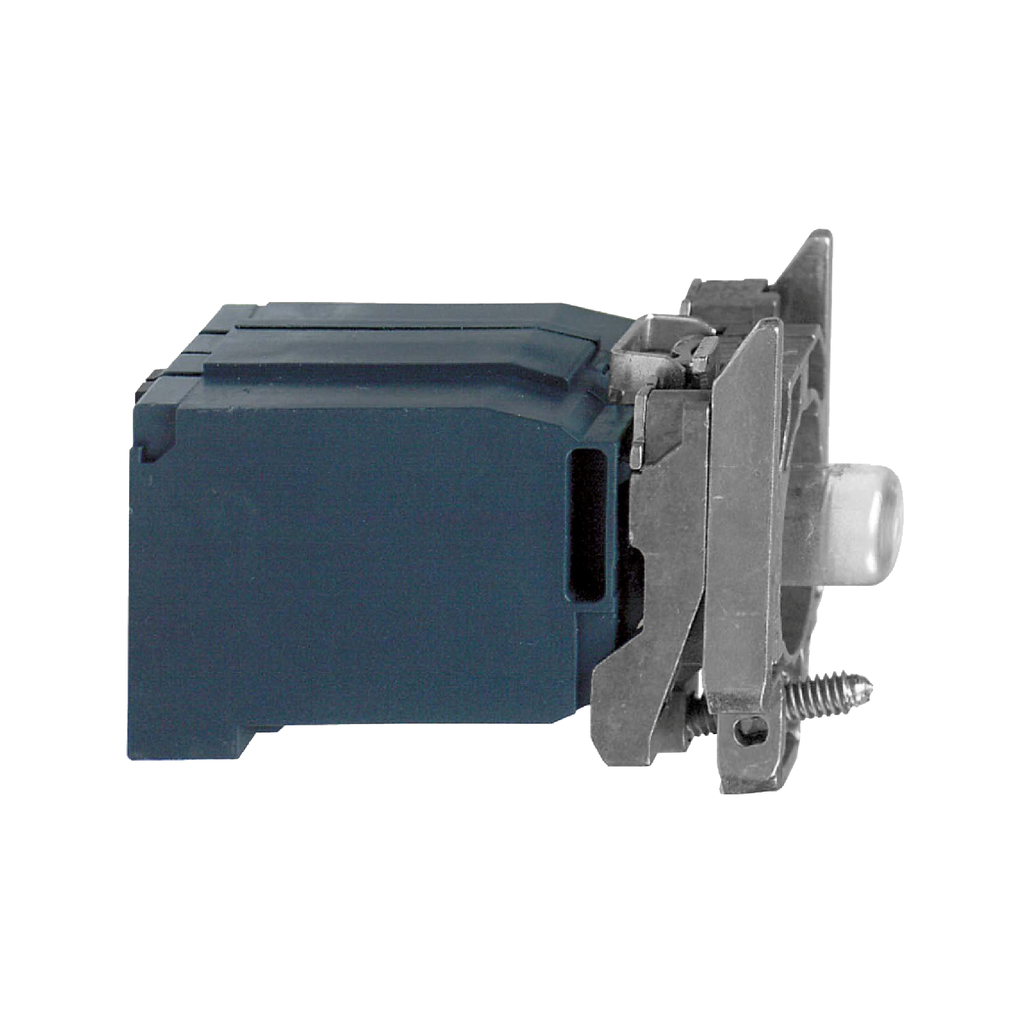

Light block with body fixing collar, Harmony XB4, metal, with BA9s bulb, 110...120V AC
This Harmony XB4, light block with body/fixing collar operates with BA9s base Integral LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -40-55 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class I IEC 60536 |
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mounting Of Block | front mounting |
| Terminals Description Iso N°1 | (X1-X2)PL |
| Electrical Composition Code |
|
| Net Weight | 0.13 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Cad Overall Height | 47 mm |
| Device Presentation | basic sub-assemblies |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Signalling Type | steady |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 60 mm |
| Shape Of Screw Head |
|
| Country of Origin | France |
| Width | 30 mm |
| Height | 47 mm |
| Weight | 0.13 kg |
| Range Of Product | Harmony XB4 |
| Light Source | incandescent |
| Light Block Supply | via integral transformer 1.2 VA 6 V |
| Product Or Component Type | complete body/light block assembly |
| Fixing Collar Material | zamak |
| Connections - Terminals |
|
| Sale Per Indivisible Quantity | 1 |
| Device Short Name | ZB4 |
| [Us] Rated Supply Voltage | 110...120 V AC 50/60 Hz |
| Bulb Base | BA 9s |
