Head for pilot light, Harmony XB4, 5 colours choice, 22mm, with plain lens, universal LED

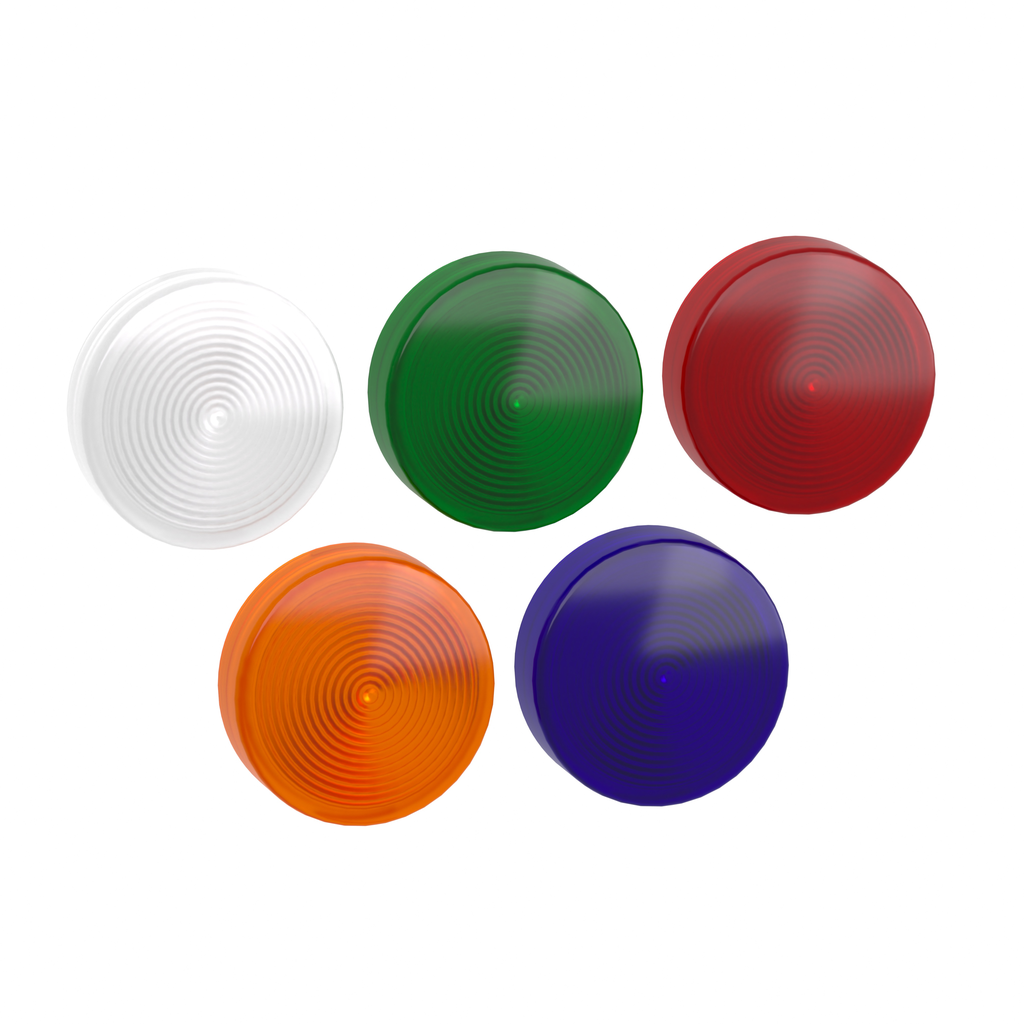

This Harmony XB4, plain lens head for pilot light with universal LED provides 5 colors of len: white, green, red, orange, blue. This heads set for universal LED pilot light comes with 5 different colors for multi-purposes use of machine operation. It is designed to last without maintenance for a bright indication of process and is clearly distinguishable visually at a distance thanks to clear colors of lens, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK06 conforming to IEC 50102 |
|---|---|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class I IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308026EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2308026EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Electrical Composition Code |
|
| Net Weight | 0.026 kg |
| Cad Overall Height | 29 mm |
| Device Presentation | basic element |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Cad Overall Width | 29 mm |
| Cad Overall Depth | 30 mm |
| Country of Origin | Mexico |
| Width | 29 mm |
| Height | 29 mm |
| Weight | 0.026 kg |
| Operator Additional Information | with plain lens |
| Range Of Product | Harmony XB4 |
| Mounting Diameter | 22 mm |
| Product Or Component Type | head for pilot light |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | 5 colours choice |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | chromium plated metal |
| Product Compatibility | universal LED |
| Device Short Name | ZB4 |
