ZB4BT84TQ

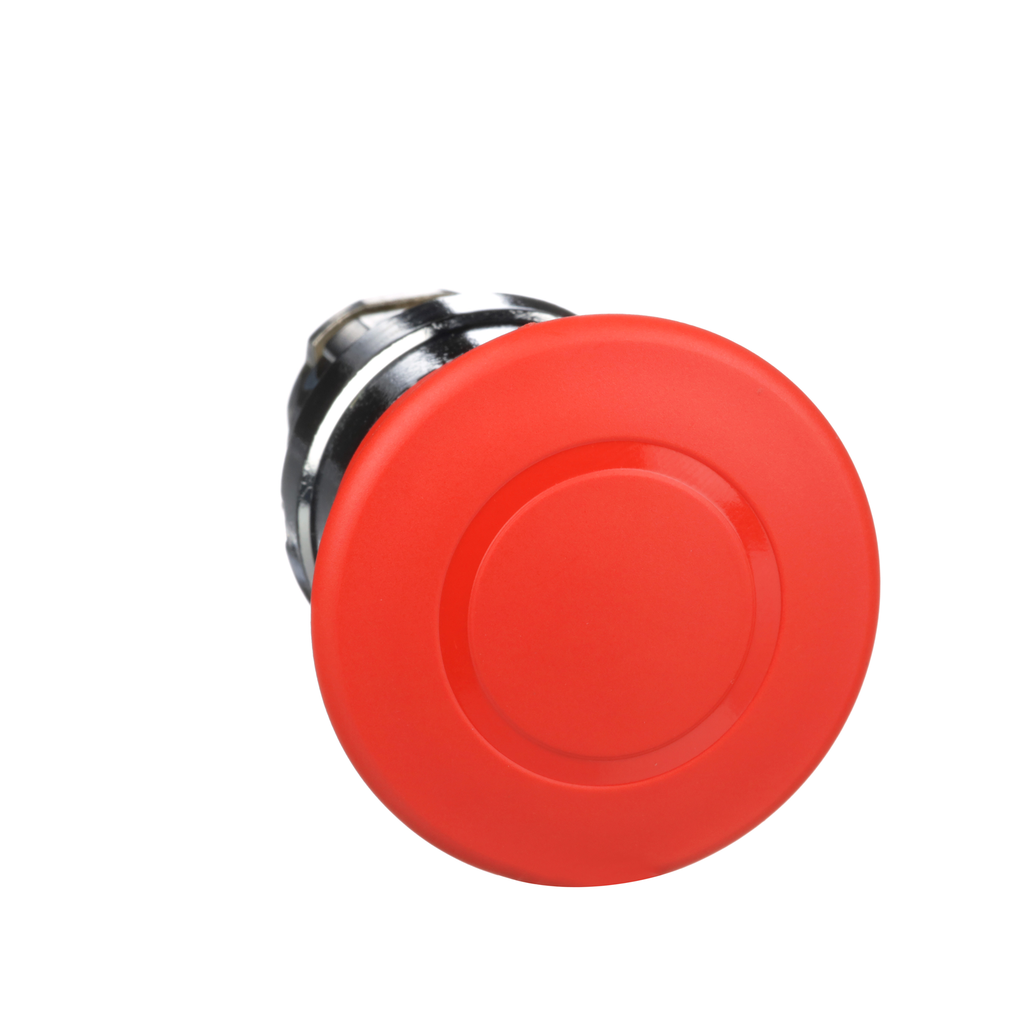

Head for emergency switching off push button, Harmony XB4, red, mushroom 30mm, 22mm, trigger latching push pull to release, unmarked, set of 100
This emergency stop / shutdown button head, is easily combined with contact blocks and installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is sold by 100 units High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK06 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class I IEC 61140 |
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2201004EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2201004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Electrical Composition Code |
|
| Net Weight | 0.078 kg |
| Cad Overall Height | 40 mm |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Mechanical Durability | 300000 cycles |
| Cad Overall Width | 40 mm |
| Cad Overall Depth | 56 mm |
| Country of Origin | Czechia |
| Width | 40 mm |
| Height | 40 mm |
| Weight | 0.078 kg |
| Reset | push-pull |
| Range Of Product | Harmony XB4 |
| Mounting Diameter | 22 mm |
| Type Of Operator | trigger action and mechanical latching |
| Product Or Component Type | head for emergency switching off push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Sale Per Indivisible Quantity | 100 |
| Bezel Material | chromium plated metal |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Device Short Name | ZB4 |
