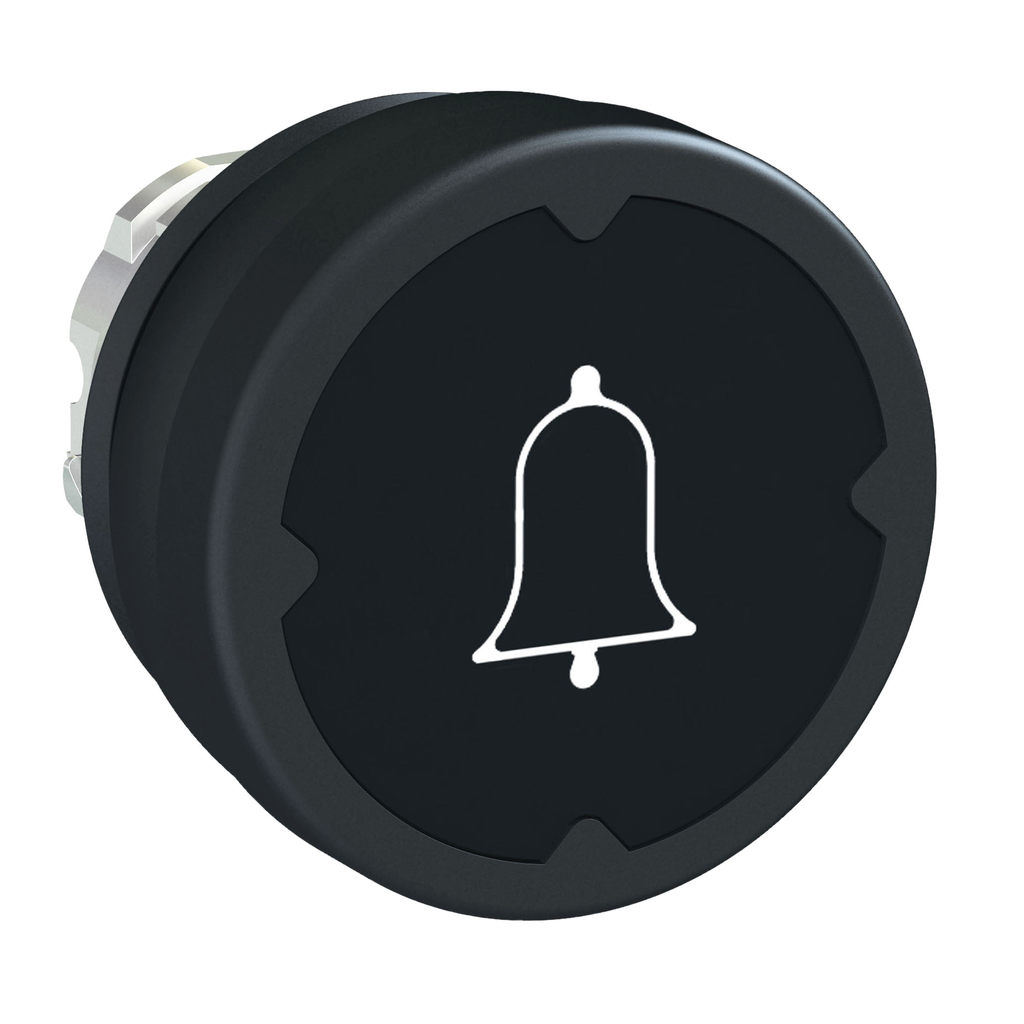

ZB4BC28001
Head for push button, Harmony XB4, push button harsh environment, black, with marking type H001
Specifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK06 conforming to IEC 62262 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Ip Degree Of Protection |
|
| Resistance To High Pressure Washer | 90 Pa 82.5 °C |
| Ambient Air Temperature For Storage | -40-85 °C |
| Nema Degree Of Protection |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308035EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Operator Additional Information | vertical mounting |
| Main Group | harsh environment |
| Type Of Operator | spring return |
| Electrical Composition Code |
|
| Colour Of Marking | white |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Shape Of Signaling Unit Head | round |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Net Weight | 0.036 kg |
| Cad Overall Height | 18.5 mm |
| Operator Profile | black flush, type H001 white) |
| Mechanical Durability | 10000000 cycles |
| Marking | type H001 |
| Electrical Shock Protection Class | class I IEC 61140 |
| Cad Overall Width | 37 mm |
| Cad Overall Depth | 37 mm |
| Group Of Product | flush marked type H001 |
| Country of Origin | France |
| Width | 37 mm |
| Height | 18.5 mm |
| Weight | 0.036 kg |
| Range Of Product | Harmony XB4 |
| Mounting Diameter | 22.5 mm |
| Product Or Component Type | head for push-button |
| Cap/Operator Or Lens Colour | black |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | chromium plated metal |
| Device Short Name | ZB4 |
