ZB4BA2TQ

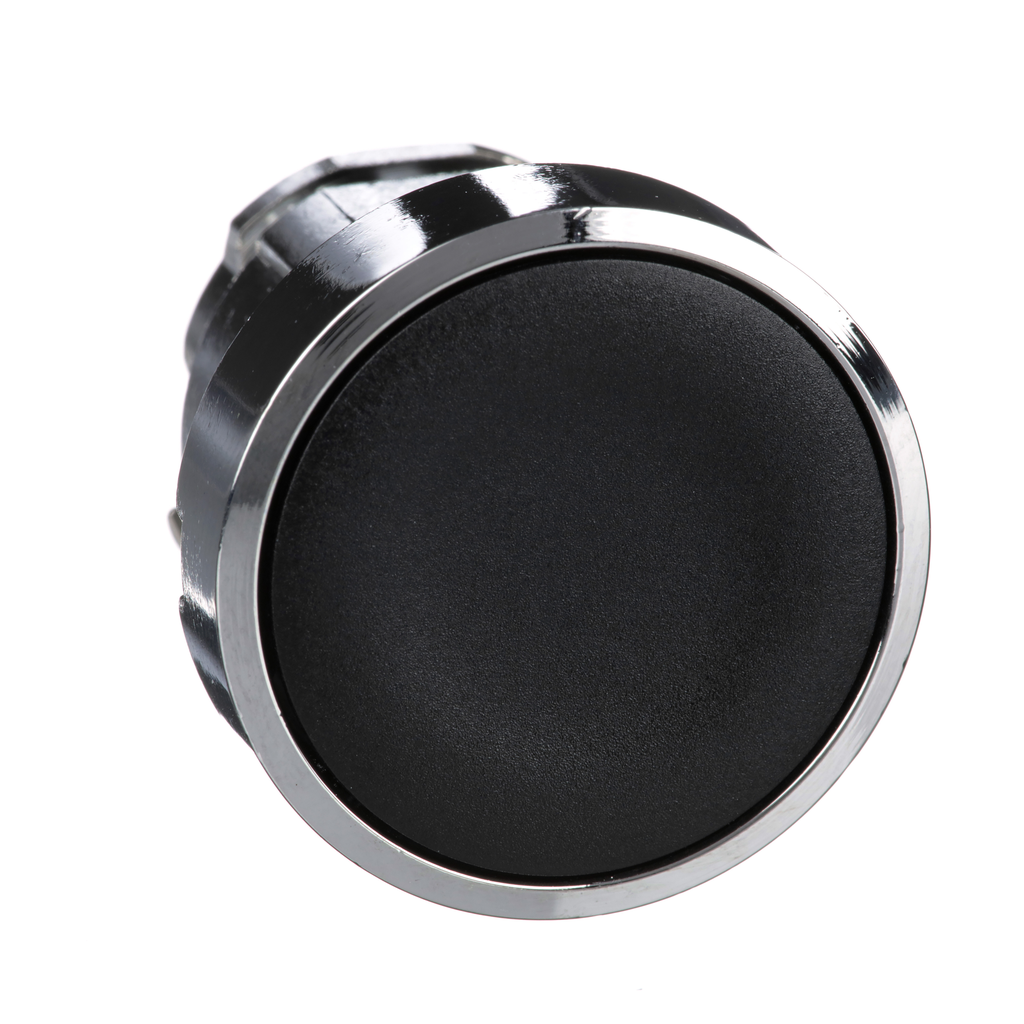

Head for non illuminated push button, Harmony XB4, metal, black flush, 22mm, spring return, unmarked, set of 100
This button head provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly It is sold by 100 units High performance International standards & certifications ( Marine certification, IP66)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK06 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class I IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308035EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Electrical Composition Code |
|
| Cad Overall Height | 29 mm |
| Mechanical Durability | 10000000 cycles |
| Cad Overall Width | 29 mm |
| Cad Overall Depth | 28 mm |
| Country of Origin | France |
| Width | 29 mm |
| Height | 29 mm |
| Range Of Product | Harmony XB4 |
| Mounting Diameter | 22 mm |
| Type Of Operator | spring return |
| Product Or Component Type | head for non-illuminated push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Sale Per Indivisible Quantity | 100 |
| Bezel Material | chromium plated metal |
| Operator Profile | black flush, unmarked |
| Device Short Name | ZB4 |
