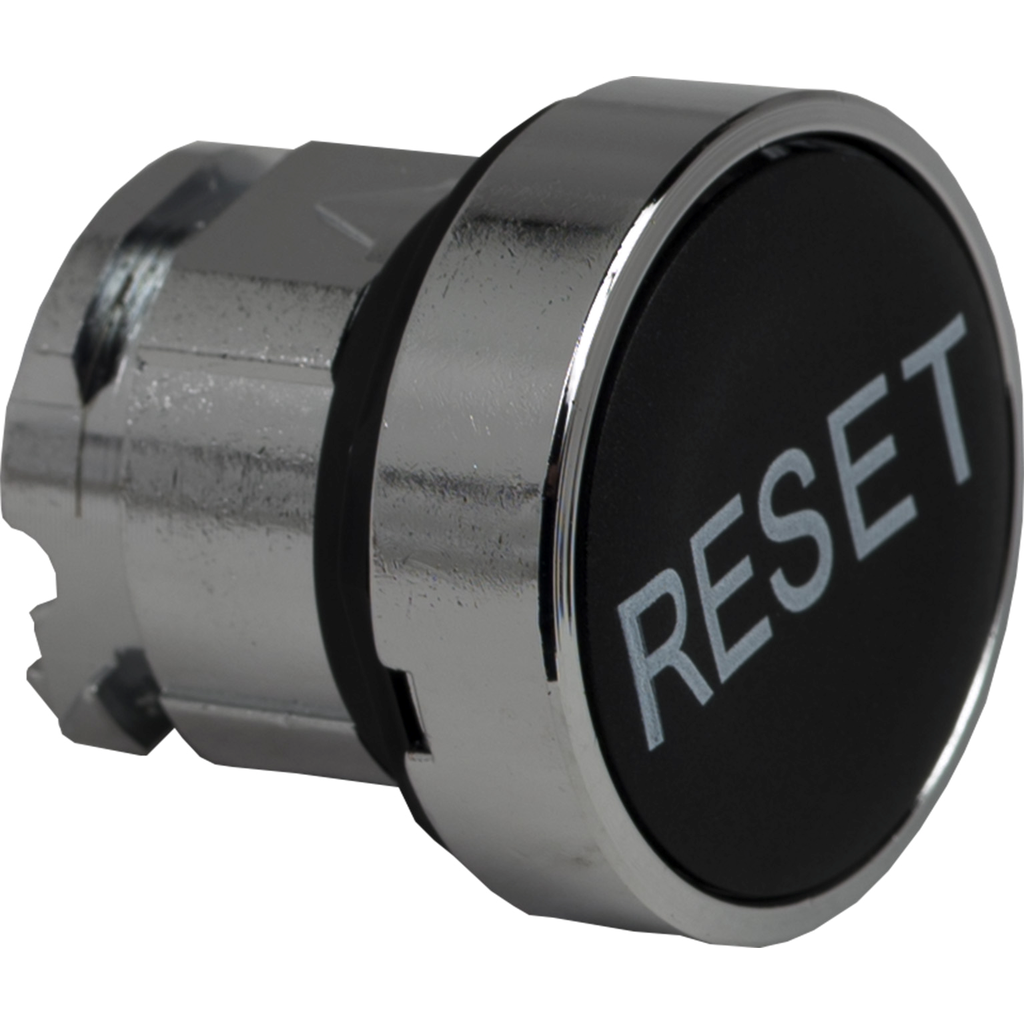

ZB4BA222 – Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, marked RESET
ZB4BA222
Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, marked RESET

This button head provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications ( Marine certification, IP66)

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • UL Listed
  • LROS (Lloyds register of shipping)
  • DNV
  • CSA
  • GL
  • BV
Ik Degree Of Protection IK06 conforming to IEC 50102
Ambient Air Temperature For Operation -40-70 °C
Standards
  • IEC 60947-5-5
  • IEC 60947-5-1
  • JIS C8201-5-1
  • CSA C22.2 No 14
  • IEC 60947-1
  • UL 508
  • IEC 60947-5-4
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP66 IEC 60529
  • IP67
  • IP69
  • IP69K
Ambient Air Temperature For Storage -40-70 °C
Overvoltage Category class I IEC 60536
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Protective Treatment TH
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2308035EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Circularity Profile ENVEOLI2308035EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Mechanical Durability 10000000 cycles
Country of Origin United States
Range Of Product Harmony XB4
Mounting Diameter 22.5 mm
Product Or Component Type head for non-illuminated push-button
Shape Of Signaling Unit Head round
Head Type standard
Sale Per Indivisible Quantity 1
Operator Profile flush, RESET
Device Short Name ZB4
