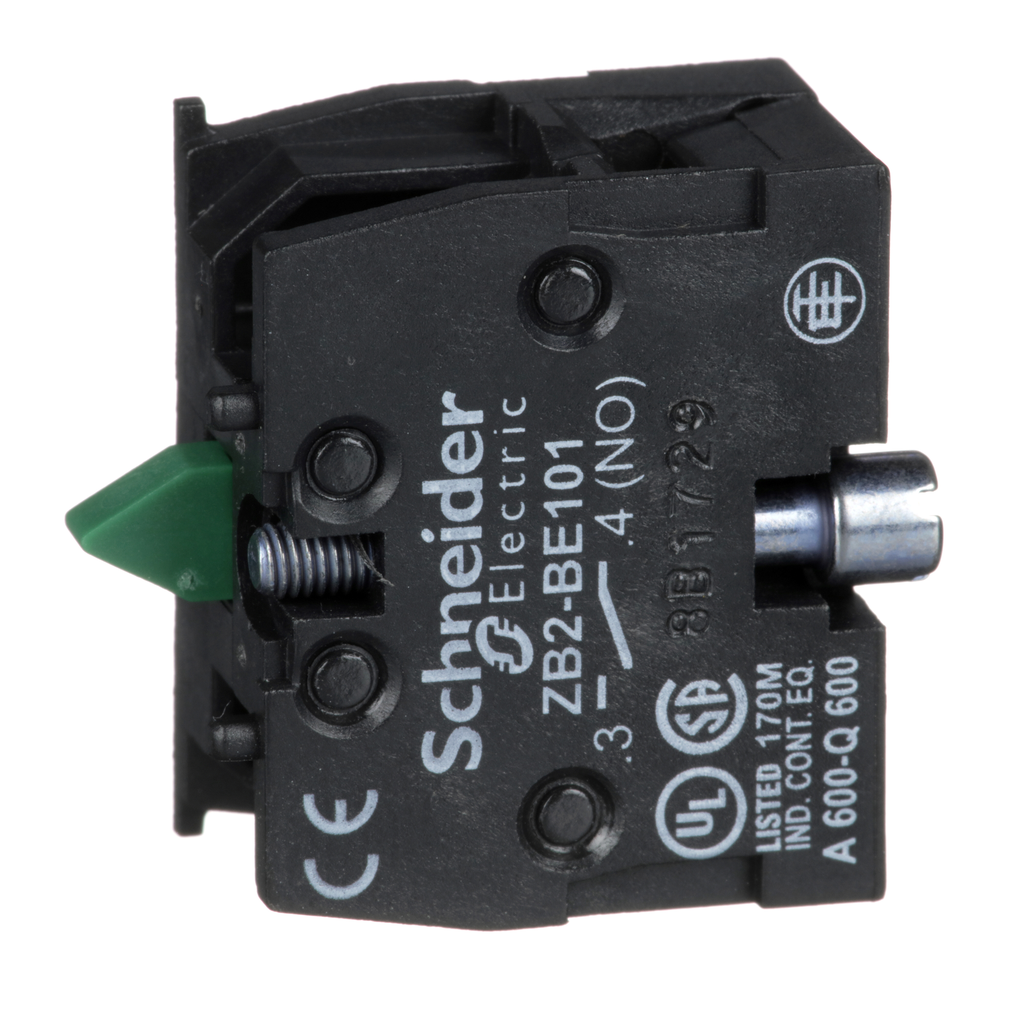

ZB2BE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal

ZB2BE101

Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Mounting Of Block	front mounting
Range Of Product	Harmony XAC
Contact Block Type	single
Product Or Component Type	contact block
Contact Block Application	single speed
Component Name	ZB2
Contacts Type And Composition	1 NO
Contact Operation	slow-break
Type Of Operator	spring return
Electrical Circuit Type	control circuit
Product Compatibility	XB4 XAPS2 XACA XB5
Warranty	18 months
Operating Force	13-15 N
Terminals Description Iso N°1	(13-14)NO
Maximum Resistance Across Terminals	25 MOhm
[Ithe] Conventional Enclosed Thermal Current	10 A
Short-Circuit Protection	10 A fuse protection cartridge gG (gl)
Net Weight	0.02 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Connections - Terminals	screw clamps terminals, 1 x 2.5 mm² with or without cable end screw clamps terminals, 2 x 1.5 mm² with or without cable end
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Mechanical Durability	1000000 cycles
Contact Code Designation	A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A
Rated Operational Power In W	40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1 48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1 65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	-25-70 °C
Standards	EN/IEC 60947-5-1 UL 508 EN/IEC 60204-32 CSA C22.2 No 14
Vibration Resistance	15 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Electrical Shock Protection Class	class II IEC 61140
