Remote control, Harmony eXLhoist, compact, LED, 6 motion push buttons, 2 auxiliary push buttons

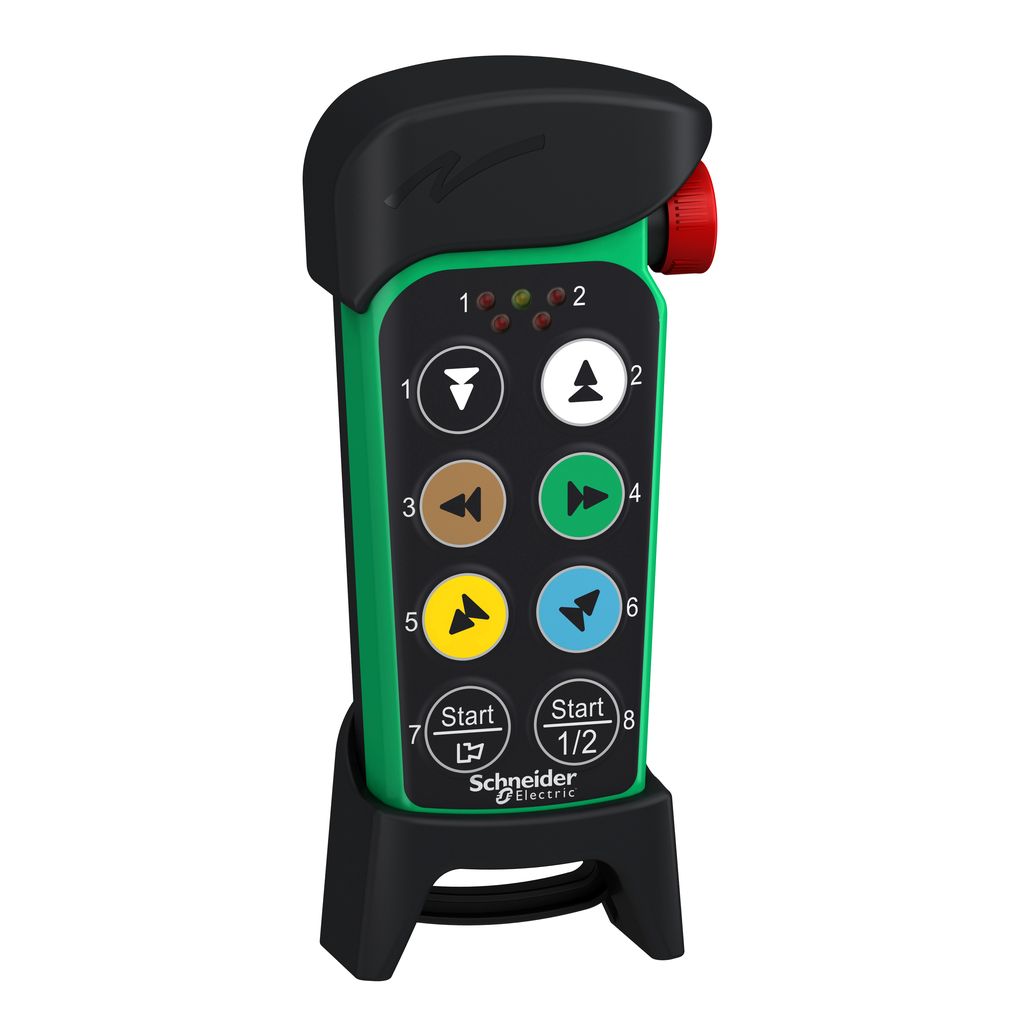

This Harmony eXLhoist / XAR black remote control (transmitter) has 2 configurable auxiliary push buttons with 6 configurable motion push buttons. It has 5 LEDs with rechargeable battery. This remote control (transmitter) with LEDs is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 2 configurable auxiliary push buttons and can operate at a distance of 50m. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 85 mm |
| Height | 193 mm |
| Weight | 0.3 kg |
| Range Of Product | Harmony eXLhoist |
| Product Or Component Type | hand-held remote control |
| Control Button Type |
|
| Device Short Name | ZART |
| Height | 193 mm |
| Transmission Frequency | 2.4 GHz |
| Autonomy |
|
| Operating Distance | 50 m |
| Response Time | < 500 ms simplex |
| Net Weight | 0.3 kg |
| Charging Time |
|
| Communication Network Type | wireless Zigbee |
| Maximum Sensing Distance | 100 m in free field |
| Material |
|
| Mechanical Durability | 1000000 cycles |
| Display Type | 5 LEDs |
| Width | 85 mm |
| Depth | 43 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications | CE |
| Ambient Air Temperature For Operation | -20-55 °C |
| Storage Altitude | 0-3000 m |
| Radio Agreement |
|
| Ip Degree Of Protection | IP65 |
| Ambient Air Temperature For Storage | -20-45 °C |
| Relative Humidity | 0-95 % -20-60 °C operating |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
Documents
- ZART8LS / ZARB10WS. Transmitter (8 pushbuttons) and Receiver small size, Instruction Sheet - PHA1791602_01 (pdf)
- Spec Sheet
- Catalog Harmony eXLhoist - Wireless industrial radio remote control English 04/2021 - Catalog+Harmony+eXLhoist+-+Wireless+industrial+radio+remote+control (pdf)
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Push Buttons: Section 19 - Digest 179 (2024) - Push-Buttons-Digest-Catalog-0100CT2401-SEC-19 (pdf)
