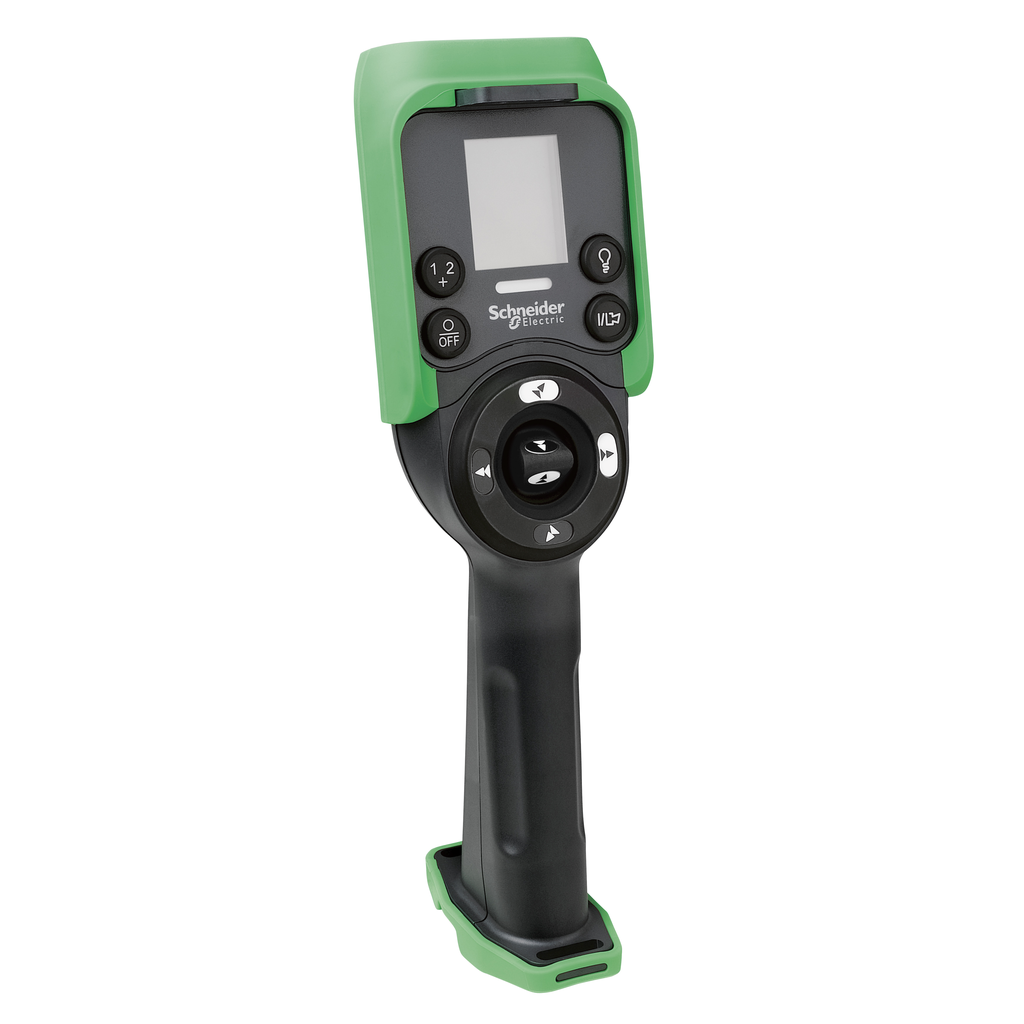

ZART8DM
Remote control, Harmony eXLhoist, standard, display, 6 motion push buttons, 2 auxiliary push buttons, MBC (tandem)
Specifications
| Mechanical Robustness | free fall resistance 4.5 m IEC 60068-2-27 |
|---|---|
| Height | 340 mm |
| Transmission Frequency | 2.4 GHz |
| Autonomy | 30 h |
| Operating Distance | 50 m |
| Response Time | < 300 ms full duplex |
| Net Weight | 0.65 kg |
| Charging Time | 900 s |
| Communication Network Type | wireless bluetooth low energy |
| Function Available |
|
| Maximum Sensing Distance | 100 m in free field |
| Service Life | 5 year(s) |
| Material |
|
| Mechanical Durability | 5000000 cycles |
| Device Application |
|
| Display Type | LCD display 34 x 42 mm |
| Width | 100 mm |
| Depth | 90 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-60 °C |
| Storage Altitude | 0-3000 m |
| Vibration Resistance | 0.075 mm 10-55 Hz)IEC 60068-2-6 |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Radio Agreement |
|
| Ip Degree Of Protection | IP65 |
| Ambient Air Temperature For Storage | -20-45 °C |
| Relative Humidity | 0-95 % -20-60 °C operating |
| Nema Degree Of Protection | NEMA 4 |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Country of Origin | France |
| Width | 100 mm |
| Height | 340 mm |
| Weight | 0.65 kg |
| Range Of Product | Harmony eXLhoist |
| Product Or Component Type | hand-held remote control |
| Control Button Type |
|
| Device Short Name | ZART |
